Installing Central Locking Switch

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Only the central locking switches on the rear switch panels can be removed and installed.

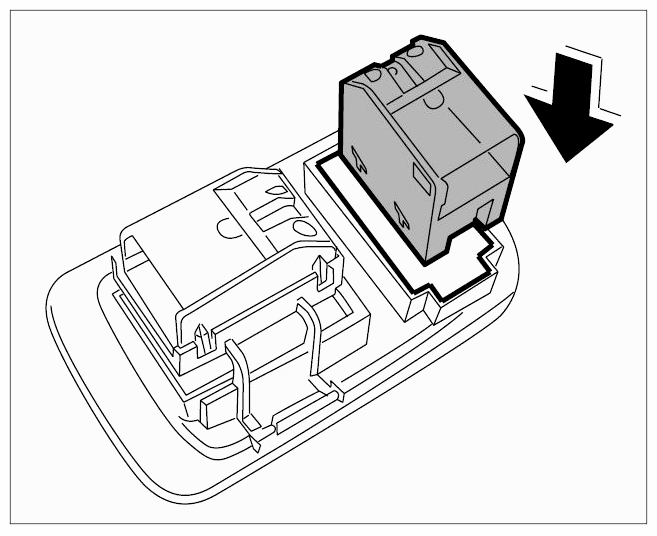

Insert the switch in the switch panel until it clicks into place.

Fig 1: Installing Central Locking Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

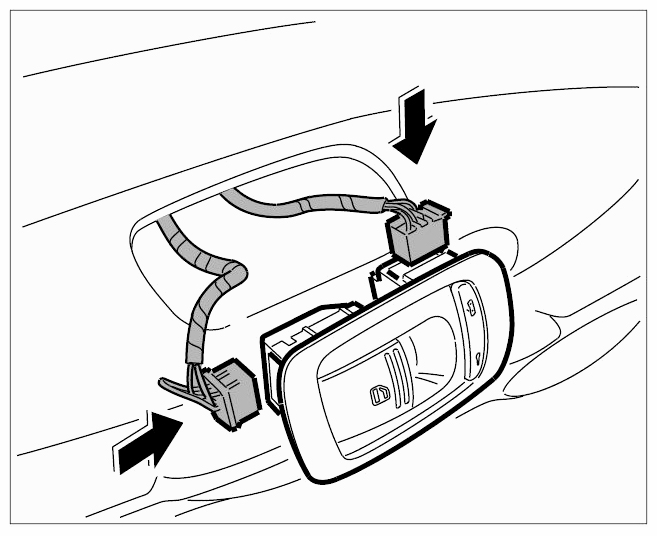

Insert the electrical plug connection in the power window switch until it clicks into place.

Fig 2: Inserting Power Window Switch Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

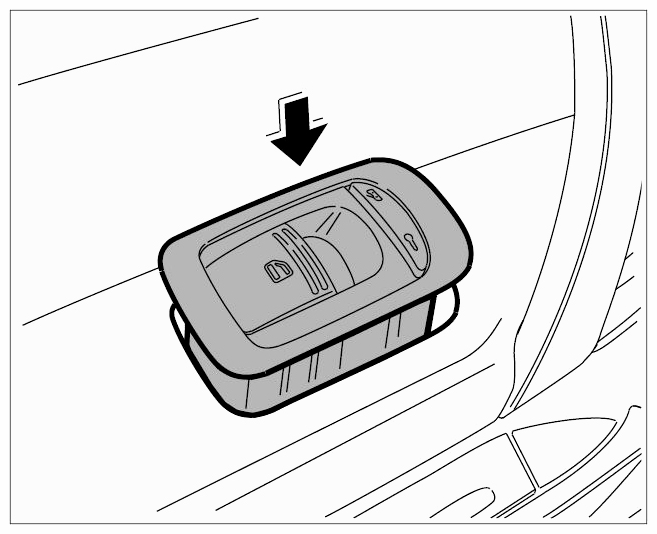

Position the power window switch in the door trim panel and press it in.

Fig 3: Installing Power Window Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Make sure that the power window switch is positioned evenly on the gap.
