Removing Front Door Hinge

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

To remove and adjust the upper door hinges, the instrument panel and the carrier for the instrument panel must be removed.

Remove insulation mat on the inside of the A post.

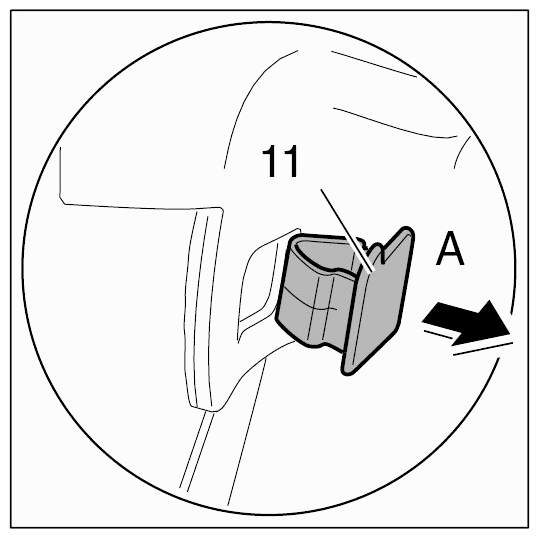

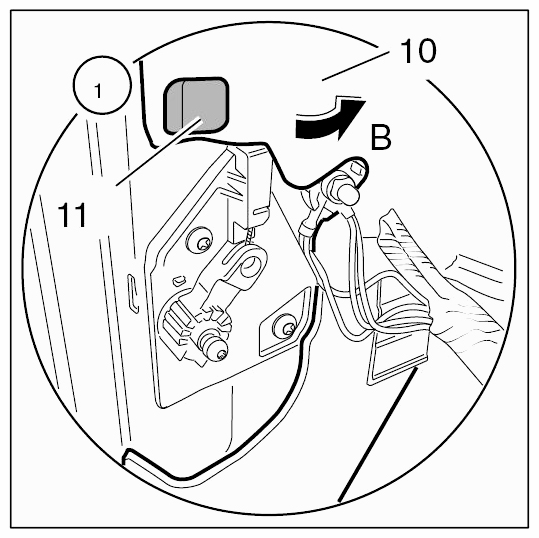

1. 1.1. Unclip fastening clips -11- (-arrow A- ) and push insulating mat -10- aside (-arrow B- ).

  Fig 1: Removing Insulation Mat
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 2: Removing Mat Fastening Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove upper door hinge on the body.
Information

The rear fastening screw is fitted from inside the vehicle.
1. 2.1.

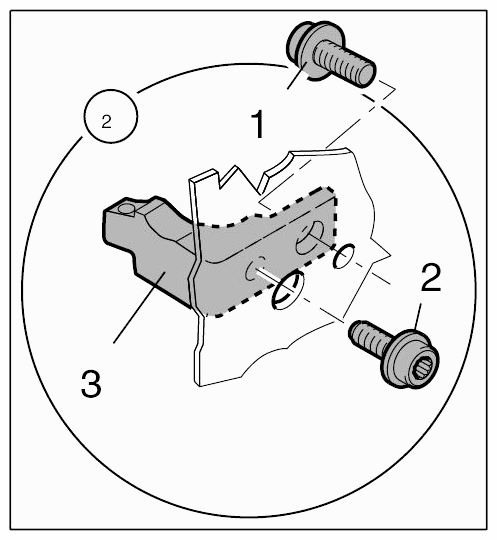

2. 2.2. Unscrew the fastening screws -1, 2- for the upper door hinge -3- using the special tool and remove. Multiple-tooth socket-wrench insert, M8 Nr.29
3. 2.3. Remove upper door hinge -3- .

  Fig 3: Identifying Upper Door Hinge Mounting Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove lower door hinge on the body.
Information

The rear fastening screw is fitted from inside the vehicle.

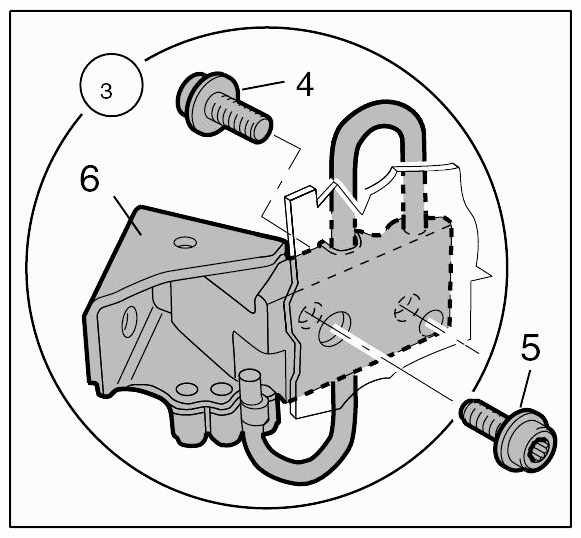

1. 3.1. Unscrew the fastening screws -4, 5- for the lower door hinge -6- using the special tool and remove. Multiple-tooth socket-wrench insert, M8 Nr.29
2. 3.2. Remove lower door hinge -6- .

  Fig 4: Identifying Upper Door Hinge Mounting Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove lower door hinge on the door.

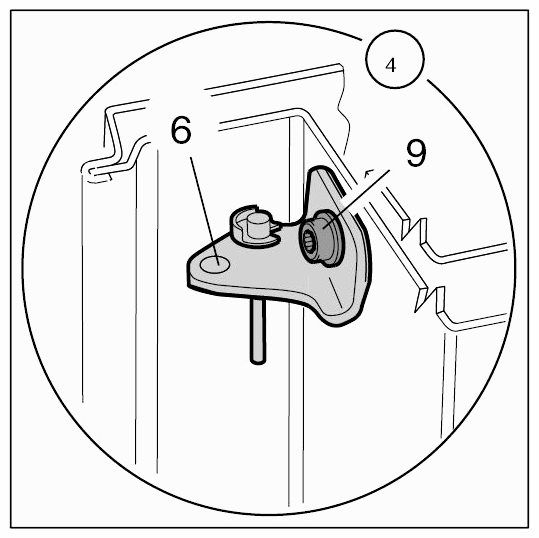

1. 4.1. Unscrew the fastening screw -9- for the lower door hinge -6- using the special tool and remove. Multiple-tooth socket-wrench insert, M8 Nr.29
2. 4.2. Remove lower door hinge -6- .

  Fig 5: Identifying Lower Door Hinge Mounting Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

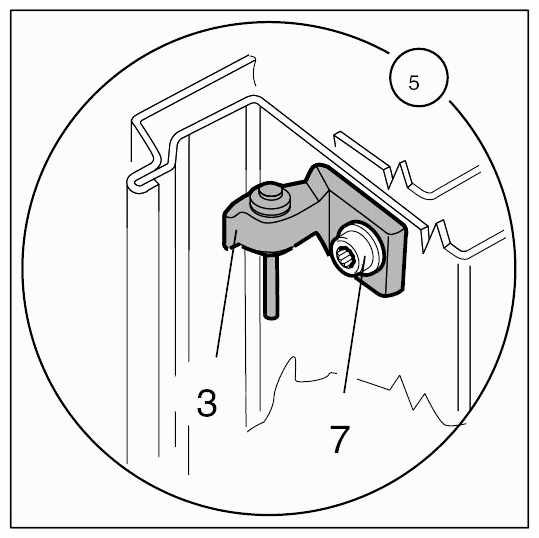

Removing upper door hinge at the door
1. 5.1. Unscrew the fastening screw -7- for the upper door hinge -3- using the special tool and remove. Multiple-tooth socket-wrench insert, M8 Nr.29
2. 5.2. Remove upper door hinge -3- .

  Fig 6: Identifying Upper Door Hinge Mounting Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
