Installing Front Door Hinge

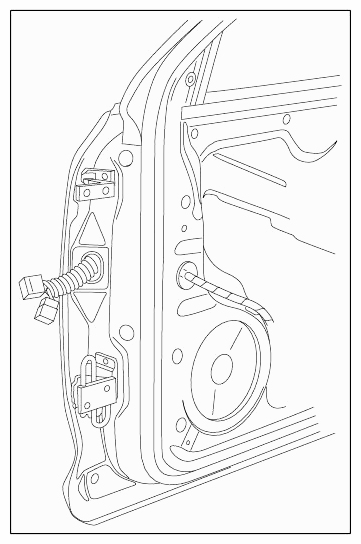

Fig 1: Identifying Front Door Hinge

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Always use new fastening screws and nuts following removal.

→ Observe specified tightening torques.

→ Carry out a visual inspection of all re-used parts.

Information

Only tighten the fastening screws on the door hinges hand-tight from the inside until the doors are set correctly.

1. Fit the upper door hinge on the door.

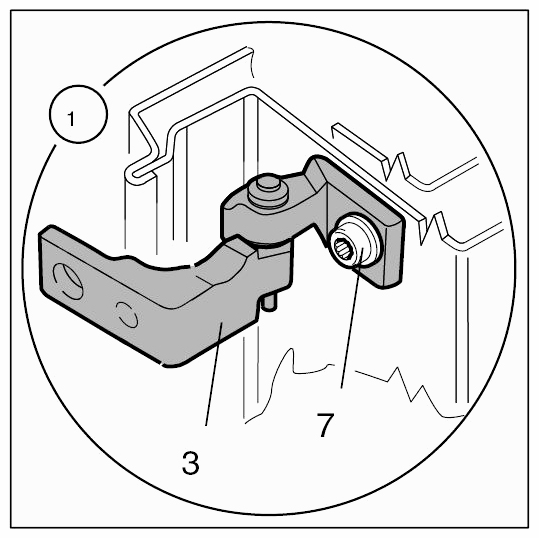

   1. 1.1. Position upper door hinge -3-  on the door and secure by screwing in the fastening screw -7-  . The fastening screw must provisionally be tightened by hand only. → Tightening torque: <10 Nm
      Fig 2: Identifying Upper Door Hinge Mounting Screw

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Fit lower door hinge on door.

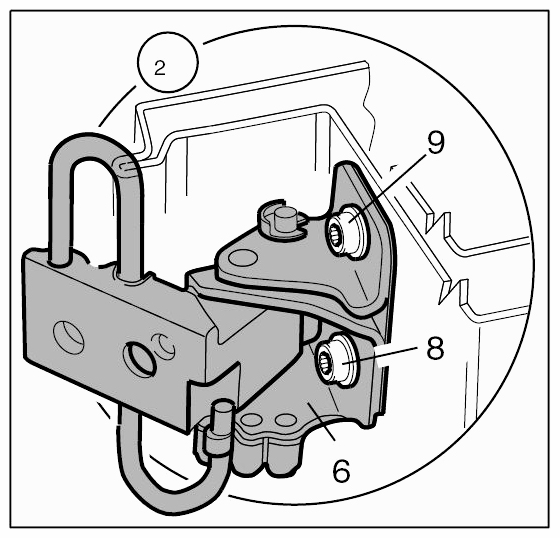

   1. 2.1. Position lower door hinge -6-  on the door and secure to the door by screwing in the fastening screws -8, 9-  .

      The fastening screws must provisionally be tightened by hand only. → Tightening torque: <10 Nm

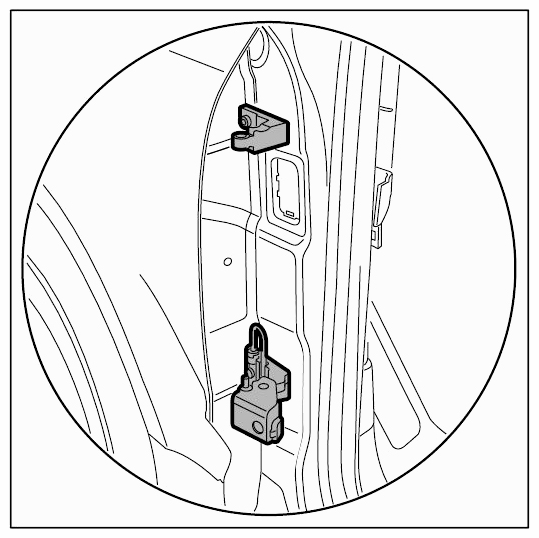

      Fig 3: Identifying Lower Door Hinge And Mounting Bolts

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      Fig 4: Identifying Lower Door Hinge And Mounting Bolts

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

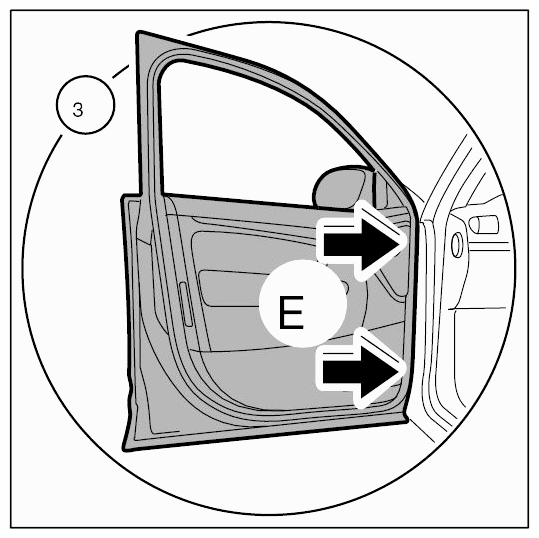

3. Insert the front door with hinge.
   1. 3.1. Insert front door using the pre-mounted hinges -arrows E-  and carefully close it completely.
      NOTE: When closing the door, make sure that the electric push-on connectors are not trapped or damaged. If necessary, insert connector and press in grommet.
      Fig 5: Inserting Front Door With Hinge

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Secure the upper door hinge.

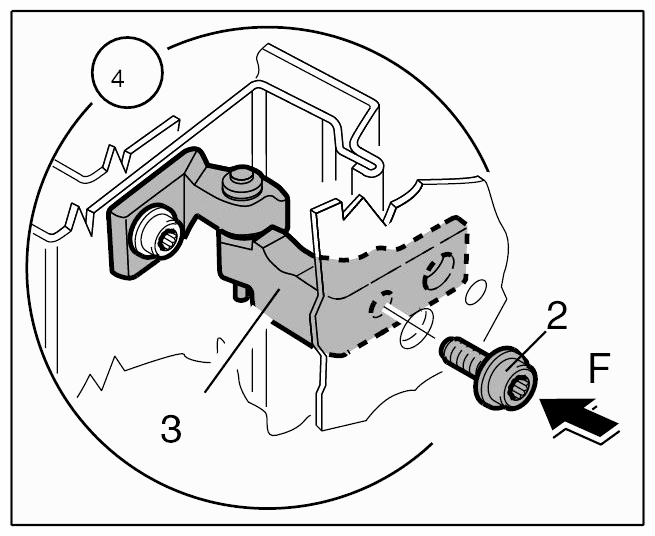

   1. 4.1. Secure the upper door hinge -3-  by screwing in the fastening screw -2-  from inside the vehicle -arrow F-  .

      The fastening screw must provisionally be tightened by hand only. → Tightening torque: <10 Nm

      Fig 6: Installing Upper Door Hinge Mounting Screw

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Secure the lower door hinge.

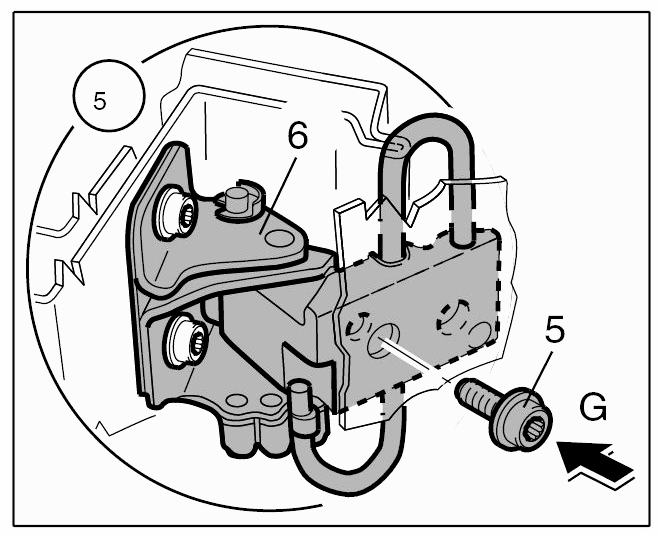

   1. 5.1. Secure the lower door hinge -6-  by screwing in the fastening screw -5-  from inside the vehicle -arrow G-  .

      The fastening screw must provisionally be tightened by hand only. → Tightening torque: <10 Nm

      Fig 7: Installing Lower Door Hinge Mounting Screw

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Set the upper door hinge and tighten from the inside of the vehicle.
   1. 6.1. Position front door correctly using the upper door hinge -3-  .

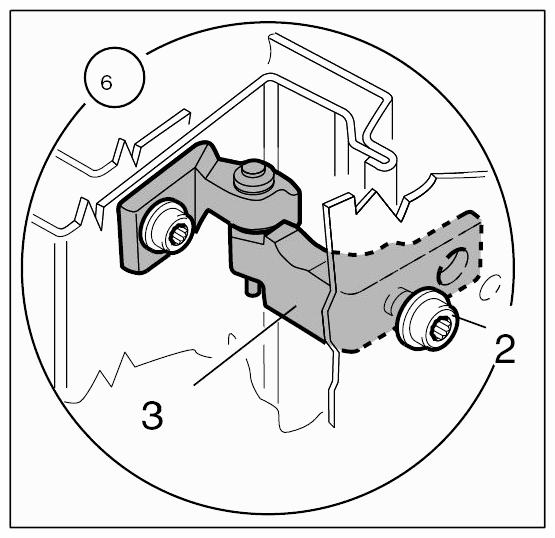

   2. 6.2. Screw in the fastening screw -2-  from the inside of the vehicle and to the specified tightening torque using the special tool, and then tighten to the torque angle. Multiple-tooth socket wrench insert, M8 Nr.29  → Tightening torque: 20 Nm+/-3 Nm  → Tightening torque: +90°
      Fig 8: Identifying Upper Door Hinge Mounting Bolts

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Set the lower door hinge and tighten from the inside of the vehicle
   1. 7.1. Position front door correctly using the lower door hinge -6-  .

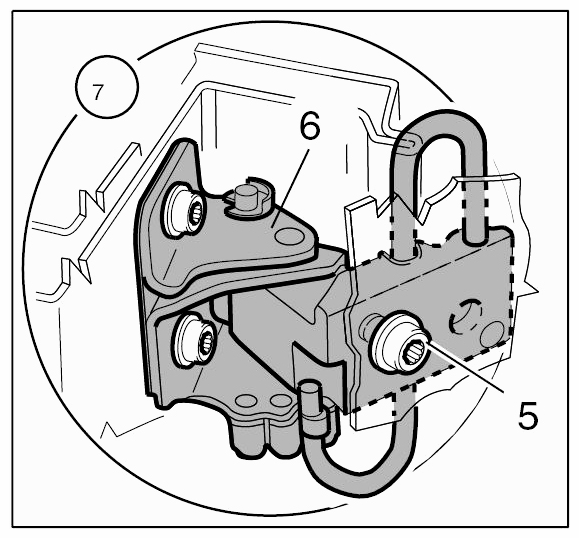

   2. 7.2. Screw in the fastening screw -5-  from the inside of the vehicle and to the specified tightening torque using the special tool, and then tighten to the torque angle. Multiple-tooth socket wrench insert, M8 Nr.29  → Tightening torque: 20 Nm+/-3 Nm  → Tightening torque: +90°
      Fig 9: Identifying Lower Door Hinge Mounting Bolts

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Remove front door.
   1. 8.1. The front doors must be removed again to allow access to the fastening screws -1-  and -4-  from the outside of the vehicle.

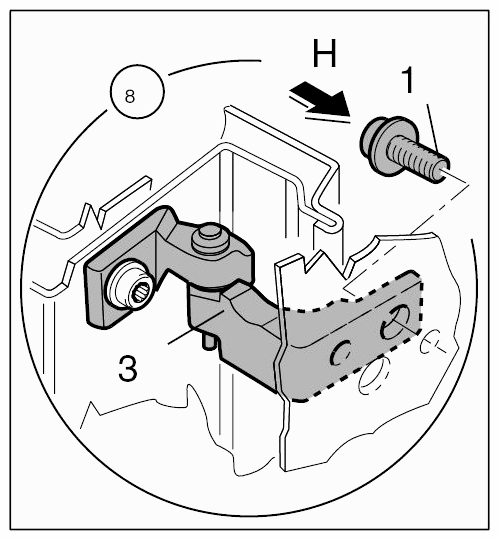

9. Tighten the upper door hinge from the outside of the vehicle.
   1. 9.1. Screw in the fastening screw -1-  from the outside of the vehicle -arrow H-  and to the specified tightening torque using the special tool, and then tighten to the torque angle. Multiple-tooth socket wrench insert, M8 Nr.29  → Tightening torque: 20 Nm+/-3 Nm  → Tightening torque: +90°
      Fig 10: Identifying Upper Door Hinge Mounting Bolts (From Outside Of Vehicle)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

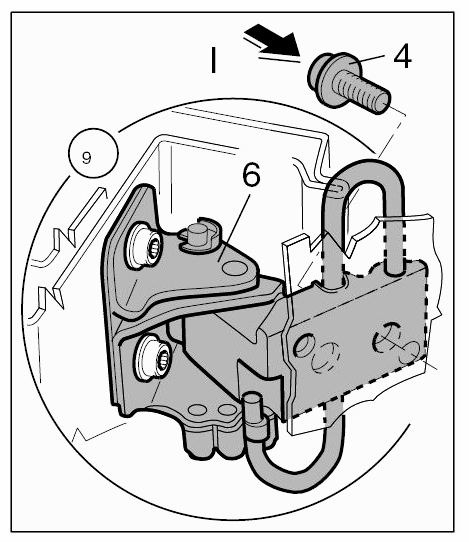

10. Tighten the lower door hinge from the outside of the vehicle.
    1. 10.1. Screw in the fastening screw -4-  from the outside of the vehicle -arrow I-  and to the specified tightening torque using the special tool, and then tighten to the torque angle. Multiple-tooth socket wrench insert, M8 Nr.29  → Tightening torque: 20 Nm+/-3 Nm  → Tightening torque: +90°
       Fig 11: Identifying Lower Door Hinge Mounting Bolts (From Outside Of Vehicle)

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.
