Disassembling Front Door

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

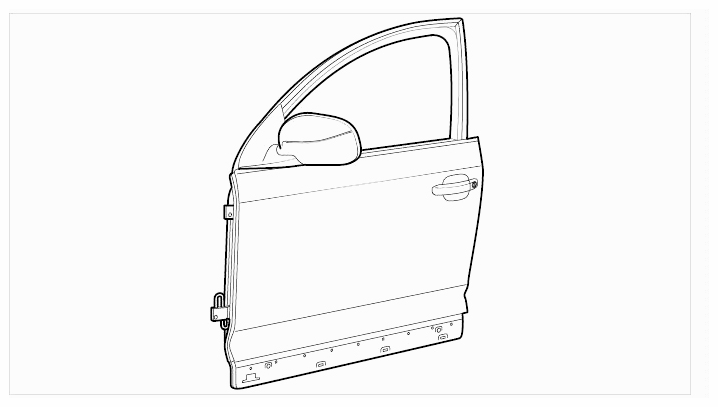

Fig 1: Identifying Front Door

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing door handle base plate

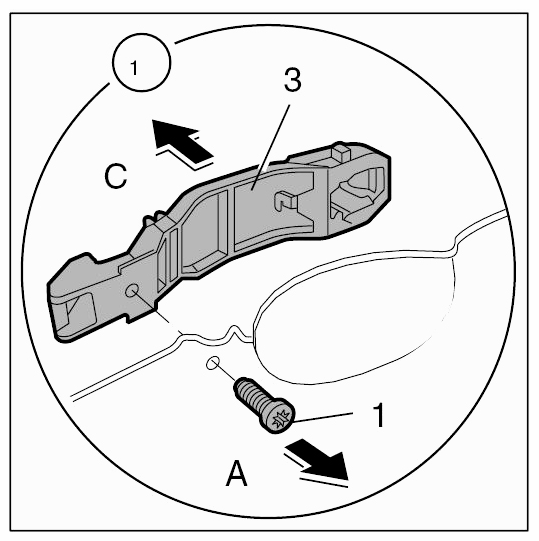

1. 1.1. Unscrew fastening screw for securing door handle base plate -1- and remove it (-arrow A- ).

  Fig 2: Securing Door Handle Base Plate
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

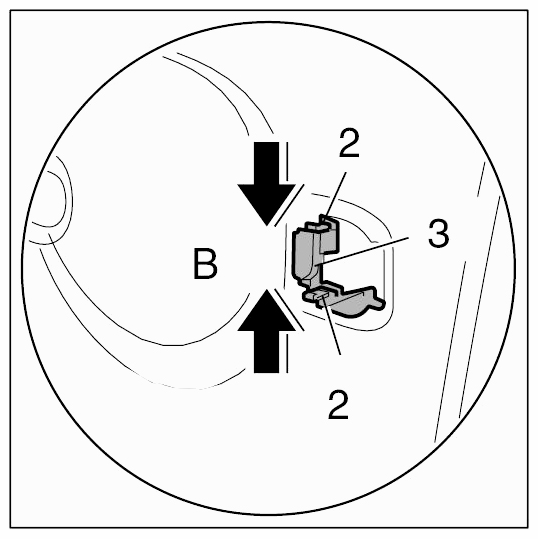

2. 1.2. Press together the fastening clips -2- for the door handle base plate -3- (-arrow B- ) and remove door handle base plate to the rear (-arrow C- ).

  Fig 3: Removing Door Handle Base Plate To Rear
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 4: Removing Door Handle Base Plate Mounting Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

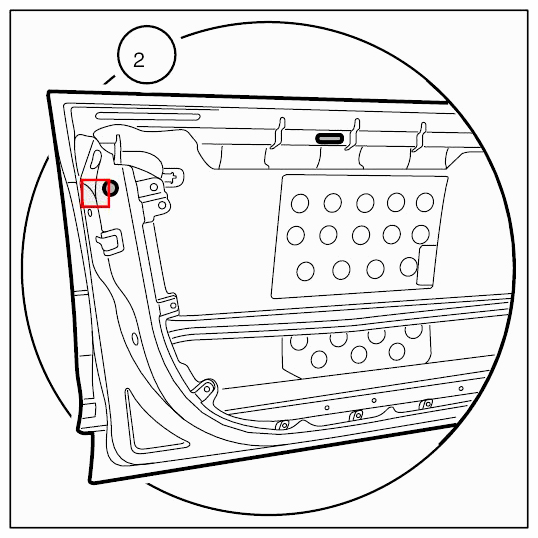

  Fig 5: Identifying Rubber Pads And Rubber Sleeve
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

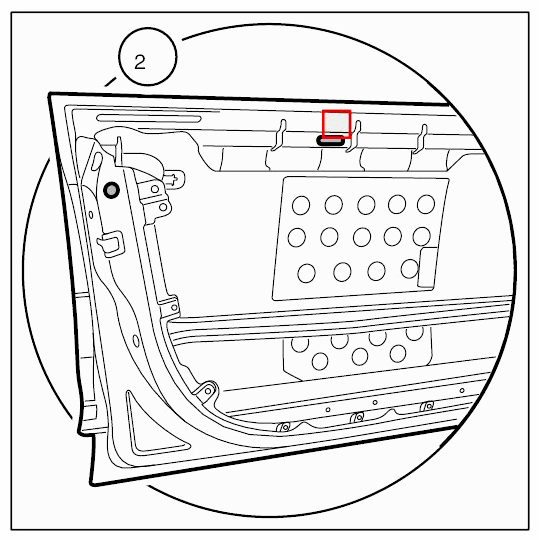

  Fig 6: Identifying Rubber Pads And Rubber Sleeve
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Removing the rubber pads and rubber sleeve

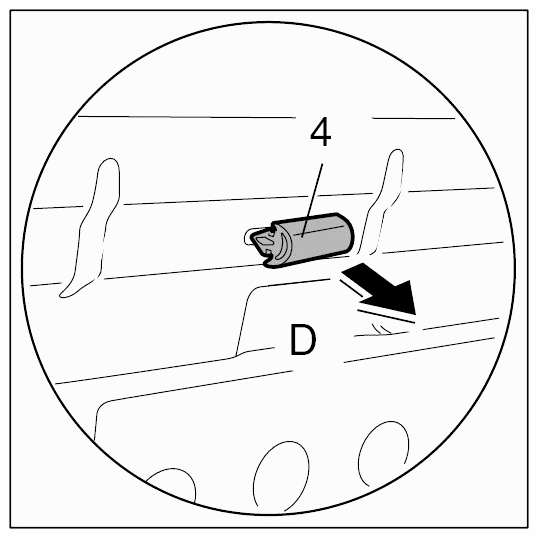

1. 2.1. Lever the rubber pads -4- out towards the rear using a plastic wedge (-arrow D- ).

  Fig 7: Removing Rubber Pads And Rubber Sleeve Using Plastic Wedge
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

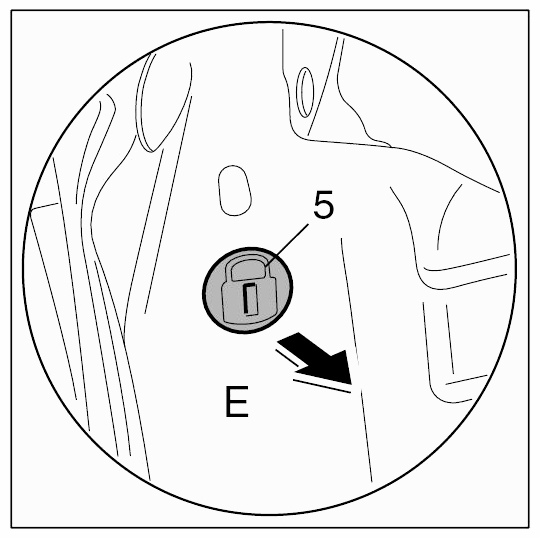

2. 2.2. Remove the rubber sleeve -5- by pulling it towards the rear (-arrow E- ).

  Fig 8: Removing Rubber Sleeve
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
