Assembling Front Door

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

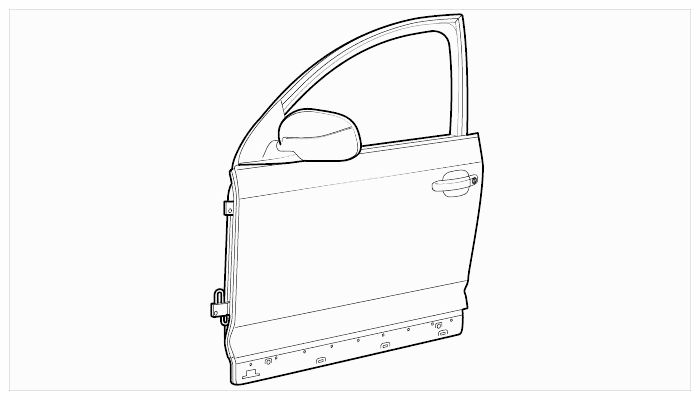

Fig 1: Identifying Front Door

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

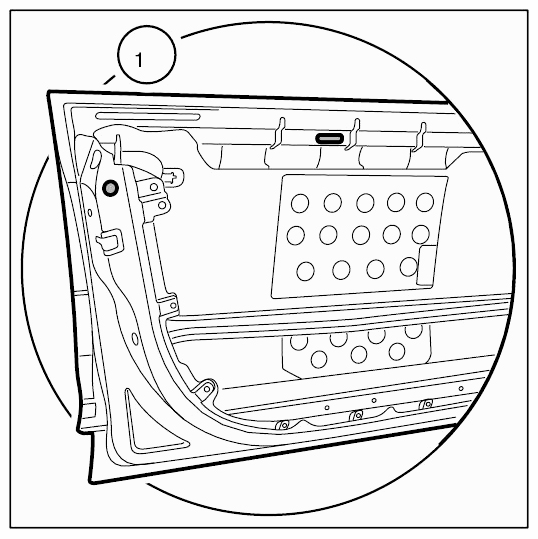

Installing the rubber sleeve and rubber pads

Fig 2: Identifying Rubber Sleeve And Rubber Pads
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

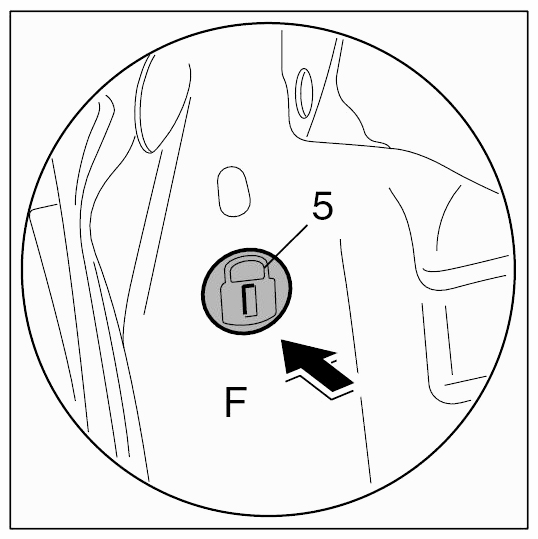

1. 1.1. Insert rubber sleeve -5- into the existing opening -Arrow F- .

  Fig 3: Inserting Rubber Sleeve Into Existing Opening
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

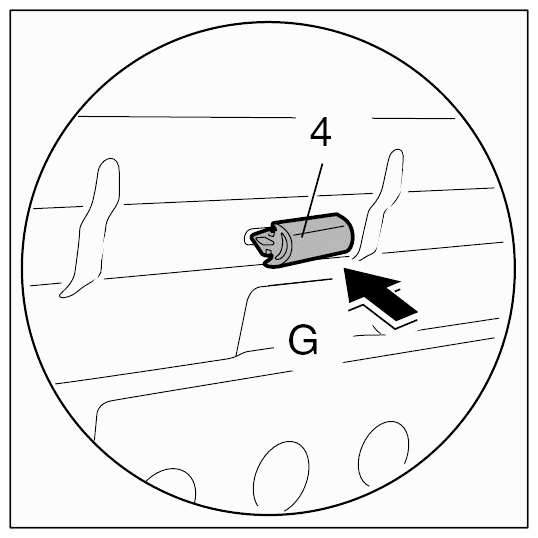

2. 1.2. Insert rubber buffer -4- into the existing opening -Arrow G- . When doing this, make sure the retainining lips are fitted correctly.

  Fig 4: Inserting Rubber Buffer Into Existing Opening
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Installing the door handle base plate

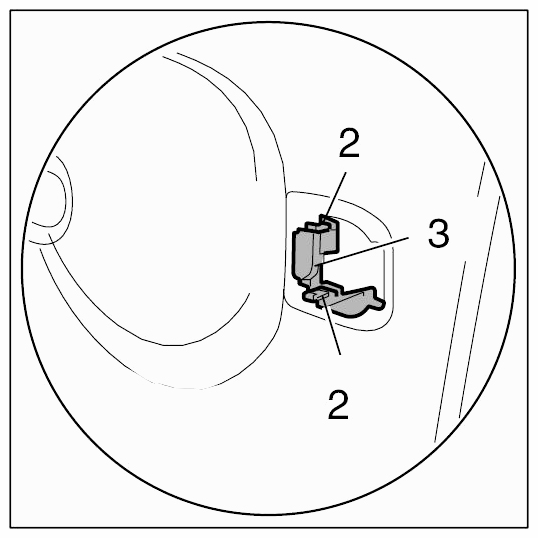

1. 2.1. Insert the door handle base plate -3- from the rear (-Arrow H- ). When doing this, make sure the fastening clips -2- click into place correctly.

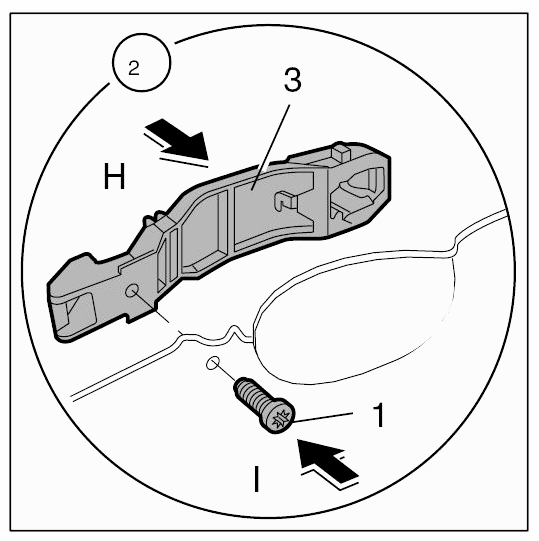

2. 2.2. Screw in fastening screw for door handle base plate -1- -Arrow I- and tighten to specified torque → Tightening torque: 4.5 Nm (3.5 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.) .

  Fig 5: Tightening Door Handle Base Plate Mounting Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 6: Identifying Door Handle Base Plate Mounting Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
