Technical Values: Overview
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Mirror surround to roof trim strip (C) | Gap dimension | 3 mm | |||
| Door window to trim strip and outer side section (F) | Gap dimension | 5 mm | |||
| Door cover to outer door panel (H) | Gap dimension | 1 mm | |||
| Door cover to bottom of outer door panel (J) | Gap dimension | 5 mm | |||
| Front door to front wing (N) | Front door only lowered (max. 1 mm) | Gap dimension | 4.5 mm | +/-0.5 mm | |
| Front door to rear door (K) | Rear door only lowered (max. 1 mm) | Gap dimension | 4.5 mm | +/-0.5 mm | |
| Front door trim strip to rear door trim strip (P) | Rear door only lowered | Gap dimension | 0 mm | -1 mm | |
| Gap dimension from front door frame to B-pillar trim panel (R) | Gap dimension | 0.8 mm | +/-0.5 mm | ||

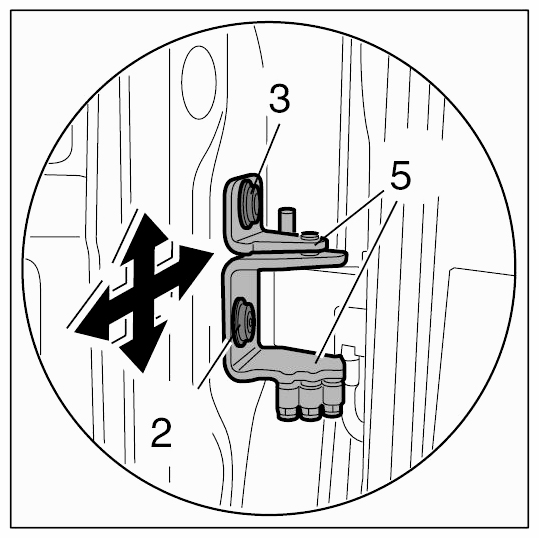

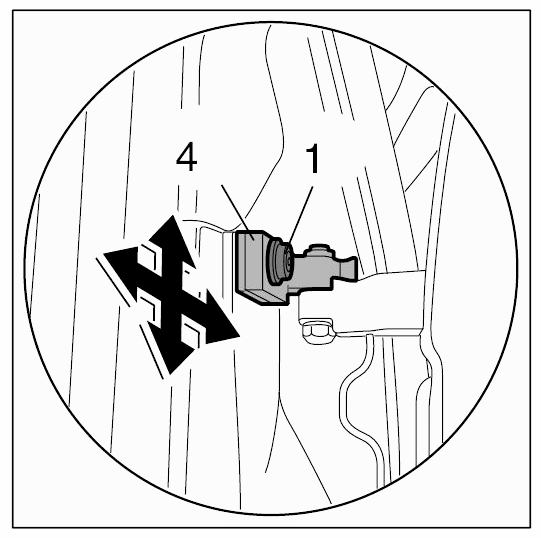

| Fastening screws, upper and lower door hinge to door | Thread M8, Item -1-, -2- and -3- | Tightening torque | 20 Nm (15 ftlb.) | +/-3 Nm (+/-2.0 ftlb.) | |
|
Tightening fastening screws to specified tightening torque |
|||||
| Fastening screws, upper and lower door hinge to door | Thread M8, Item -1-, -2- and -3- | Torque angle | 90° | ||
|
Tightening fastening screw to specified torque angle |
|||||

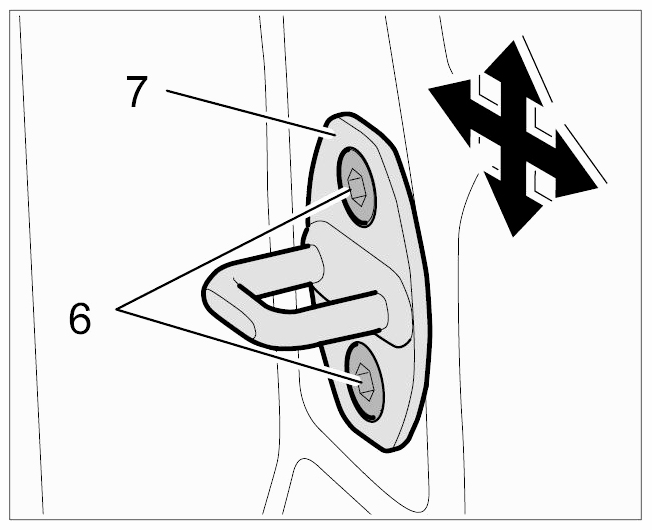

| Fastening screws, door lock striker to B-pillar | M8 thread, Item -7- | Tightening torque | 20 Nm (15 ftlb.) | +/-2 Nm (+/-1.5 ftlb.) | |
|
Moving door lock striker |
|||||
