Adjusting Front Door

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

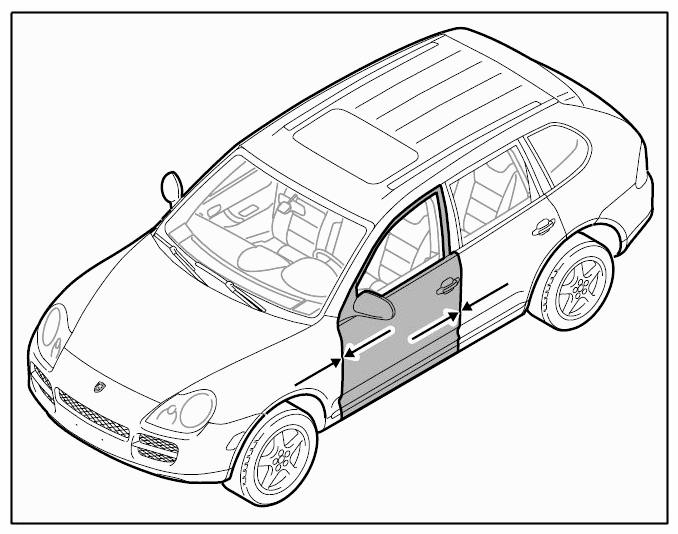

Fig 1: Identifying Front Door

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

WARNING: Incorrect handling of safety bolts

Danger of injury
Loss of torque

→ Always use new fastening screws and nuts following removal.

→ Observe specified tightening torques.

→ Carry out a visual inspection of all re-used parts.

Information

Only tighten the fastening screws on the door hinges hand-tight from the inside until the doors are set correctly.

Information

If the door is fitted without a sub-frame, the rear edge of the outer door panel must be installed higher with respect to the rear door by the dimension -P- (approx. 2 mm). The door is lowered by approximately 2 mm when the door sub-frame is installed.

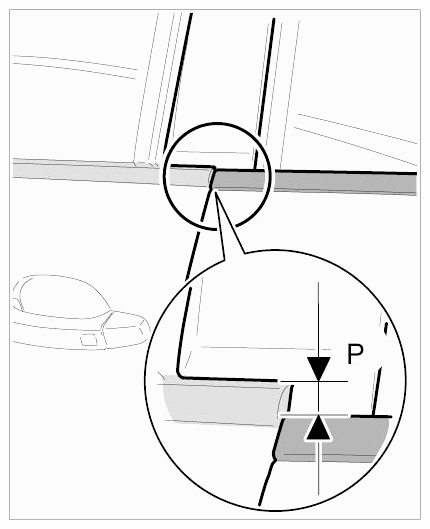

Fig 2: Identifying Gap Dimension From Front Door Trim Strip To Rear Door Trim Strip

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adjusting front door
1. 1.1. Remove door lock striker.
  Unscrew fastening screws -6- and take off door lock striker.

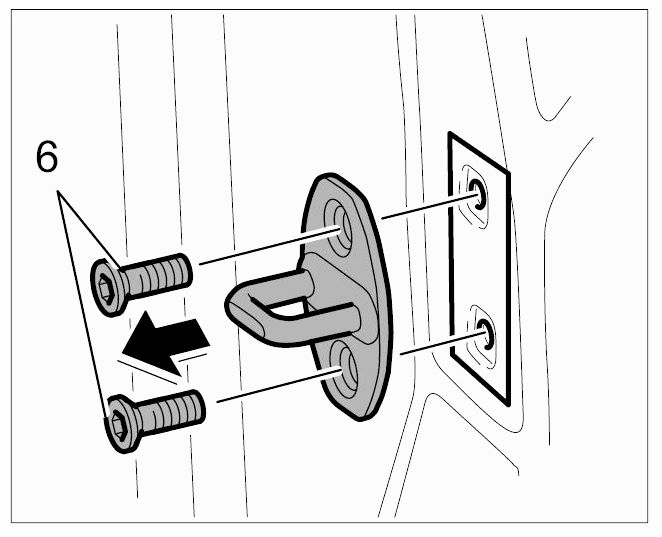

  Fig 3: Removing Door Lock Striker
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Unscrew fastening screws -1- , -2- and -3- and replace them. The new screws must initially be tightened by hand only (max. 10 Nm (7.5 ftlb.)).
3. 1.3. Set the contour with respect to the wing by moving the door both vertically and horizontally at the door-side hinge halves -4- , -5- .

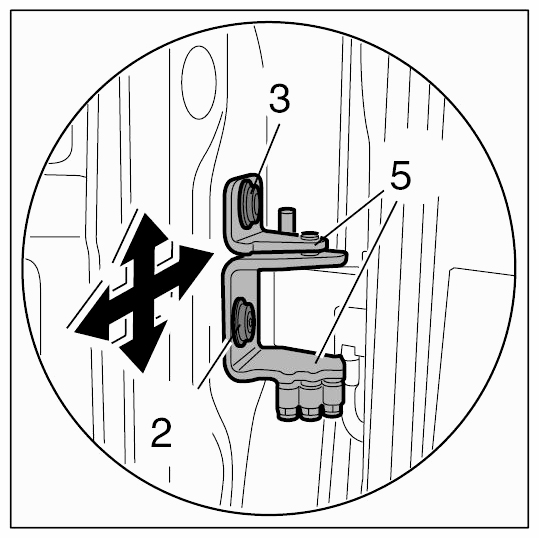

  Fig 4: Identifying Door Mounting Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

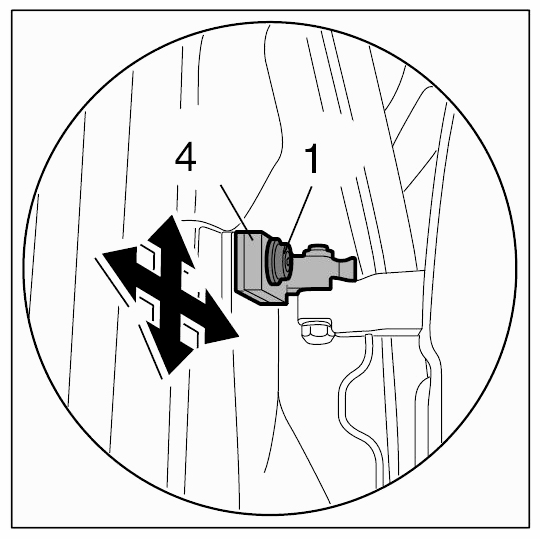

  Fig 5: Adjusting Door Mounting Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Replacing fastening screws

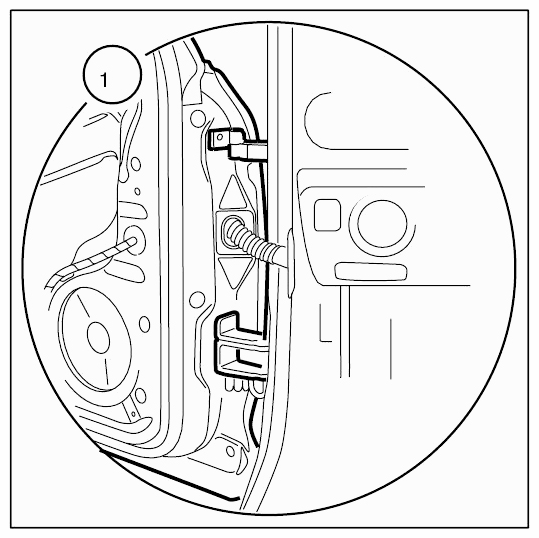

  Fig 6: Adjusting Fastening Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting rear door

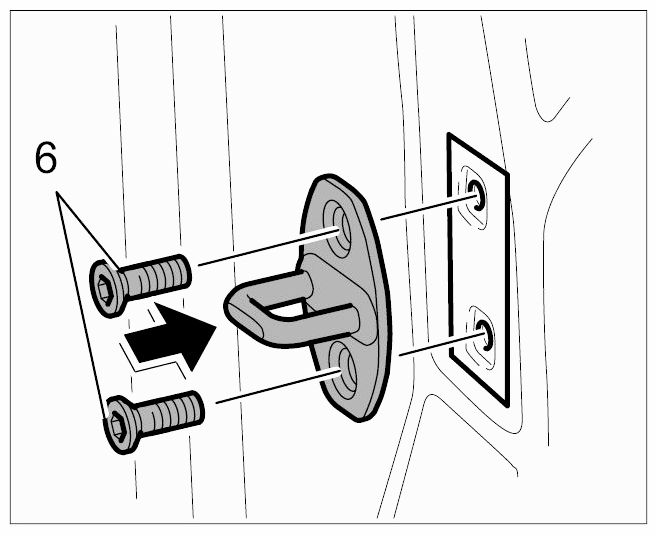

1. 2.1. Install door lock striker and screw in fastening screws -6- hand-tight.

  Fig 7: Installing Door Lock Striker
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

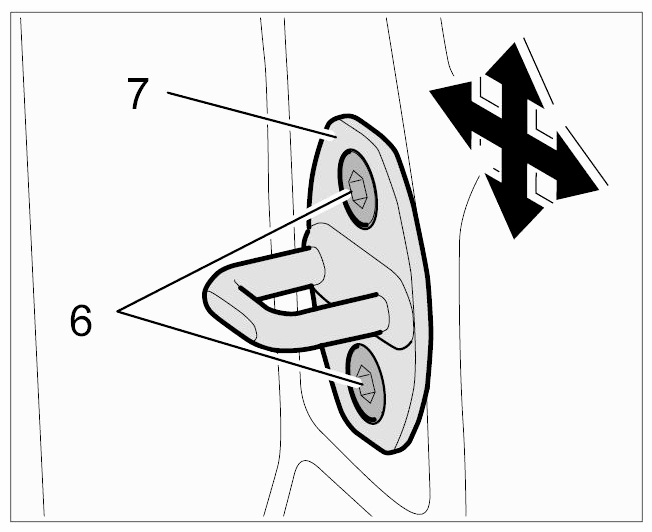

2. 2.2. Set the contour with respect to the rear door by moving the door lock striker -7- both vertically and horizontally.

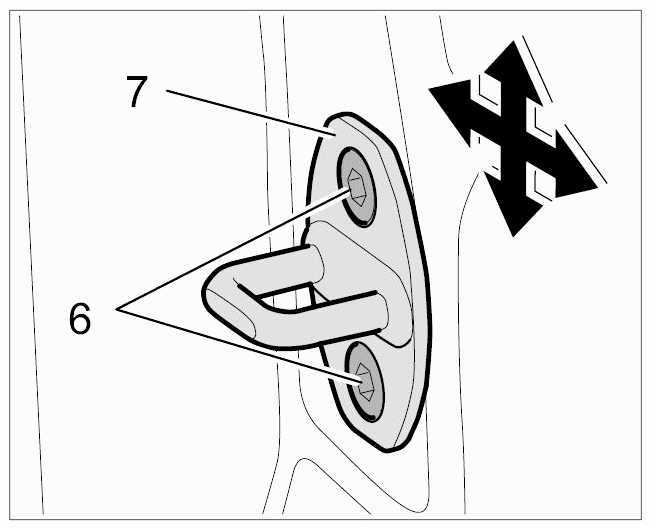

  Fig 8: Adjusting Door Lock Striker
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check gap dimension to B-pillar.
1. 3.1. Hold a flat object (e.g. a credit card) at the B-pillar and measure the dimension -R- .
  Gap dimension 0.8 mm +/-0.5 mm

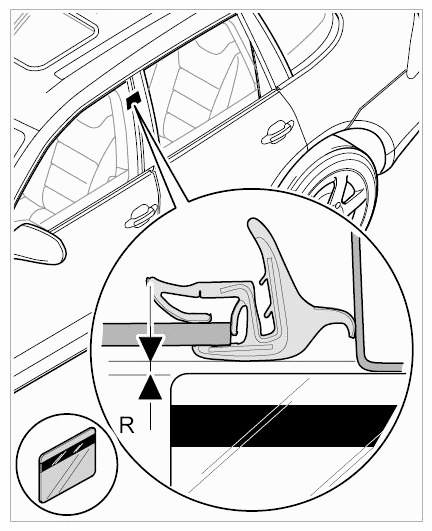

  Fig 9: Identifying B-Pillar Gap Dimension
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check all gap dimensions and adjust the door again if necessary. Then tighten all fastening screws to the specified tightening torque.
1. 4.1. Tighten fastening screws -1- , -2- and -3- to the specified tightening torque → Tightening torque: 20 Nm (15 ftlb.) +/-3 Nm (+/-2.0 ftlb.)

  Fig 10: Adjusting Front Door Mounting Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 11: Adjusting Front Door Mounting Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 4.2. Re-tighten fastening screws -1- , -2- and -3- to the specified torque angle → Torque angle: 90°

  Fig 12: Adjusting Front Door Mounting Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 13: Adjusting Front Door Mounting Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  .
3. 4.3. Tighten fastening screws -6- to the specified tightening torque.
  → Tightening torque: 20 Nm (15 ftlb.)+/-2 Nm (+/-1.5 ftlb.)

  Fig 14: Adjusting Door Lock Striker
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
