Removing Door Handle

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

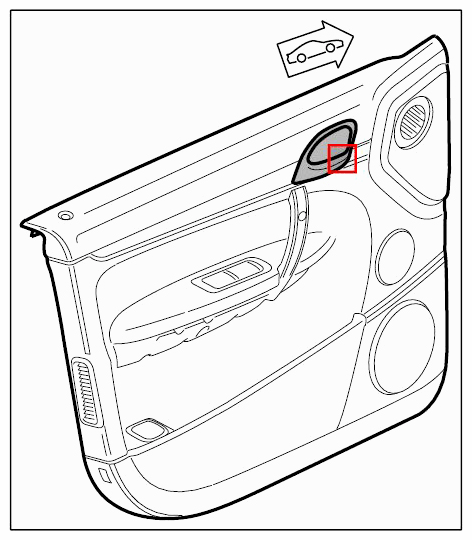

Fig 1: Identifying Door Handle
G09421805Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove door trim panel cover → Removing cover for door trim panel .
  2. Remove door handle.
    1. 2.1. Pull off plug -3-  (-Arrow A-  ).
    2. 2.2. Undo fastening screws -2-  .

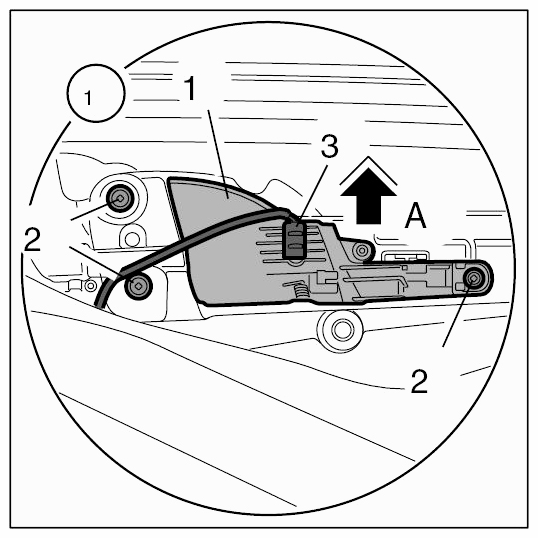

      Fig 2: Removing Door Handle
      G09421806Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Take off door handle.
    1. 3.1. Pull out and remove door handle -1-  (-Arrow B-  ).

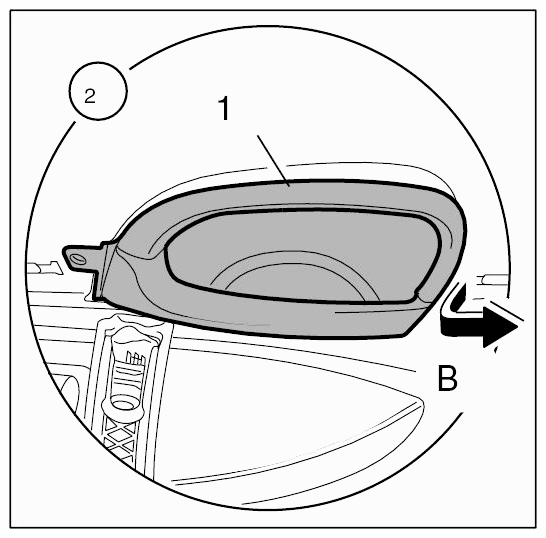

      Fig 3: Removing Door Handle
      G09421807Courtesy of PORSCHE CARS NORTH AMERICA, INC.
