Installing Door Handle

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

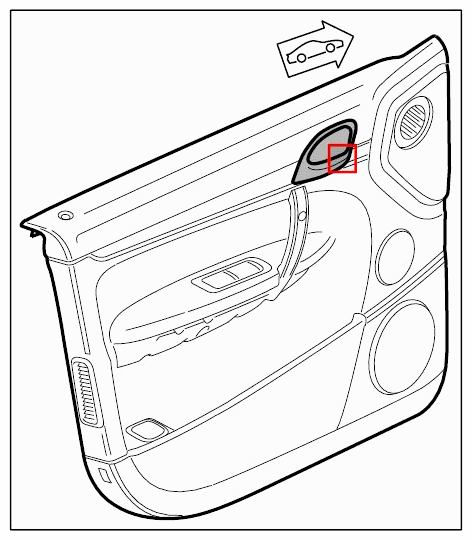

Fig 1: Identifying Door Handle

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insert door handle.
1. 1.1. Insert door handle -1- into the door trim panel (-Arrow A- ).
2. 1.2. Push door handle -1- in fully and press into position (-Arrow B- ).

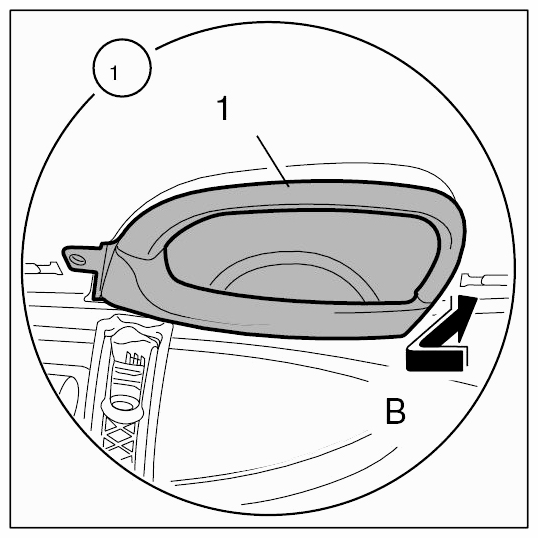

  Fig 2: Installing Door Handle
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

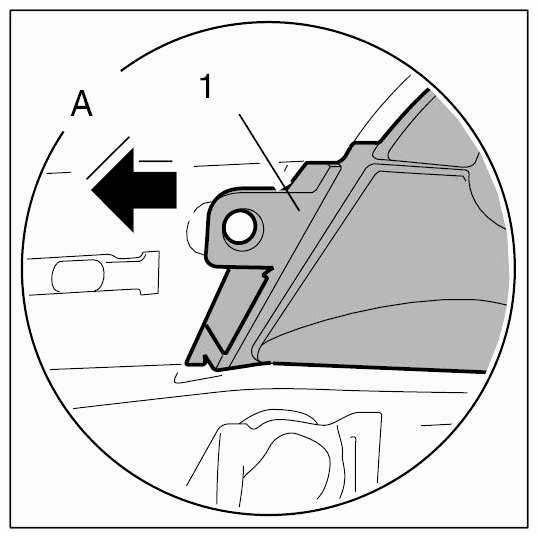

  Fig 3: Inserting Door Handle Into Door Trim Panel
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install door handle.
1. 2.1. Screw in -2- fastening screws.
2. 2.2. Connect plug -3- (-Arrow C- ).

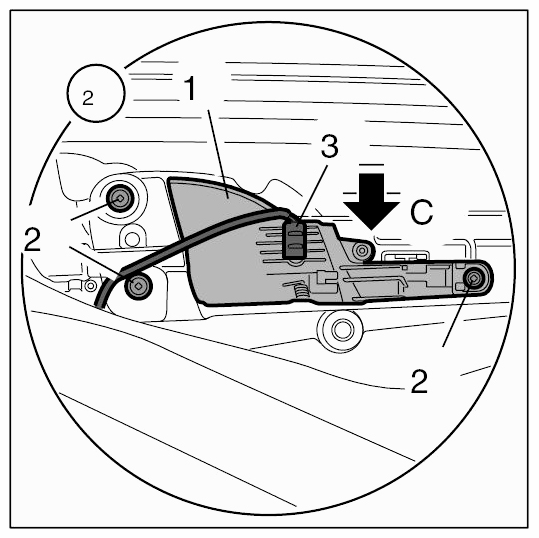

  Fig 4: Installing Door Handle And Mounting Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install door trim panel cover → Installing cover for door trim panel .
