Removing Front Door Sub-Frame

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

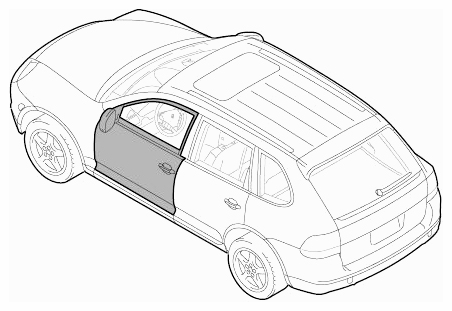

Fig 1: Locating Front Door Sub-Frame

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Close the door window in order to improve accessibility to the door wiring harness when removing the front door unit carrier.

Removing rear assembly opening covers, loosening lock mounting and KESSY wiring harness - For all vehicles:

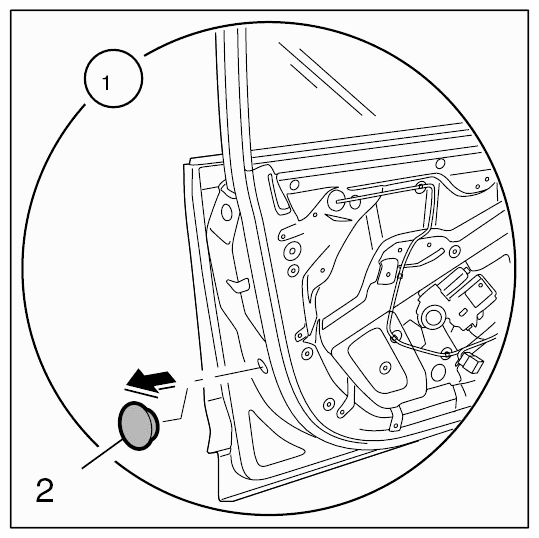

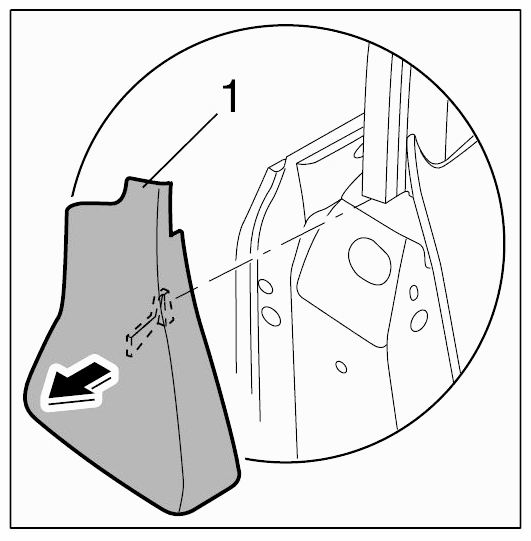

1. 1.1. Unclip the top and bottom assembly opening covers -1- and -2- .

  Fig 2: Removing Rear Assembly Opening Covers (1 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 3: Removing Rear Assembly Opening Covers (2 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

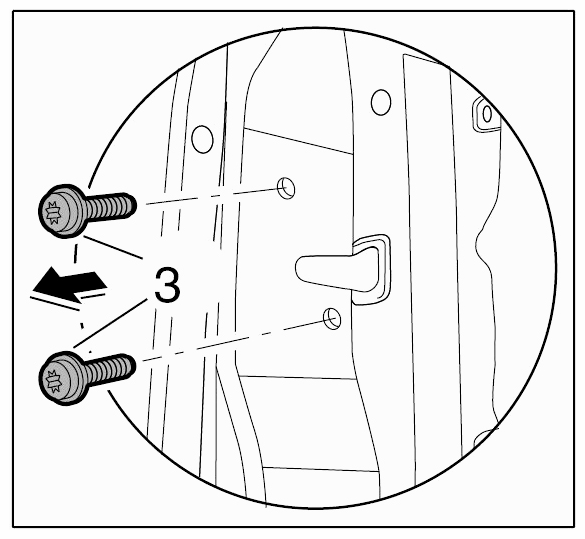

2. 1.2. Unscrew fastening screws -3- on door lock.

  Fig 4: Removing Door Lock Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Also for vehicles with KESSY control module:

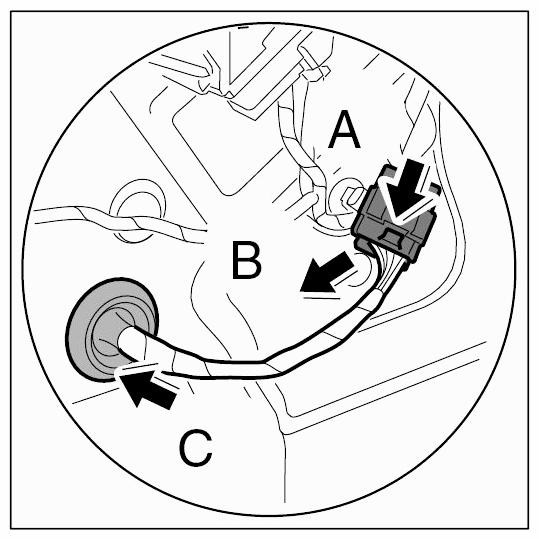

1. 2.1. Release -Arrow A- and remove -Arrow B- electric connector.

  Fig 5: Removing Electric Connector
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Press out rubber sleeve -C- and slide cable outwards through the opening.

  Fig 6: Removing Electric Connector
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Removing front assembly opening covers and disconnecting electrical connection
1. 3.1. Unclip the top and bottom assembly opening covers -4- and -5- .

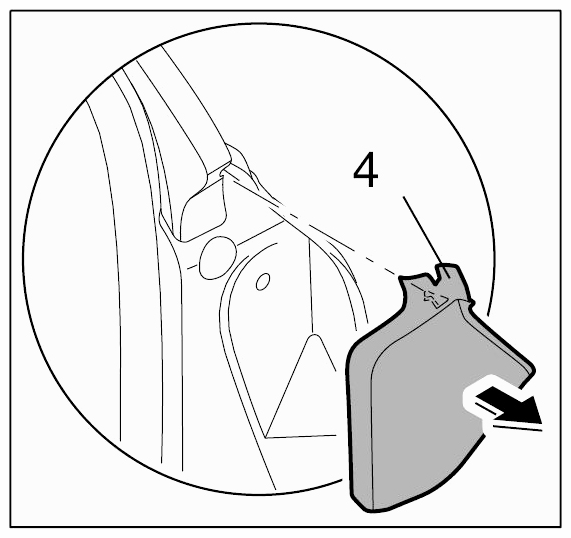

  Fig 7: Removing Front Assembly Opening Covers
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

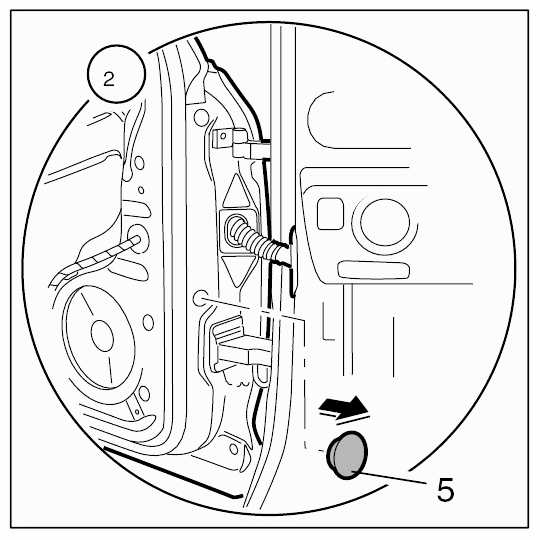

  Fig 8: Removing Top And Bottom Assembly Opening Covers
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

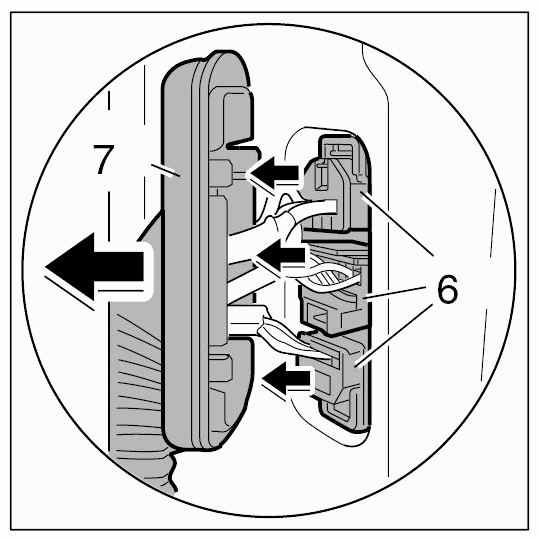

2. 3.2. Pull off rubber sleeve -7- between the door and A-pillar.

  Fig 9: Pulling Off Rubber Sleeve Between Door And A-Pillar
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

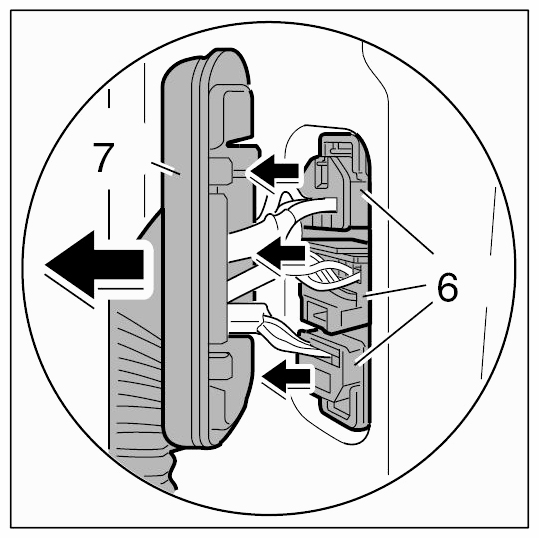

3. 3.3. Release and disconnect electric push-on connectors -6- .

  Fig 10: Disconnecting Electric Push-On Connectors
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Releasing door sub-frame
1. 4.1. Unscrew fastening screws for door sub-frame -8, 9- and -11- .

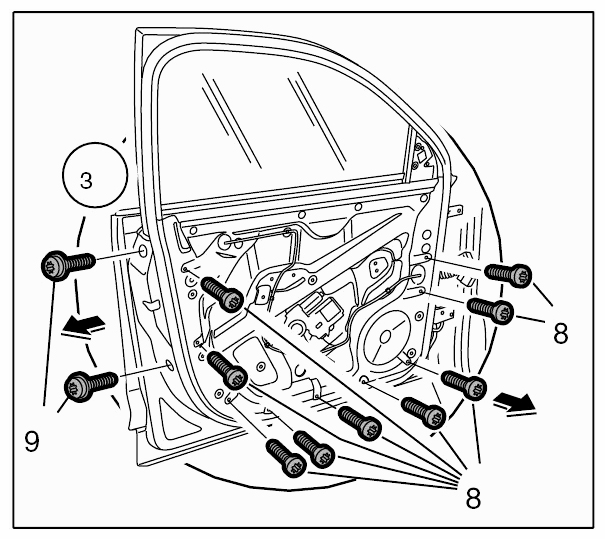

  Fig 11: Unscrewing Door Sub-Frame Fastening Screws (1 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

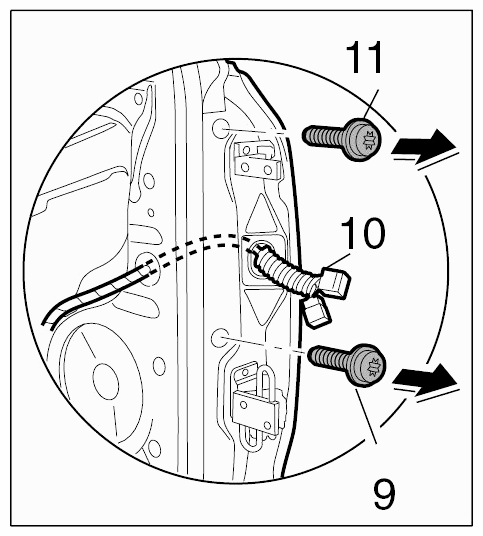

  Fig 12: Unscrewing Door Sub-Frame Fastening Screws (2 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 4.2. Press rubber sleeve on the wiring harness -10- inwards and remove wiring harness -10- through the door opening and the door sub-frame.

  Fig 13: Removing Door Opening And Door Sub-Frame Wiring Harness
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Removing door sub-frame

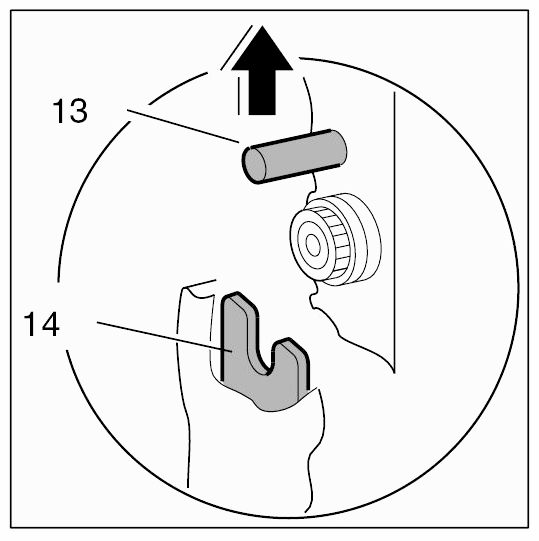

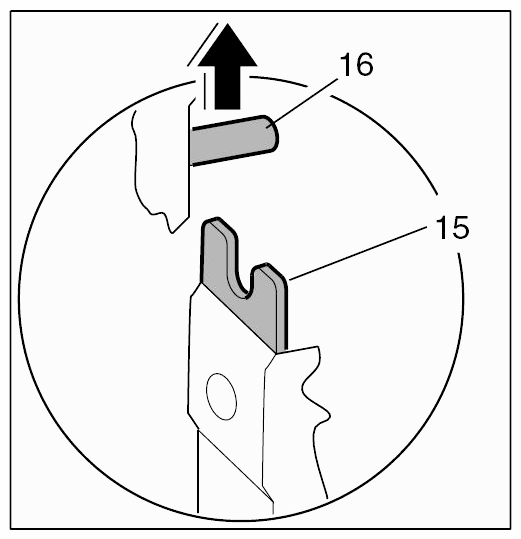

1. 5.1. Raise the door sub-frame -12- evenly at the front and rear until the guide pins -13- and -16- are fully released from the holding slots -14- and -15- .

  Fig 14: Removing Door Sub-Frame (1 Of 3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 15: Removing Door Sub-Frame (2 Of 3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 16: Removing Door Sub-Frame (3 Of 3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

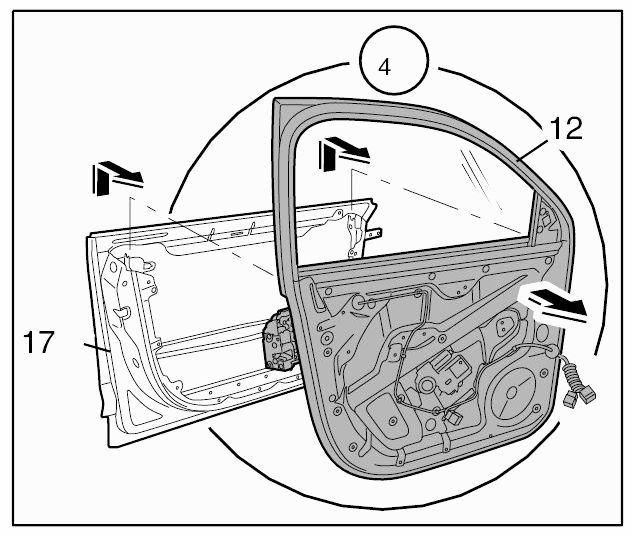

2. 5.2. Remove the door sub-frame from the basic door frame -17- .

  Fig 17: Removing Door Sub-Frame From Basic Door Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
