Installing Front Door Sub-Frame

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

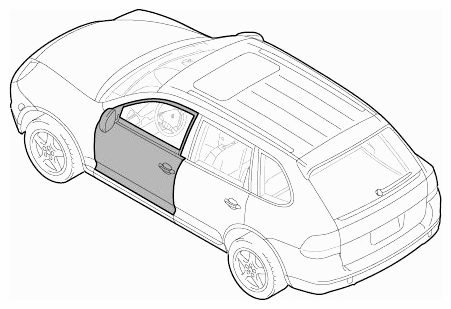

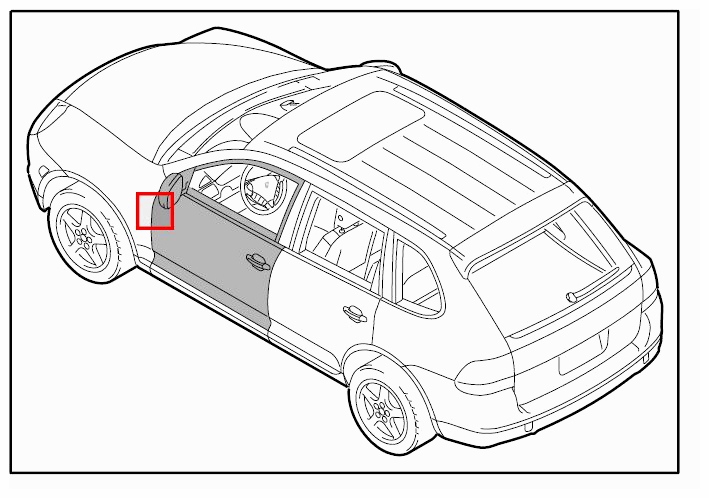

Fig 1: Identifying Front Door Sub-Frame

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Moving adjustable fastening elements to their home position

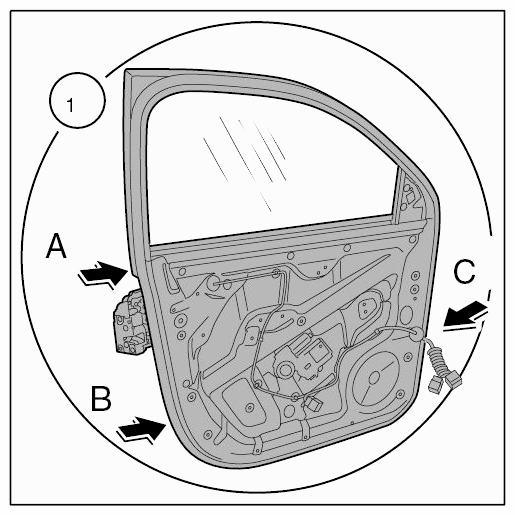

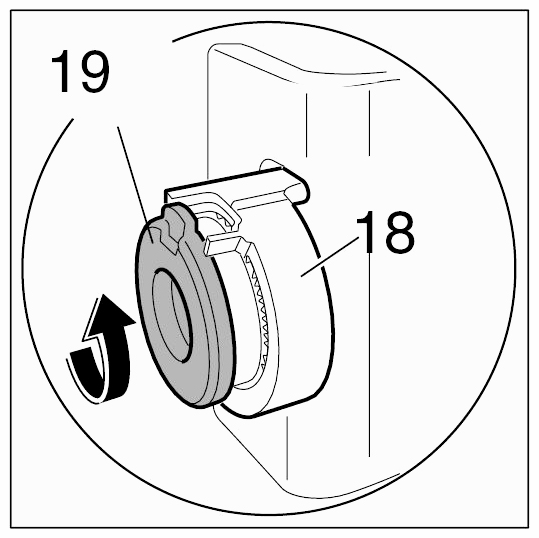

1. 1.1. Move the three adjustable fastening elements (-Arrow A, B, C- ) on the door sub-frame to their home position. Screw the screw element -19- fully into the basic element -18- .
  Information

  The screw elements have left-handed threads.

  Fig 2: Locating Basic Door Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 3: Engaging Door Sub-Frame On Basic Door Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Opening basic door frame
Engaging door sub-frame on basic door frame

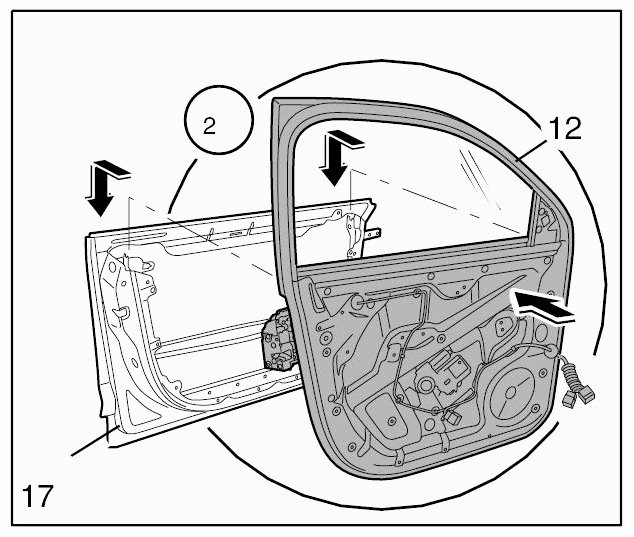

1. 3.1. Mount the door sub-frame -12- on the basic door frame -17- .

  Fig 4: Mounting Door Sub-Frame On Basic Door Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

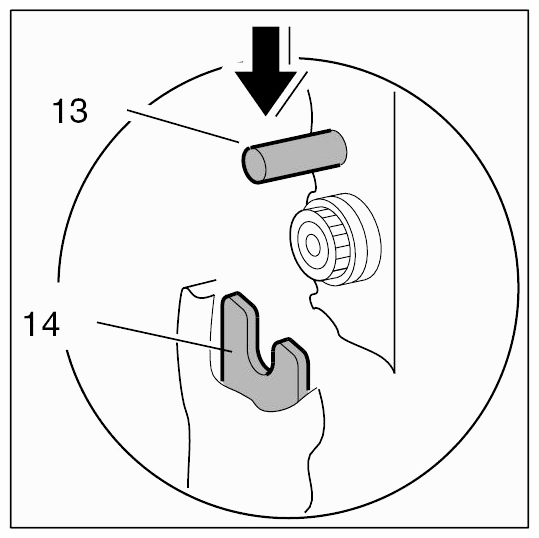

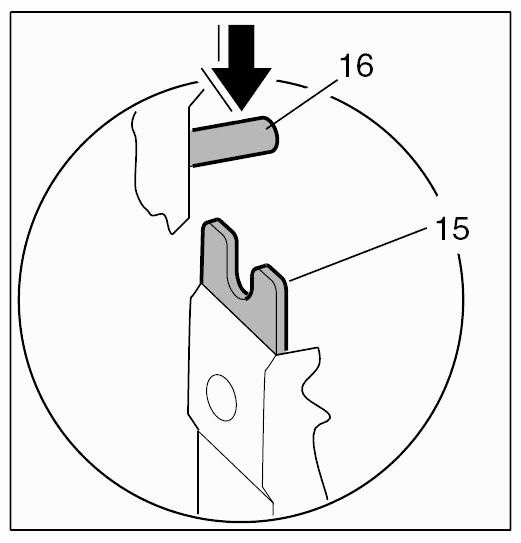

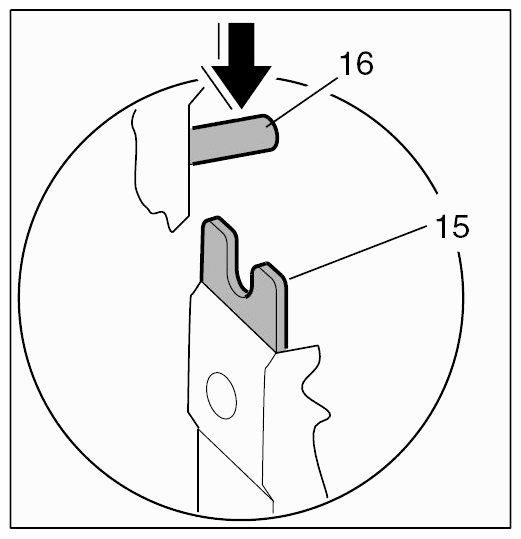

2. 3.2. Insert guide pins -13- and -16- into the holding slots -14- and -15- .

  Fig 5: Inserting Guide Pins And Into Holding Slots (1 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 6: Inserting Guide Pins And Into Holding Slots (2 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fixing door sub-frame to basic door frame, linking up electrical plug connection and tightening lock

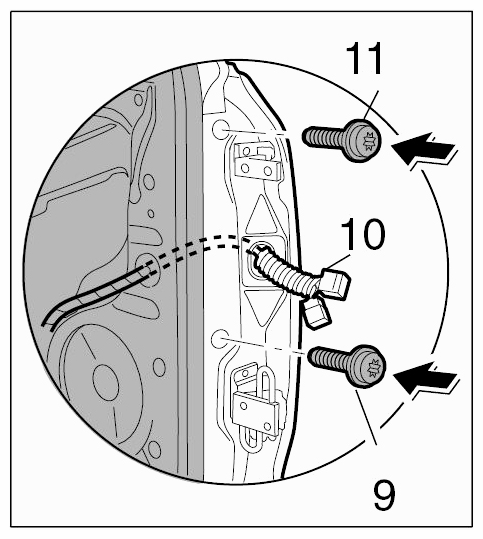

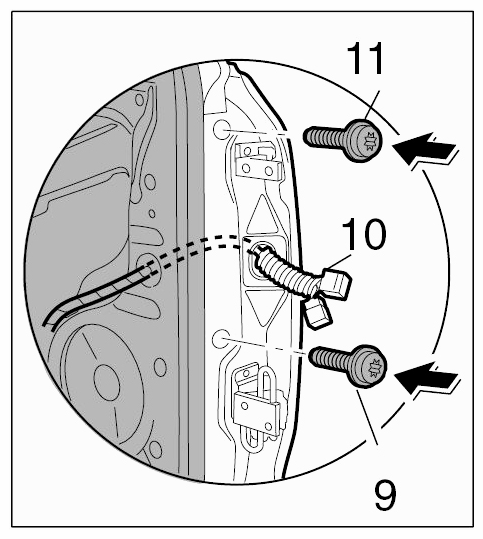

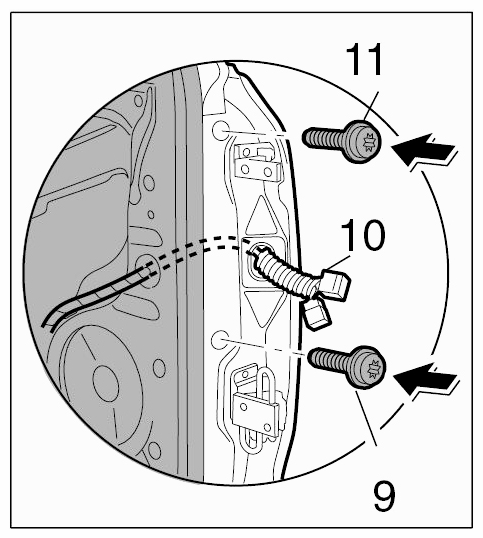

1. 4.1. Fix the door sub-frame to the basic door frame by screwing in the fastening screws -9, 11- . Press the door sub-frame upwards and screw in fastening screws slightly.

  Fig 7: Installing Door Sub-Frame Mounting Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 4.2. Push wiring harness -10- from inside through the door sub-frame and the door opening and press rubber sleeve on the wiring harness -10- from inside into the door opening.

  Fig 8: Installing Wiring Harness
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

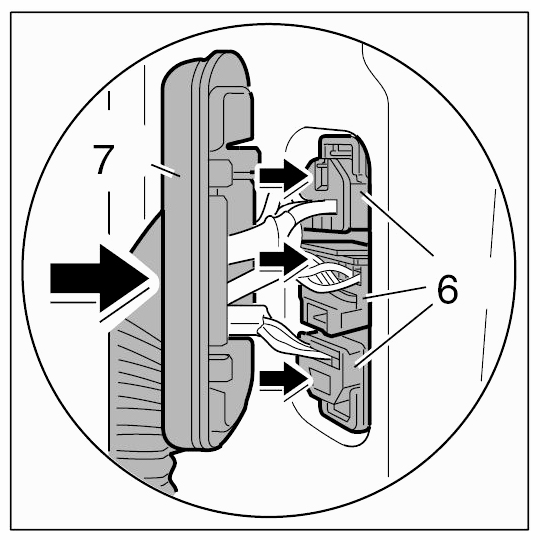

3. 4.3. Connect electric push-on connector -6- .

  Fig 9: Connecting Electric Push-On Connector
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 4.4. Press on the rubber sleeve -7- between the doors and A-pillar.

  Fig 10: Pressing Rubber Sleeve Between Doors And A-Pillar
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

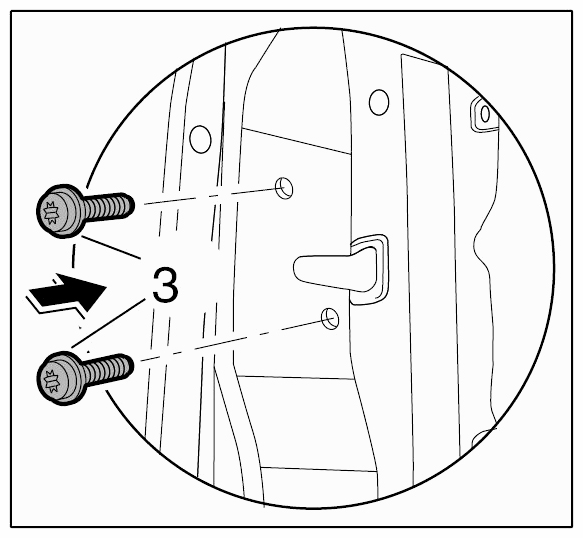

5. 4.5. Screw in new fastening screws -3- on the door lock and tighten to the specified tightening torque → Technical Values .

  Fig 11: Installing Door Lock Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting door sub-frame
1. 5.1. The fastening screw -11- secures the front bearing position (holding slot -15- for guide pin -16- ). This bearing point cannot then be adjusted!

  Fig 12: Adjusting Door Sub-Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 5.2. Close the door carefully.
  Information

  The setting is achieved by bracing the door unit carrier with the basic door frame using the adjustable fastening elements. If the required joint measurements cannot be achieved, it may be necessary to unscrew the fastening screws -9, 11- and reset the adjustable fastening elements to the basic position.

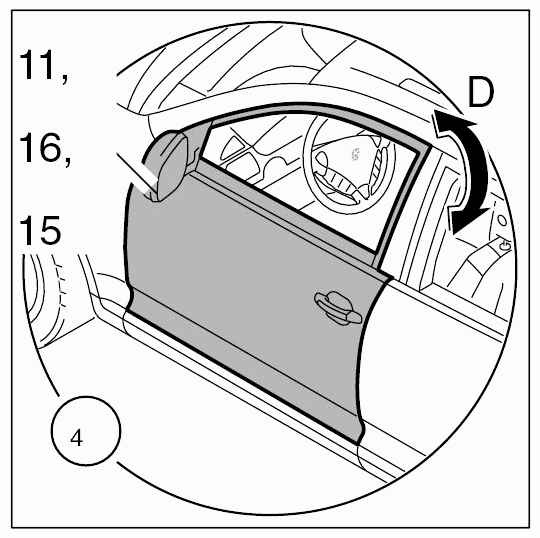

3. 5.3. The window frame (door sub-frame) must be adjusted with respect to the roof frame and B-pillar (-arrow D- ). The pivoting points in this case are the holding slots -14- , -15- and the guide pins -13- , -16- . Adjust the gap dimensions on the door sub-frame.

  Fig 13: Adjusting Window Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 14: Adjusting Window Frame Guide Pins On Holding Slots (1 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 15: Adjusting Window Frame Guide Pins On Holding Slots (2 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 5.4. → TEST AND ADJUSTMENT VALUES
5. 5.5. Tighten fastening screws -9, 11- to the specified tightening torque.→ Technical Values

  Fig 16: Tightening Door Lock Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fastening door sub-frame

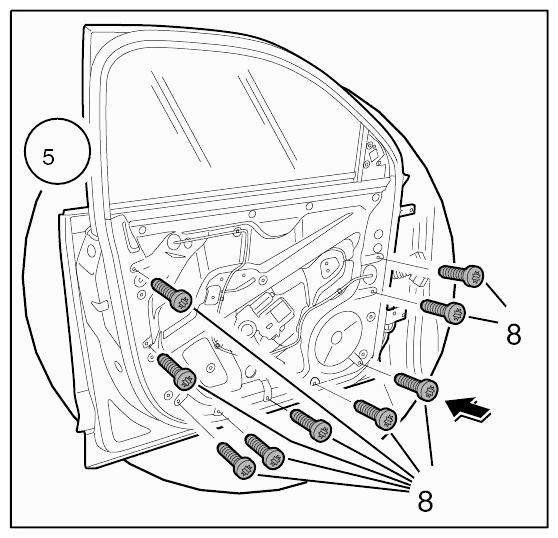

1. 6.1. Screw in fastening screws -8- and tighten to the specified tightening torque. → Technical Values

  Fig 17: Tightening Door Sub-Frame Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 18: Identifying Front Assembly Openings
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clipping in covers of front assembly openings

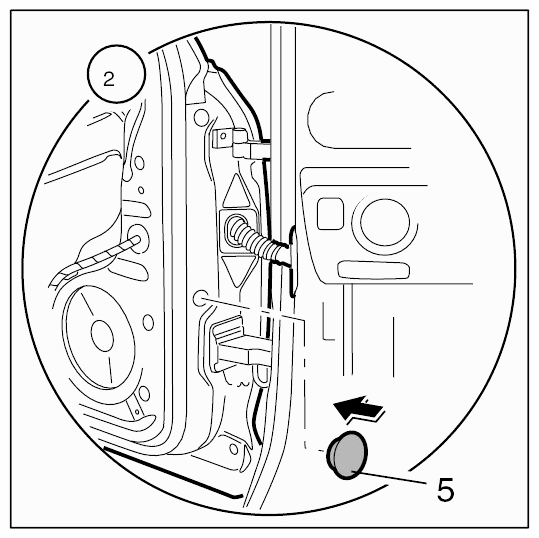

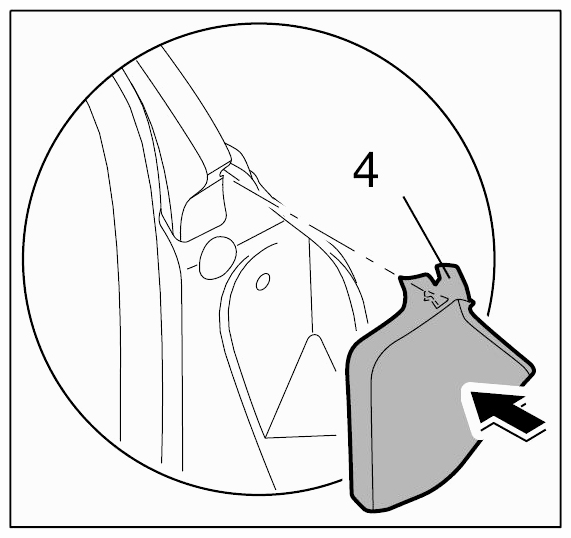

1. 7.1. Clip in the top and bottom assembly opening covers -4- and -5- .

  Fig 19: Clipping In Covers Of Front Assembly Openings
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 20: Clipping In Top And Bottom Assembly Opening Covers
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clipping in rear assembly opening covers and connecting KESSY wiring harness - For all vehicles:

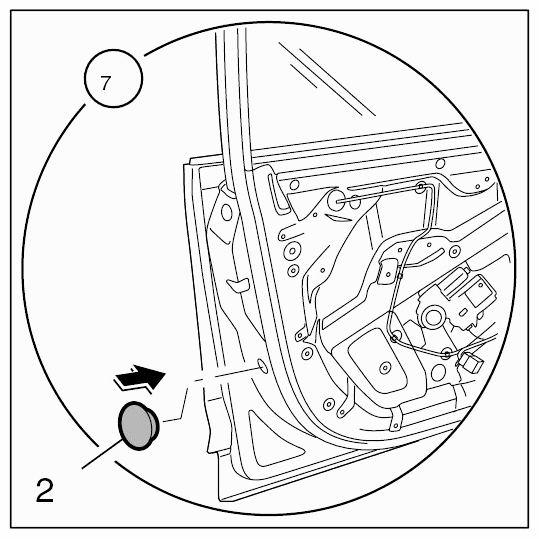

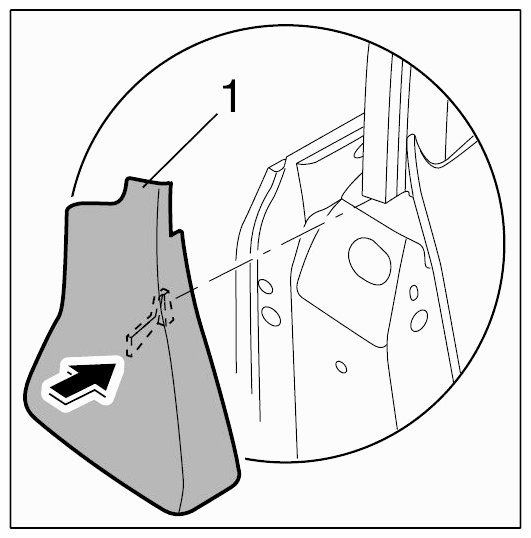

1. 8.1. Clip in the top and bottom assembly opening covers -1- and -2- .

  Fig 21: Clipping Top And Bottom Assembly Opening Covers (1 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 22: Clipping Top And Bottom Assembly Opening Covers (2 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Also for vehicles with KESSY control module:

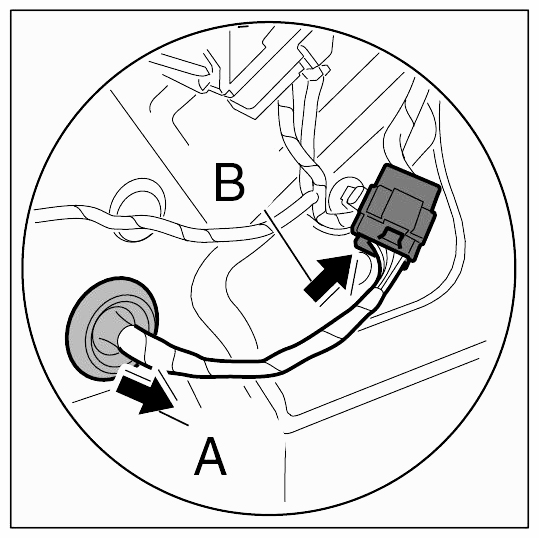

1. 9.1. Pull KESSY wiring harness in through the opening. Install rubber sleeve in the unit carrier until it engages completely (-Arrow A- ).
2. 9.2. Insert plug into the socket (-Arrow B- ) until it clicks into place.

  Fig 23: Inserting Plug Into Socket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
