Removing Front Striker Pin

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Front Striker Pin

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The counterplate -3- of the striker pin -1- is permanently fixed to the B-pillar structure. After the striker pin has been removed, the counterplate remains in the lower end position on the B-pillar.

Open door.
Determining installation position
1. 2.1. Determine the position of the striker pin in relation to the B-pillar according to the impression made at the factory -arrows- and mark this on the striker pin.

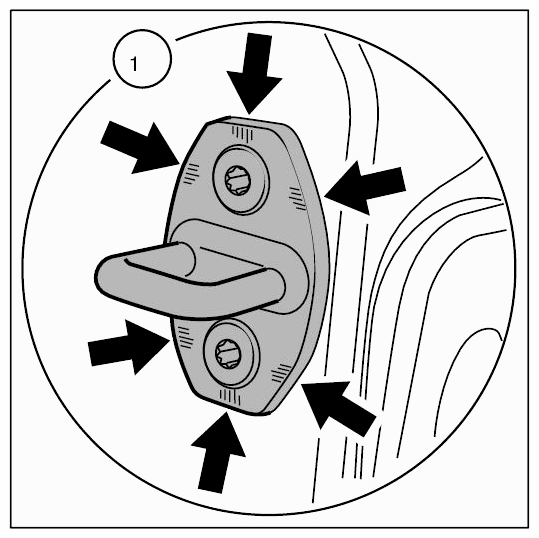

  Fig 2: Locating Position Of Striker Pin
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Removing the striker pin
1. 3.1. Remove fastening screws -2- from striker pin -1- .
2. 3.2. Remove the striker pin -1- .

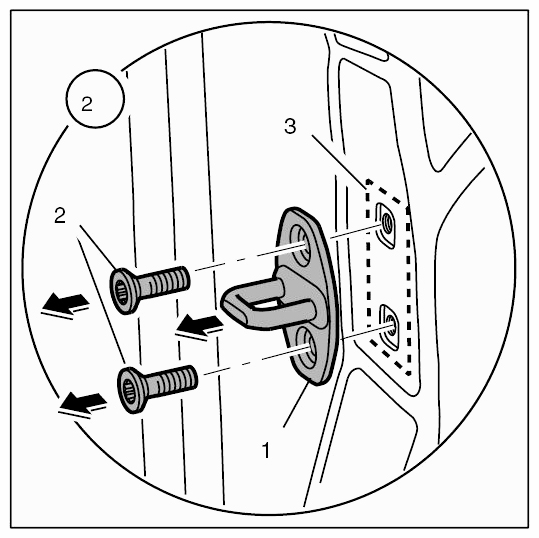

  Fig 3: Removing Fastening Screws From Striker Pin
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
