Installing Front Striker Pin

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Front Striker Pin

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing, adjusting and fastening the striker pin

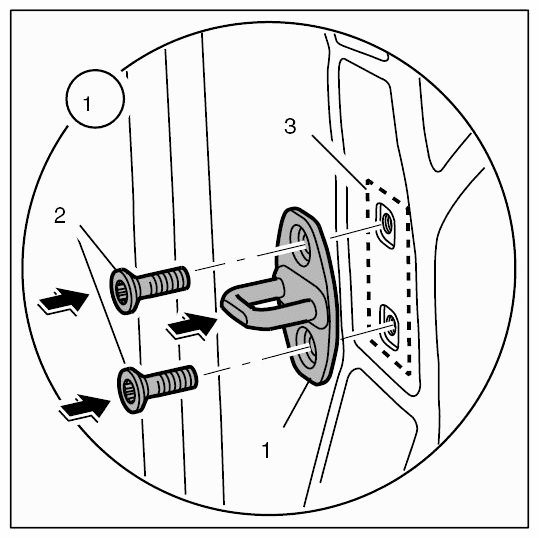

1. 1.1. Position striker pin -1- in line with the markings.
2. 1.2. Screw in fastening screws -2- for the striker pin -1- and tighten slightly.
3. 1.3. Carefully close door and check that the striker pin is positioned correctly with respect to the lock.
4. 1.4. If necessary, adjust the striker pin accordingly.
5. 1.5. Tighten fastening screws -2- to the specified tightening torque → Tightening torque: 15 ftlb.+/-1.5 ftlb. .

  Fig 2: Installing Front Striker Pin
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

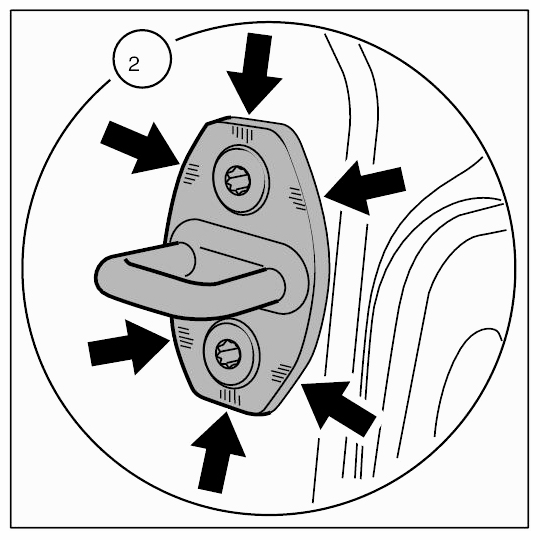

Remove markings.
1. 2.1.

  Fig 3: Locating Front Striker Pin
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close door.
