Removing Door Lock

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

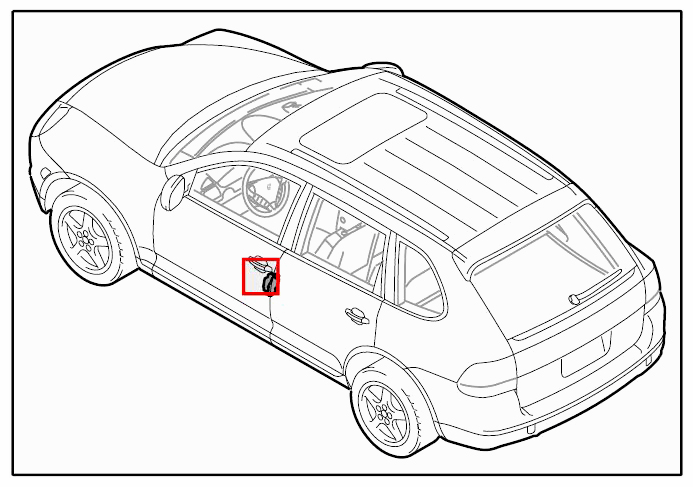

Fig 1: Identifying Door Lock

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pulling plug off door lock

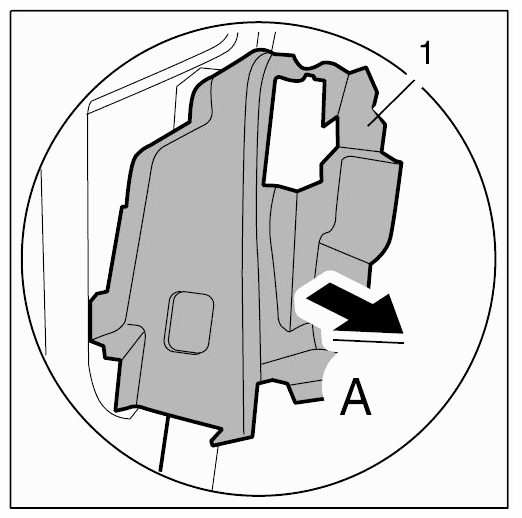

1. 1.1. Unclip cover -1- and remove it -arrow A- .

  Fig 2: Pulling Plug Off Door Lock
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

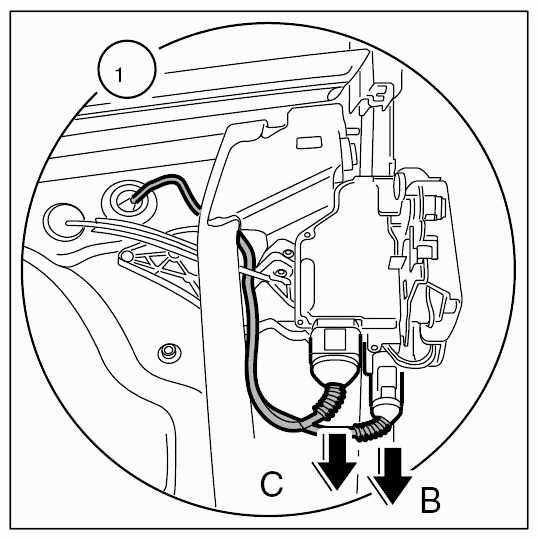

2. 1.2. Release and pull off connector on door lock -arrows B, C- .

  Fig 3: Removing Door Lock Connector
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

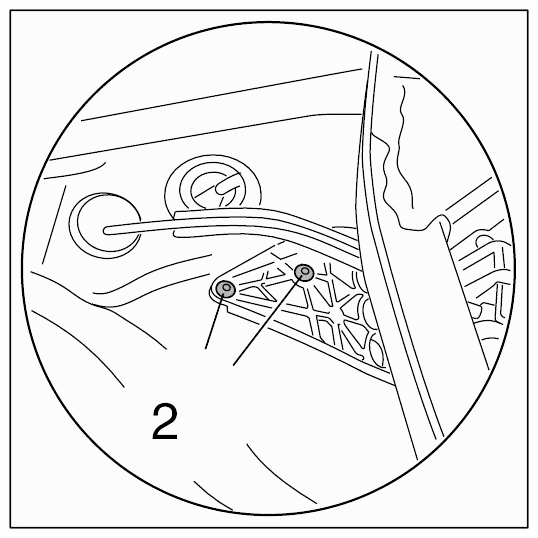

3. 1.3. Drill out blind rivets -2- .

  Fig 4: Identifying Blind Rivets
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Removing door lock

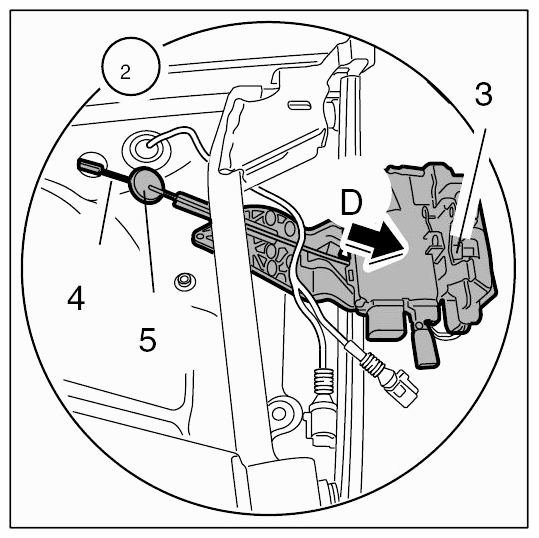

1. 2.1. Pull door lock -3- with bowden cable -4- out of the door sub-frame -arrow D- . When doing so, push the grommet -5- out of the door sub-frame.

  Fig 5: Removing Door Lock
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

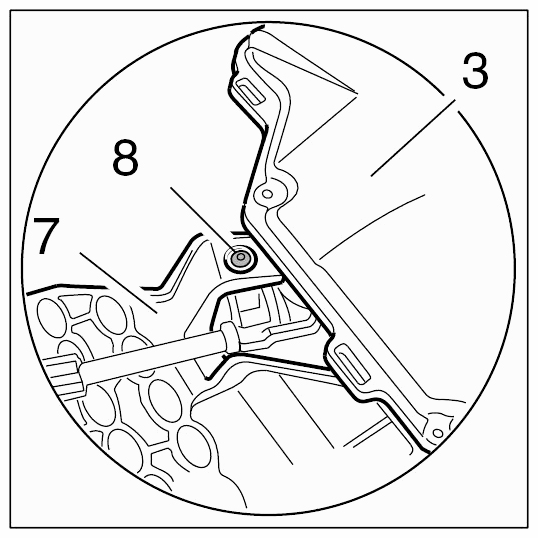

2. 2.2. Drill out the blind rivet -8- from the rear and pull lock retaining bracket -7- out of the door lock -3- -arrow E- .

  Fig 6: Removing Lock Retaining Bracket And Blind Rivet (1 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 7: Removing Lock Retaining Bracket And Blind Rivet (2 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

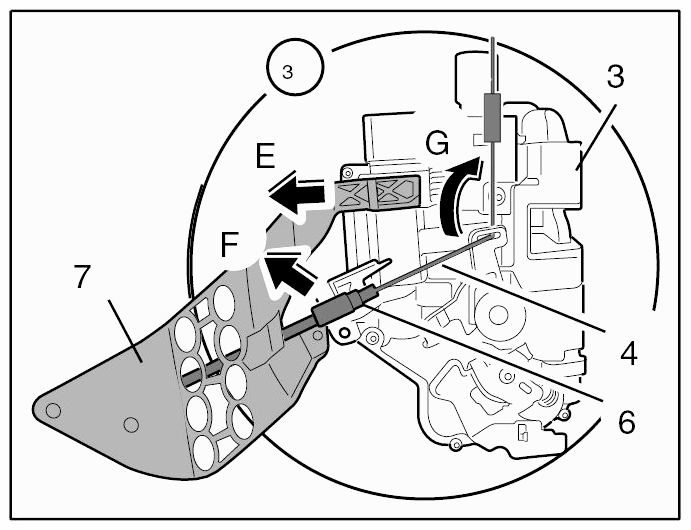

3. 2.3. Unclip fastening of bowden cable -6- on door lock -3- -arrow F- .

  Fig 8: Removing Door Lock Bowden Cable Fastening
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

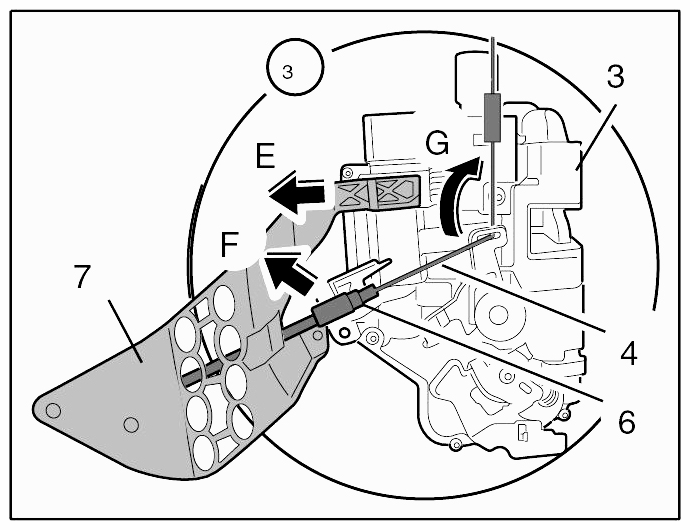

4. 2.4. Swivel bowden cable -4- by 90° and disengage from door lock actuating mechanism -arrow G- .

  Fig 9: Disengaging Door Lock Actuating Mechanism Swivel Bowden Cable
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
