Installing Door Lock

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

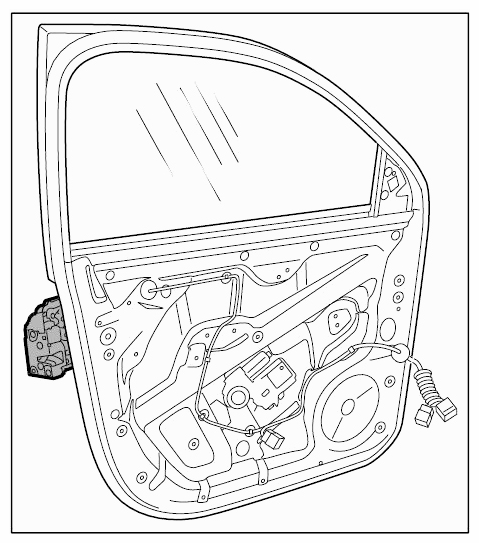

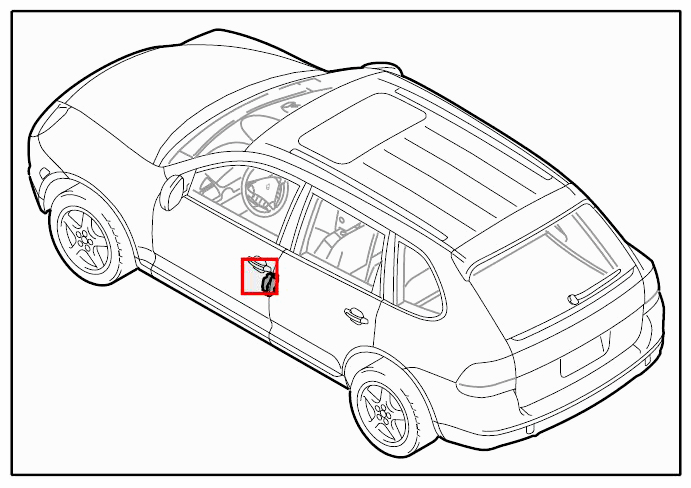

Fig 1: Identifying Door Lock (1 Of 2)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 2: Identifying Door Lock (1 Of 2)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing door lock

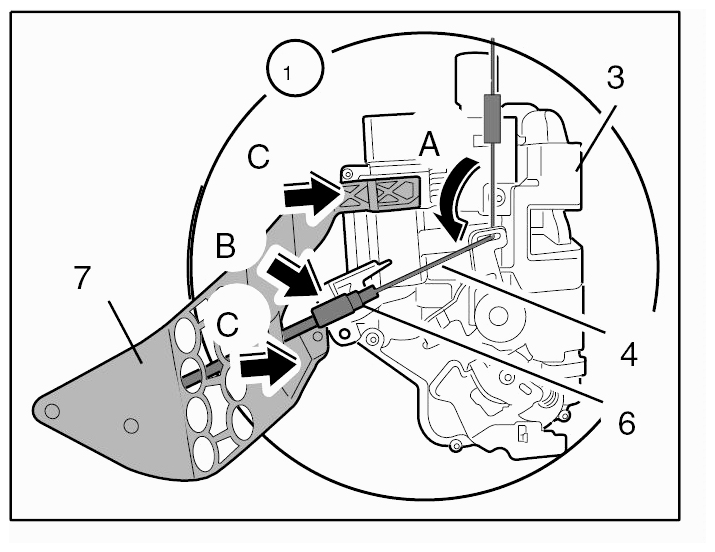

1. 1.1. Engage bowden cable -4- on door lock actuating mechanism and swivel by 90° -arrow A- .

  Fig 3: Engaging Door Lock Actuating Mechanism And Swivel Bowden Cable
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

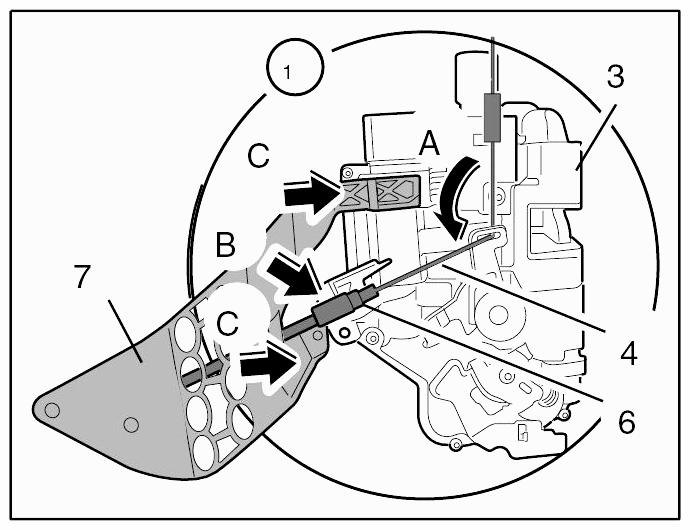

2. 1.2. Clip in fastening of bowden cable -6- on door lock -3- (-arrow B- ).

  Fig 4: Clipping Door Lock Bowden Cable Fastening
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

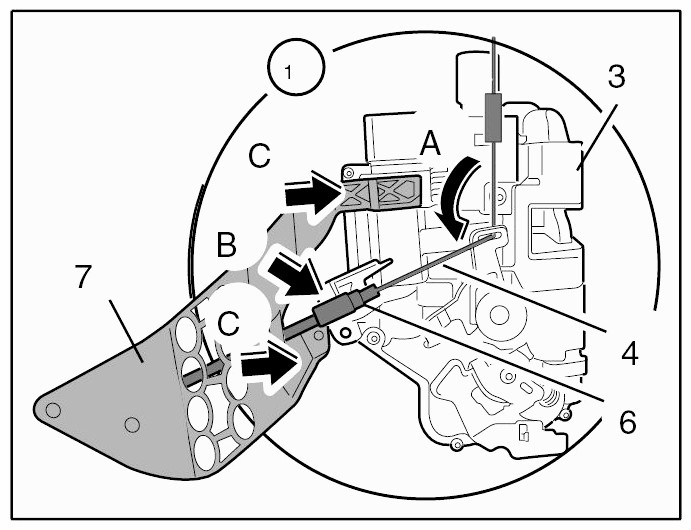

3. 1.3. Fit lock retaining bracket -7- -arrow C- .

  Fig 5: Fitting Lock Retaining Bracket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

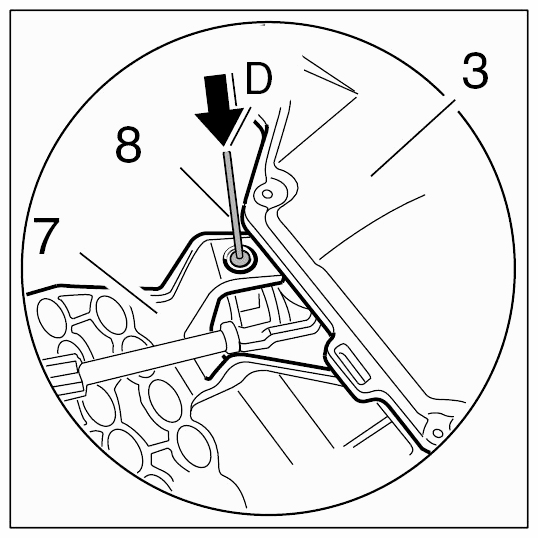

4. 1.4. Insert blind rivet -8- and rivet lock retaining bracket -7- to the door lock -3- from the rear -arrow D- .

  Fig 6: Inserting Blind Rivet And Rivet Lock Retaining Bracket To Door Lock
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Installing door lock
1. 2.1. Lay wiring harness -9- as shown.

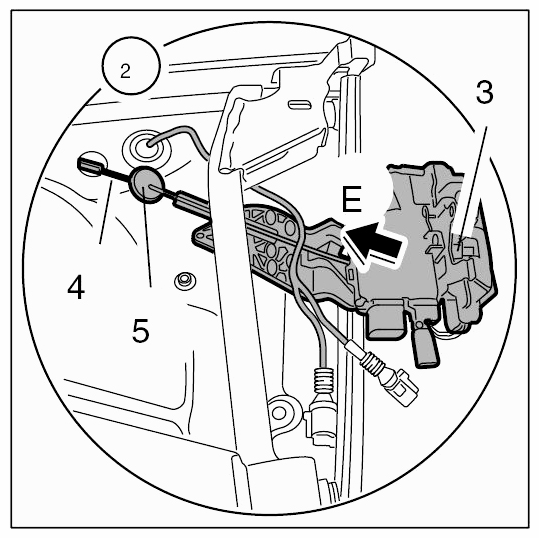

2. 2.2. Pass bowden cable -4- through door sub-frame, insert door lock -3- -arrow E- and fit the grommet -5- .

  Fig 7: Installing Door Lock
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Riveting the door lock

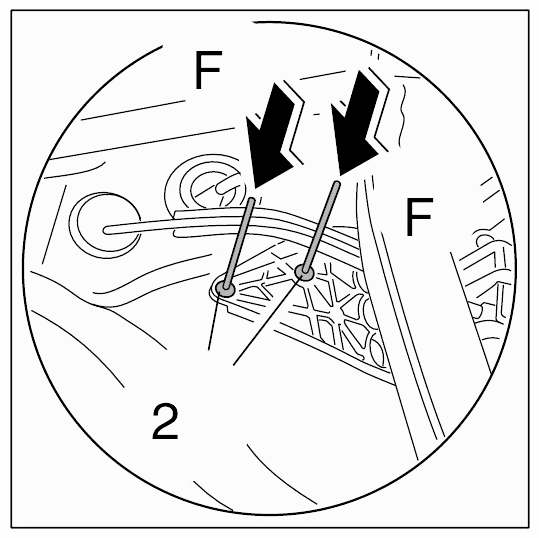

1. 3.1. Insert the blind rivets -2- and rivet lock retaining bracket to door sub-frame -arrows F- .

  Fig 8: Inserting Blind Rivets And Rivet Lock Retaining Bracket To Door Sub-Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

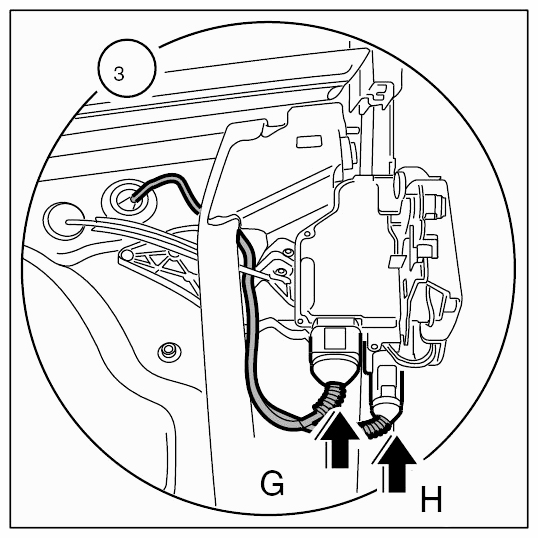

2. 3.2. Insert electric plug connections -arrows G, H- until they click audibly into place.

  Fig 9: Inserting Electric Plug Connections
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

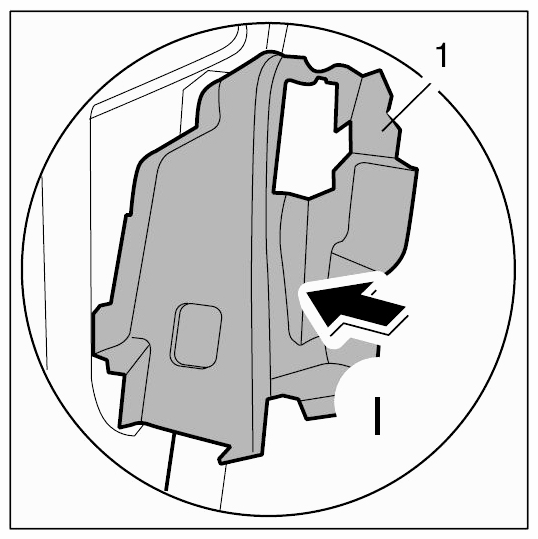

3. 3.3. Position the cover -1- and clip it into place -arrow I- .

  Fig 10: Positioning Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
