Locking Lock Actuation

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Light up inside of door with a lamp.

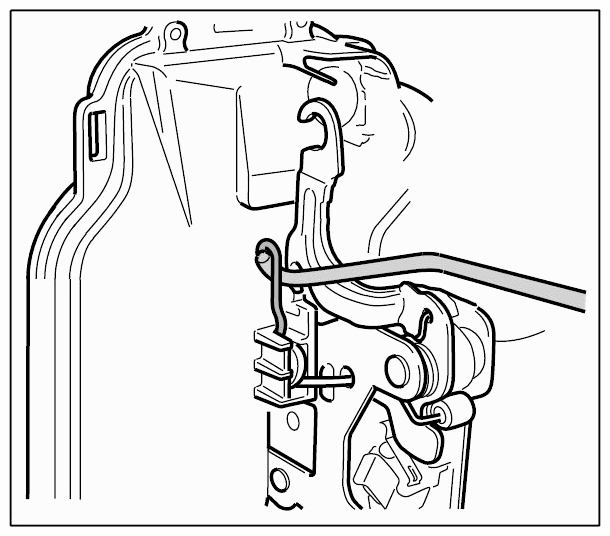

Fig 1: Identifying Inside Door Area
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- To fit the lock actuation correctly, the securing spring must be hooked into the lock actuation lever before the door lock is installed.
- The secured position of the lock actuation is released automatically when the door handle is first pressed. A clear clicking sound can be heard when the door handle is first pressed.
Guide the assembly tool T10118 -12- between the securing spring -10- and the lever -11- .

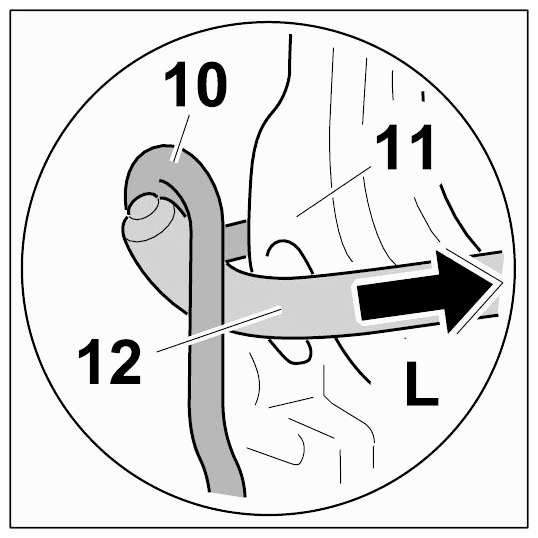

Fig 2: Securing Spring And Lever
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
The securing spring -10- hooks on to the tool with a rotary movement.

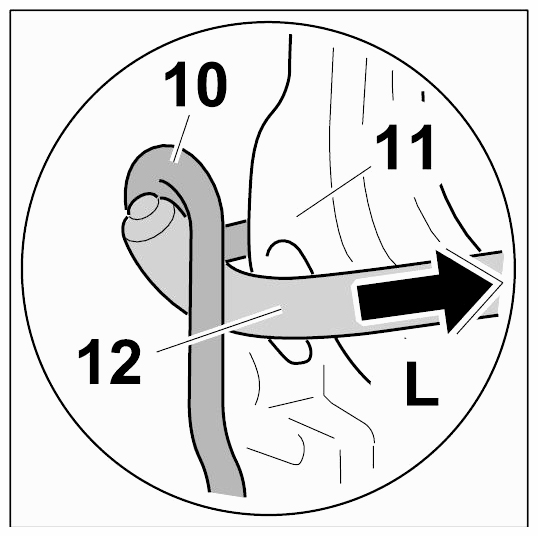

Fig 3: Securing Spring And Lever
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull the securing spring -10- towards the outside of the door -arrow L- until the spring engages audibly in the locking lug of the lever -13- .

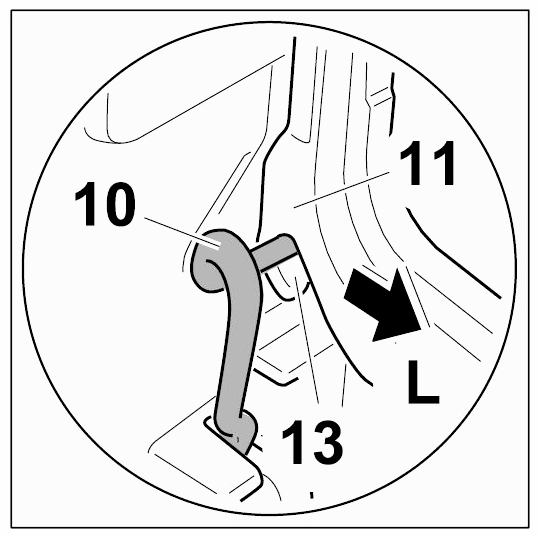

Fig 4: Removing Tool
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unhook the tool and remove it.
Information
- Pull carefully on the lock actuation to check that it is secured in installation position. Repeat the steps listed above if necessary.
