Removing Lock Cylinder

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

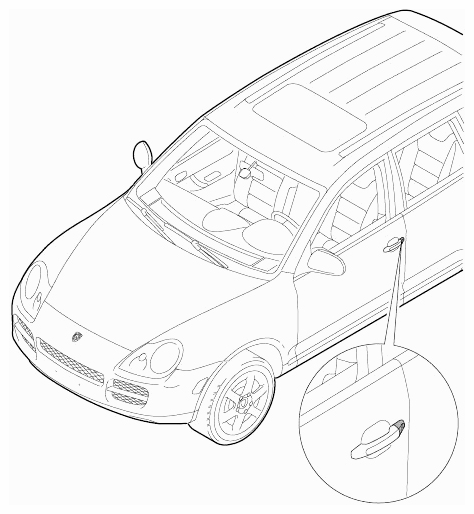

Fig 1: Identifying Lock Cylinder

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Open door.
Unclip cap.

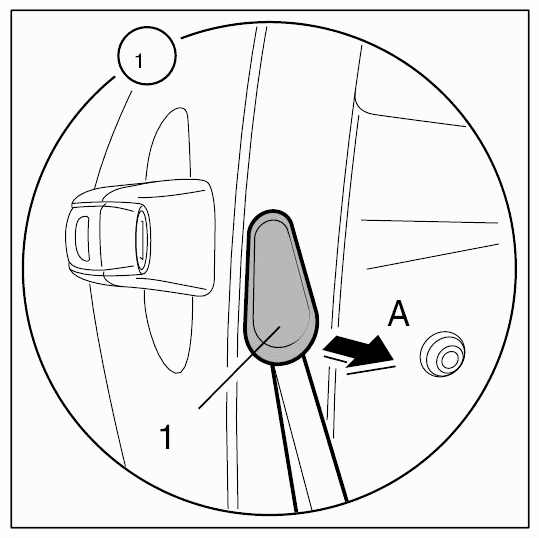

1. 2.1. Unclip lower cap -1- with a plastic wedge (-arrow A- ) and remove downwards -arrow B- .

  Fig 2: Removing Lower Cap Using Plastic Wedge (1 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

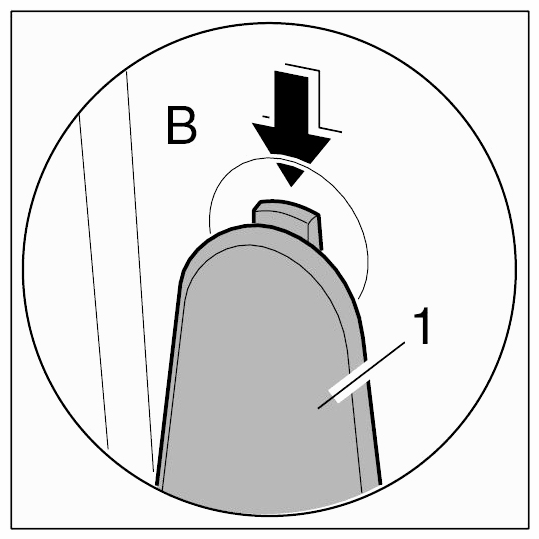

  Fig 3: Removing Lower Cap Using Plastic Wedge (2 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove lock cylinder.

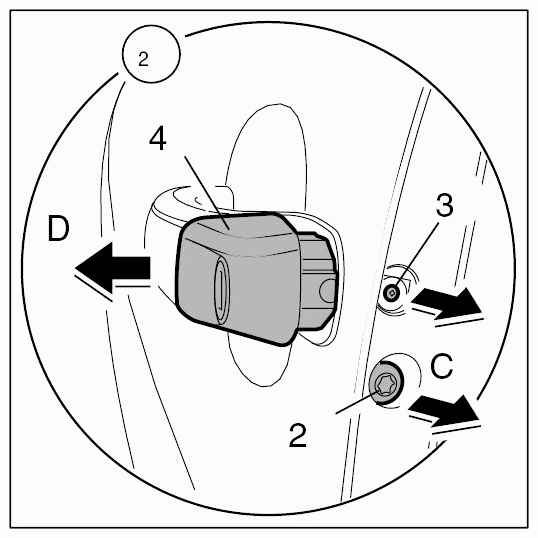

1. 3.1. Loosen and unscrew fastening screws -2, 3- at the side until the lock cylinder -4- can be pulled out -arrow C- .
2. 3.2. Remove the lock cylinder -4- -arrow D- .

  Fig 4: Removing Lock Cylinder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip lock cylinder cover.

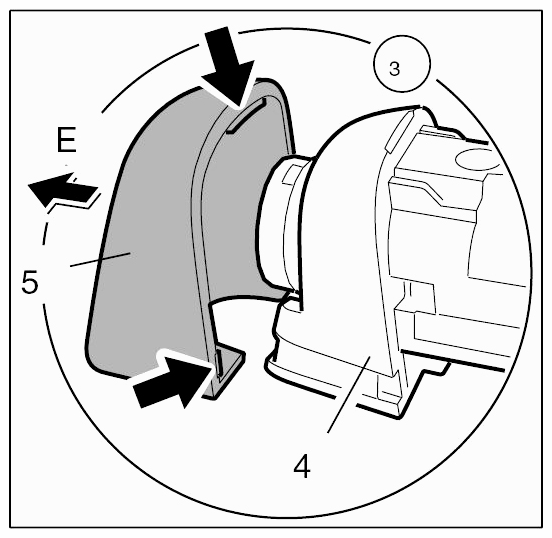

1. 4.1. Unclip cover -5- of lock cylinder -4- at the locking tabs -Arrows- and remove it -arrow E- .

  Fig 5: Removing Lock Cylinder Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
