Installing Lock Cylinder

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

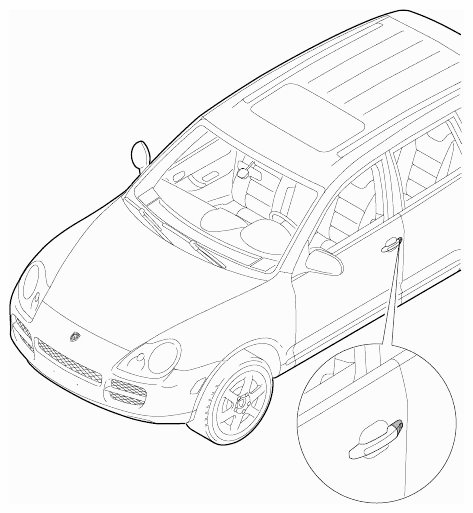

Fig 1: Identifying Lock Cylinder

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clip in lock cylinder cover.

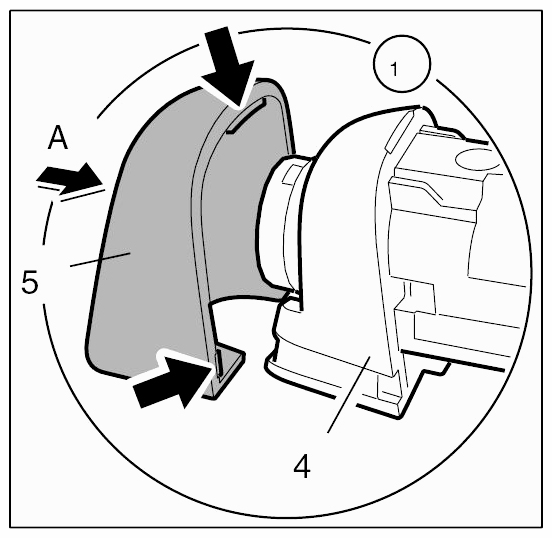

1. 1.1. Press cover -5- of lock cylinder -4- on -arrow A- , until locking tabs -Arrows- engage.

  Fig 2: Installing Lock Cylinder Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install lock cylinder.

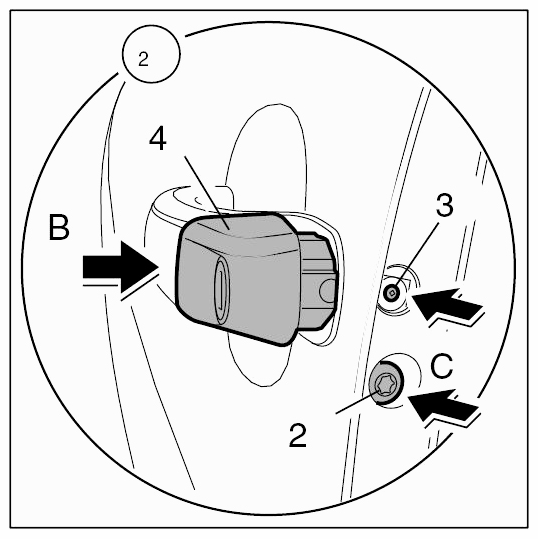

1. 2.1. Insert the car key into the lock cylinder and push the lock cylinder in -4- -arrow B- , turning the car key slightly to the right. Loosen fastening screws -2 and 3- slightly, if necessary, until the lock cylinder can be pushed in completely.
2. 2.2. Screw in fastening screws -2, 3- at the sides -arrows C- and tighten them to the specified tightening torque → Tightening torque: 3.5 ftlb.+/-0.5 ftlb. → Tightening torque: 0.5 ftlb. .

  Fig 3: Installing Lock Cylinder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip cap into place.

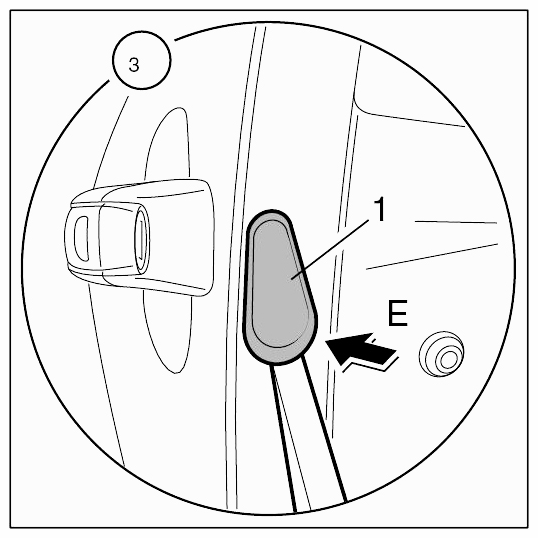

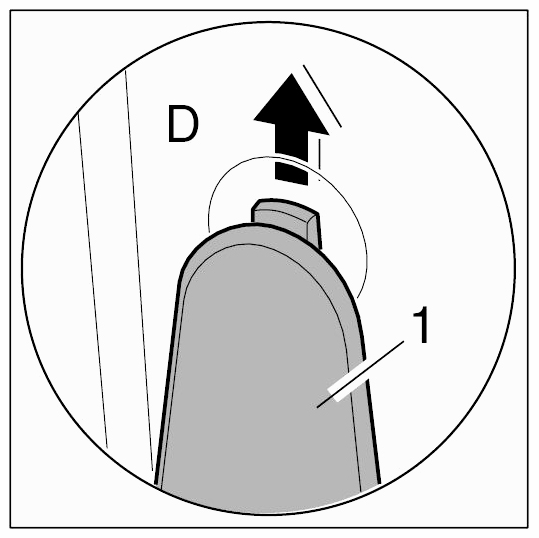

1. 3.1. Insert cap -1- at the top -arrow D- and clip it into position -arrow E- .

  Fig 4: Installing Clip Cap Using Tool (1 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 5: Installing Clip Cap Using Tool (2 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
