Removing Circulating Pump For Auxiliary Heater

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

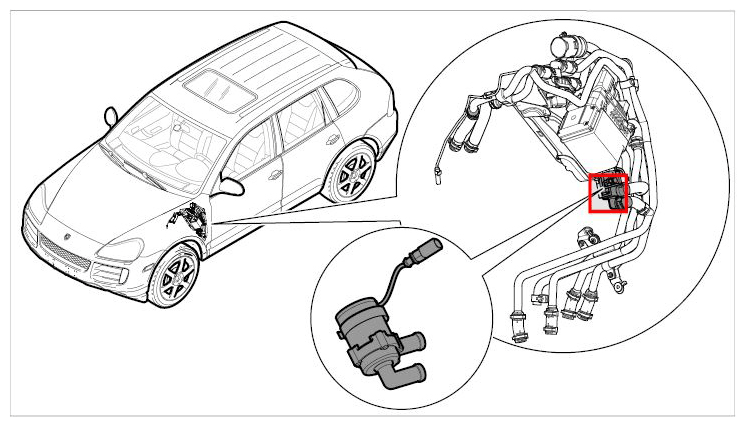

Fig 1: Identifying Auxiliary Heater Circulating Pump Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Before disconnecting the water lines, it is essential to observe the safety instructions in → WM 1001AW The most important working regulations and warning notes

Drain coolant. → Draining Coolant

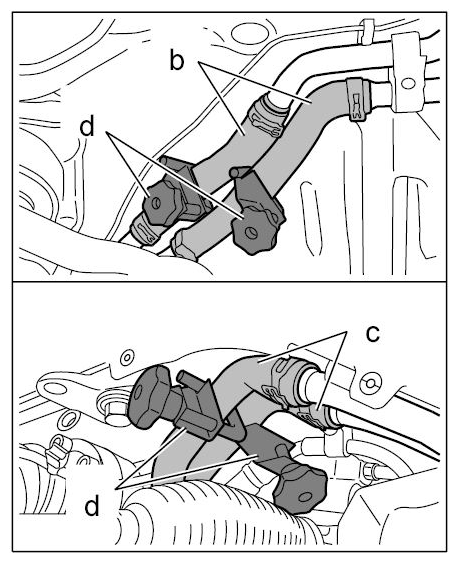

Clamp the two upper hoses -b- using a hose clamp 3094 -d- .

Fig 2: Identifying Upper And Lower Hoses Clamps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clamp the two lower hoses -c- using a hose clamp 3094 -d- .
Disconnect circulating pump plug connection.

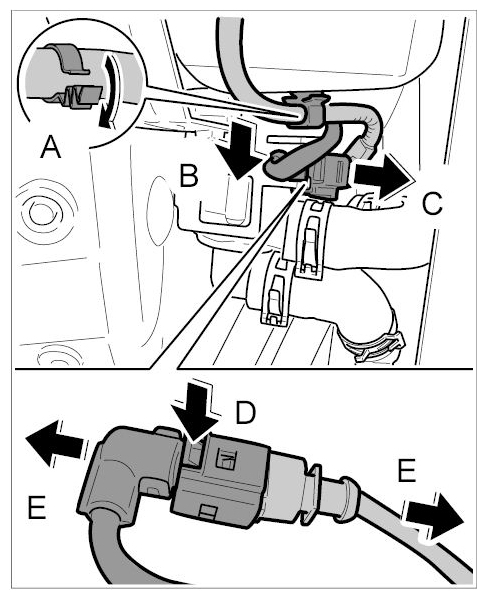

1. 4.1. Open line bracket -arrow A- and remove line -arrow B- .
2. 4.2. Remove plug connection on holder -arrow C- .
3. 4.3. Release plug connection -arrow D- and disconnect it -arrows E- .

  Fig 3: Disconnecting Circulating Pump Plug Connection
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

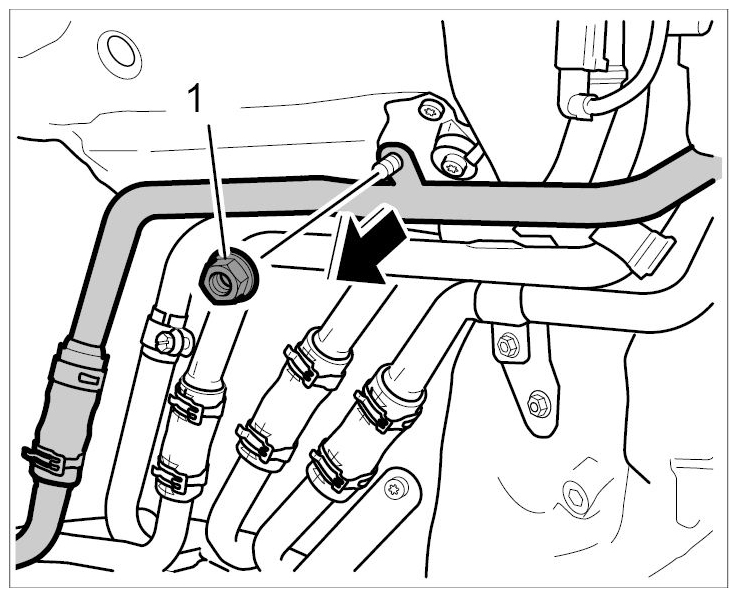

Unscrew fastening nut -1- and remove water tube from threaded bolt -arrow- .

Fig 4: Loosening Water Tube Bolt
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove circulating pump for auxiliary heater.
1. 6.1. Loosen spring band clamps using assembly pliers for spring band clamps, Cayenne hose connections Nr.72-1 (-arrows A-) and slide them down off the connections -arrows B- .
2. 6.2. Pull water hoses off the circulating pump -arrows C- .

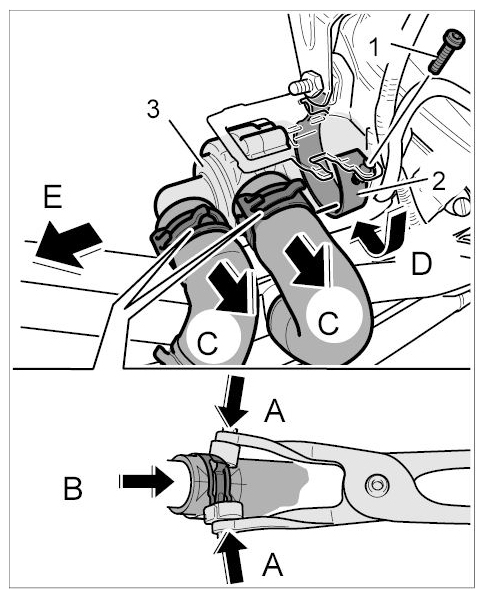

3. 6.3. Unscrew fastening screw -1- and open clamp -2- (-arrow D-) .
4. 6.4. Remove circulating pump for auxiliary heater -3- (-arrow E-) .

  Fig 5: Removing Auxiliary Heater Circulating Pump
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
