Removing Water Tube For Auxiliary Heating - Water Tube From Directional-Control Valve To Second Heat Exchanger

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

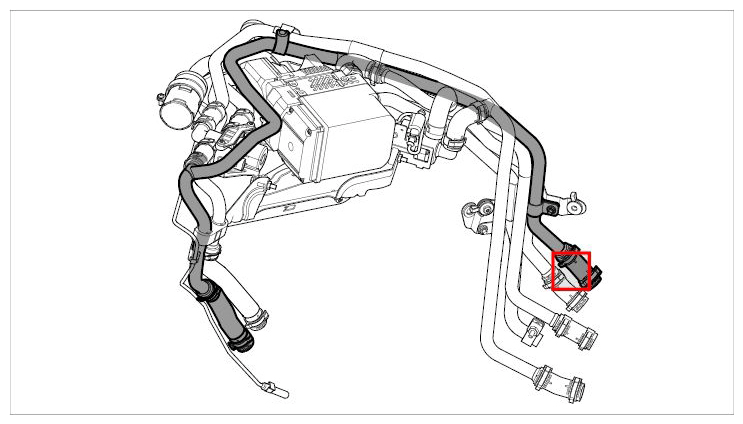

Fig 1: Identifying Water Tube Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

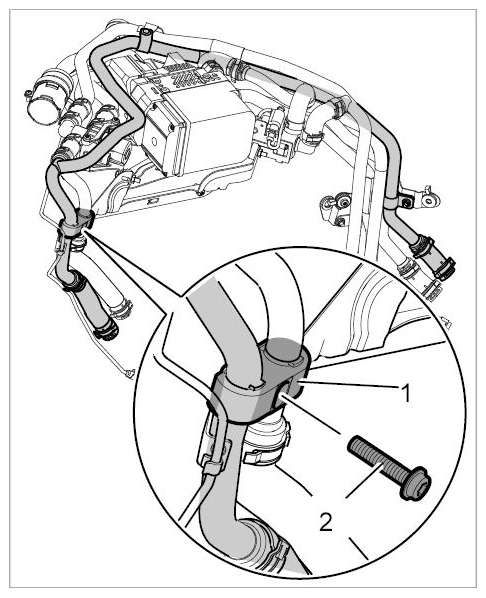

Unscrew fastening screw -2- and remove water tube holder -1- .

Fig 2: Identifying Water Tube Holder Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

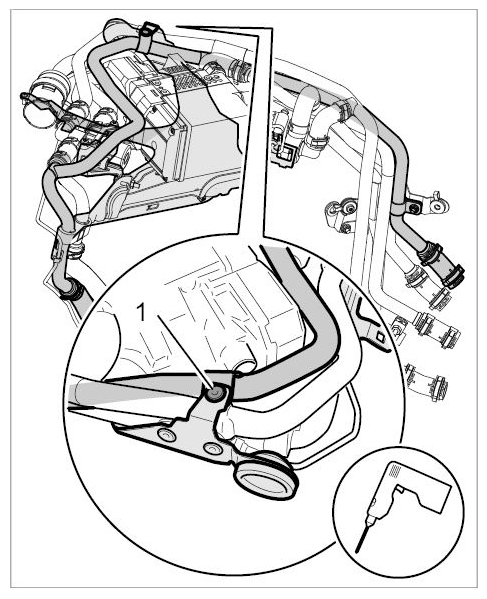

Drill out blind rivet -1- at the water tube.

Fig 3: Identifying Water Tube Blind Rivet
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove water tube holder.

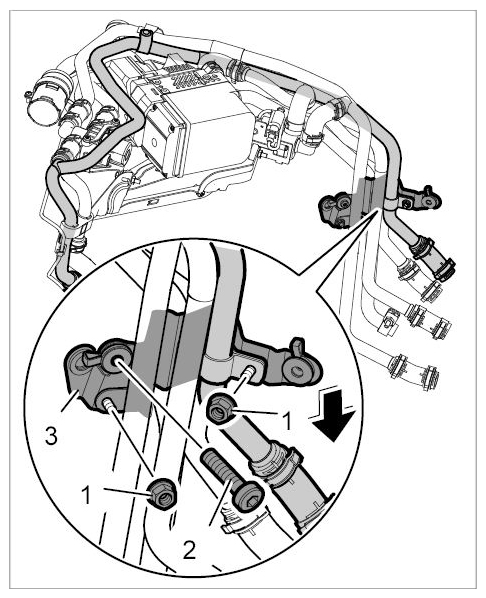

1. 3.1. Screw off both fastening nuts -1- .
2. 3.2. Unscrew fastening screw -2- .
3. 3.3. Remove water tube holder -3- (-arrow-) .

  Fig 4: Removing Water Tube Holder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

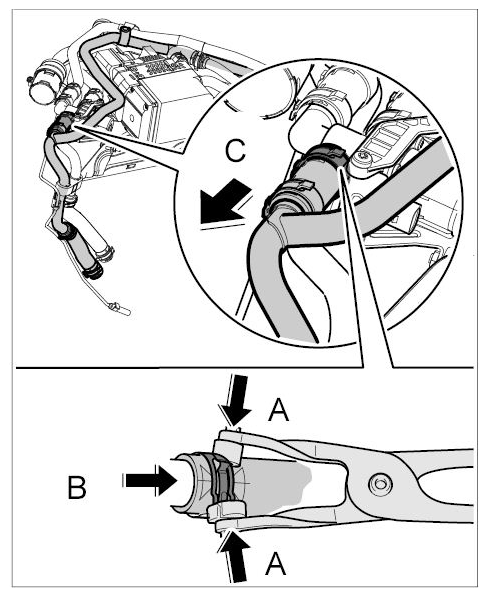

Loosen water tube at the heater.
1. 4.1. Undo spring band clamp using assembly pliers for spring band clamps, Cayenne hose connections Nr.72-1 (-arrows A-) and push down off the adapter -arrow B- .
2. 4.2. Pull water tube down at the heater -arrow C- and remove water tube.

  Fig 5: Loosening Water Tube From Heater
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

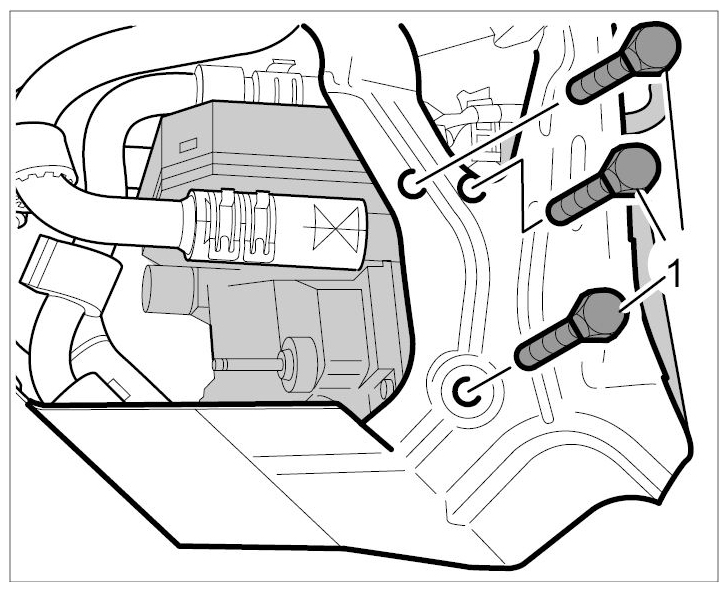

Unscrew fastening screws -1- on the heater.

Fig 6: Identifying Heater Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

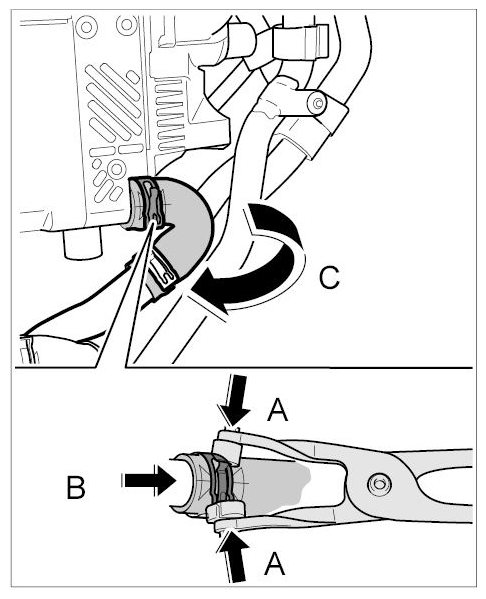

Loosen water tube on directional-control valve at the top.
1. 6.1. Loosen spring band clamp using assembly pliers for spring band clamps, Cayenne hose connections Nr.72-1 (-arrows A-) and push it down off the connection -arrow B- .
2. 6.2. Pull water tube off the directional-control valve -arrow C- and remove it.

  Fig 7: Loosening Water Tube On Directional-Control Valve At Top
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
