Installing Water Tube For Auxiliary Heating - Water Tube From Directional-Control Valve To Engine

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Place water tube in installation position -arrow- .

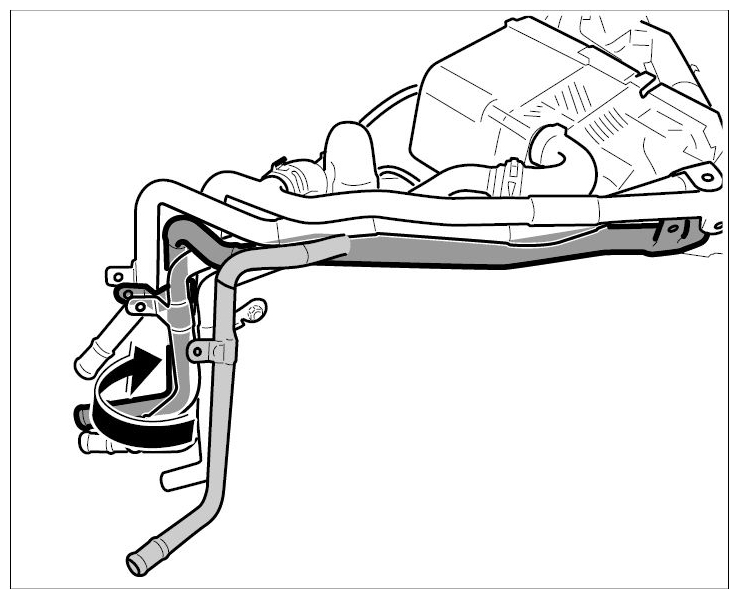

Fig 1: Fitting Water Tube
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure water tube on directional-control valve at the left.
Information
- Before connecting the water hoses, apply suitable rubber lubricant to the flanges.
1. 2.1. Slide water tube onto the directional-control valve at the left -arrow A- .
2. 2.2. Slide spring band clamp onto the connection using the assembly pliers for spring band clamps, Cayenne hose connections Nr.72-1 (-arrow B-) and align with the markings.
3. 2.3. Slacken spring band clamp -arrows C- and secure the hoses.

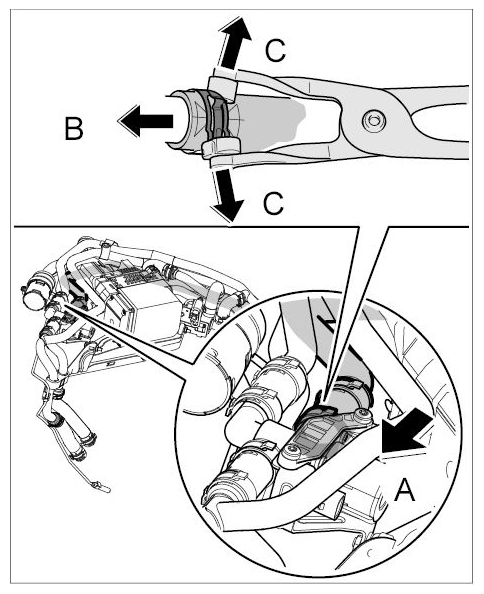

  Fig 2: Securing Water Tube On Directional-Control Valve At Left
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
