Removing Exhaust Pipe

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

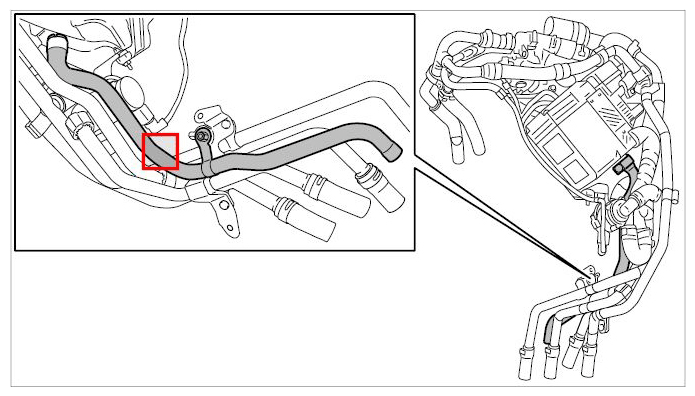

Fig 1: Overview Of Exhaust Pipe

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

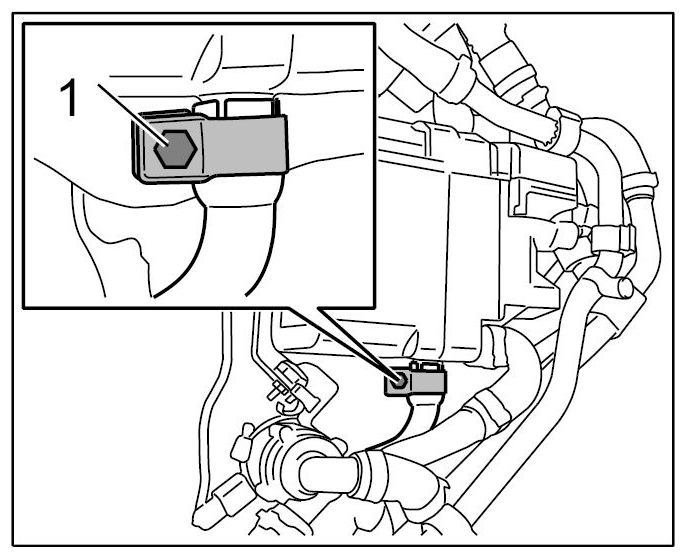

Undo fastening screw -1- .

Fig 2: Identifying Exhaust Pipe Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

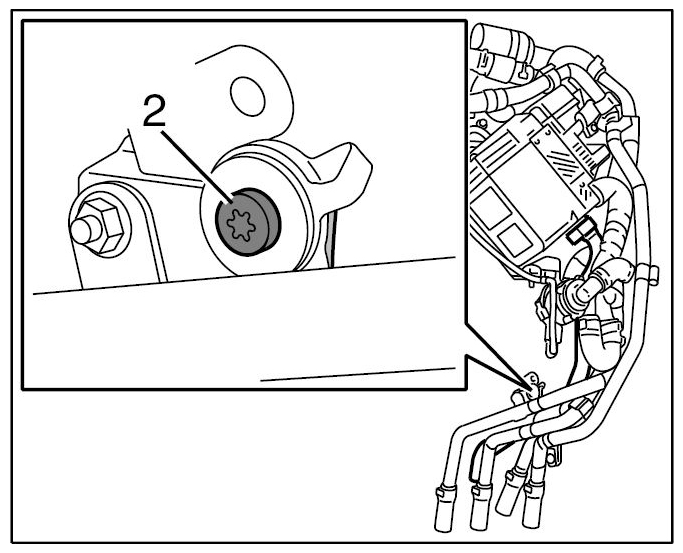

Unscrew fastening screw -2- .

Fig 3: Identifying Exhaust Pipe Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

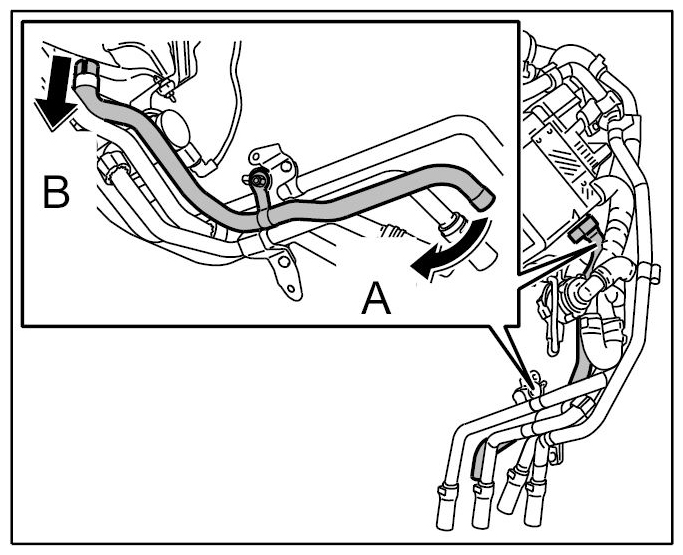

Turn exhaust pipe away to the rear -arrow A- and remove downwards -arrow B- .

Fig 4: Turning Exhaust Pipe
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
