Installing Exhaust Pipe

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

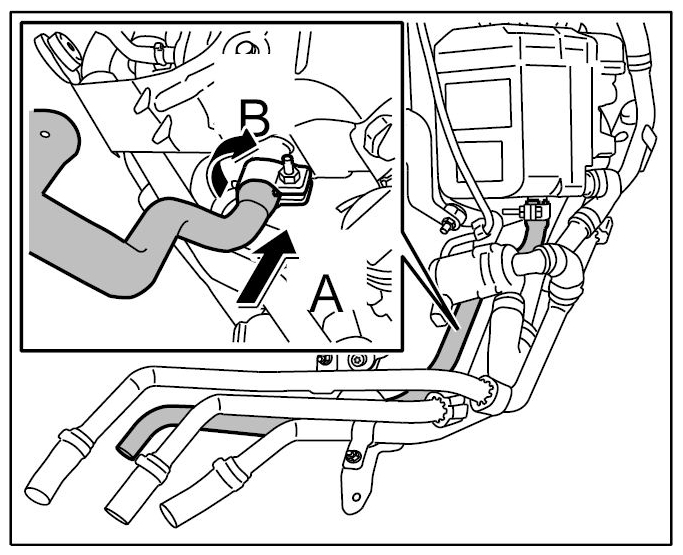

Place the exhaust pipe on the flange -arrow A- and turn toward mount -arrow B- .

Fig 1: Installing Exhaust Pipe On Flange
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

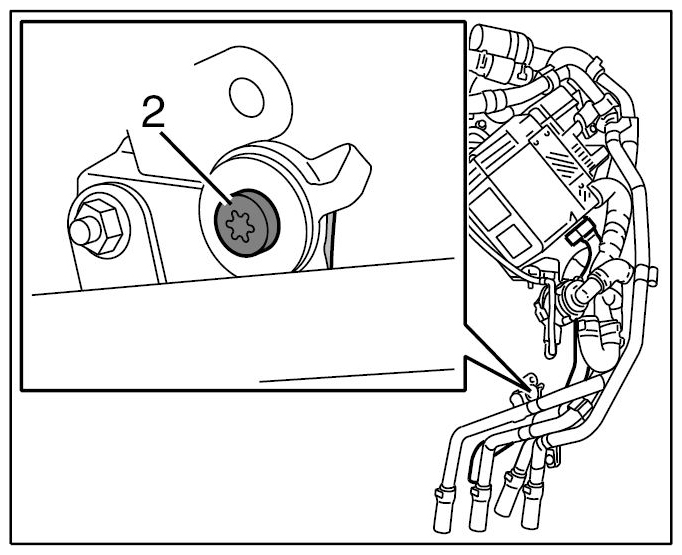

Screw down the exhaust pipe to mount using the fastening screw -2- . → Tightening torque: 3.5 ftlb.

Fig 2: Identifying Exhaust Pipe To Mount Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

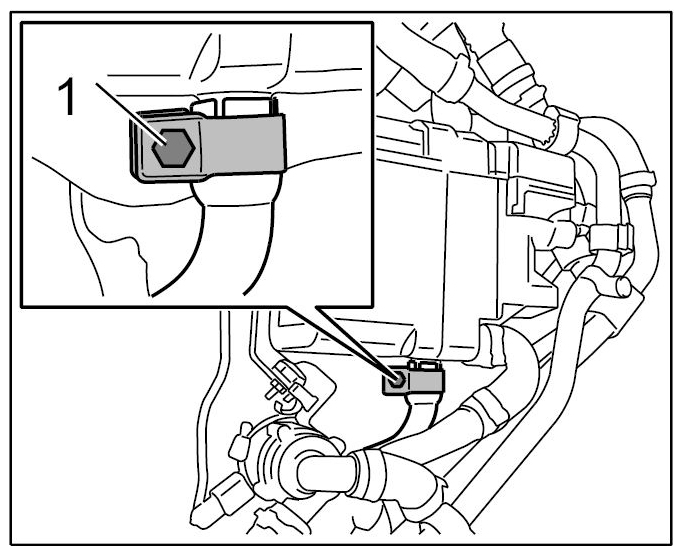

Tighten the fastening screw -1- .

Fig 3: Identifying Exhaust Pipe Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
