Removing Silencer

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Hot components

Risk of burns

→ Let hot components cool down.

→ Wear personal protective gear.

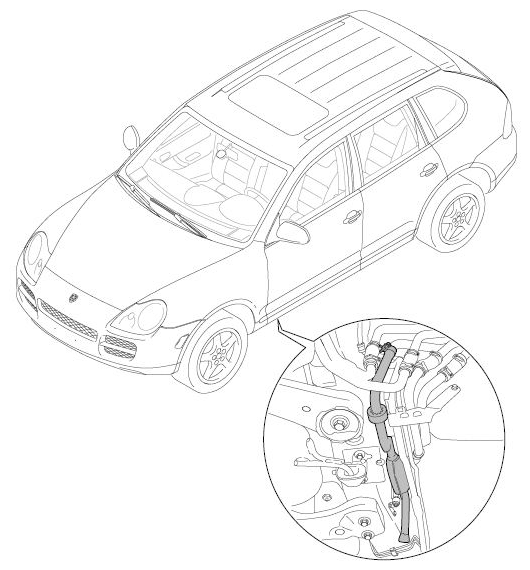

Fig 1: Overview Of Muffler

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew both fastening screws -arrow 1- .

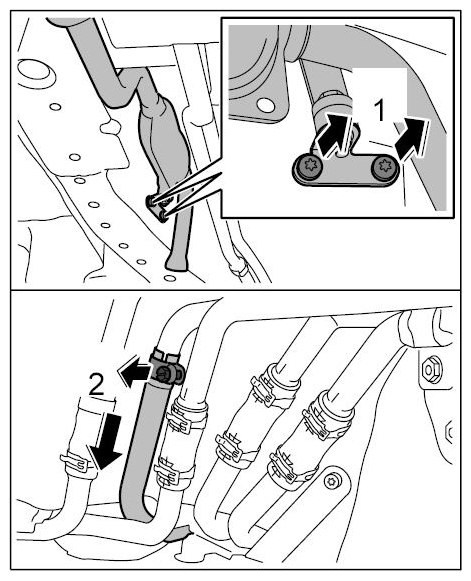

Fig 2: Removing Muffler Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Undo the fastening screw -arrow 2- and take out the muffler with the clamp downwards -arrow- .
