Installing Silencer

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the muffler to the exhaust pipe -arrow-  .

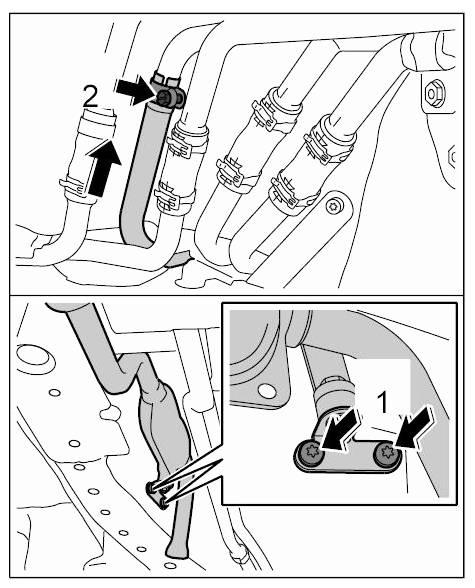

    Fig 1: Connecting Muffler To Exhaust Pipe
    G09414329Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Tighten the mount with the fastening screws -arrow 1-  . → Tightening torque: 6 ftlb.
  3. Slide the clamp over the connection area -arrow-  and screw down the fastening screw -arrow 2-  .
