Removing Fuel Line - Wheel Housing Connection To Heater

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

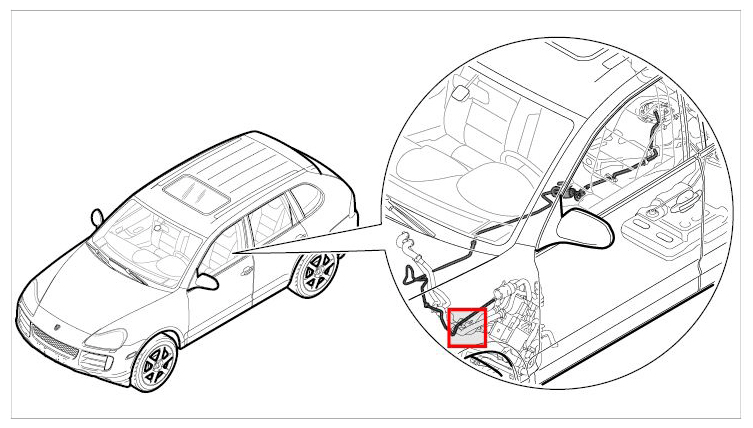

Fig 1: Identifying Installation Position Of Fuel Lines
G09414311Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release the clamp -arrow A-  and pull the fuel line off the housing -arrow B-  .

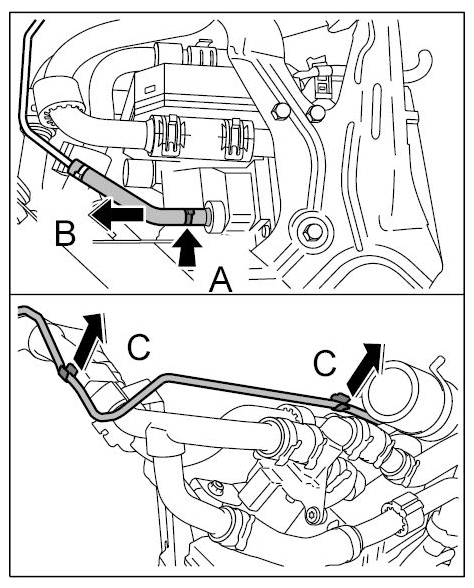

    Fig 2: Pulling Fuel Line Off Housing
    G09414312Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull the fuel line out of the clip -arrow C-  .
