Installing Fuel Line - Wheel Housing Connection To Heater

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the fuel line to the adapter -arrow A-  and secure with a new hose clamp -arrow B-  .

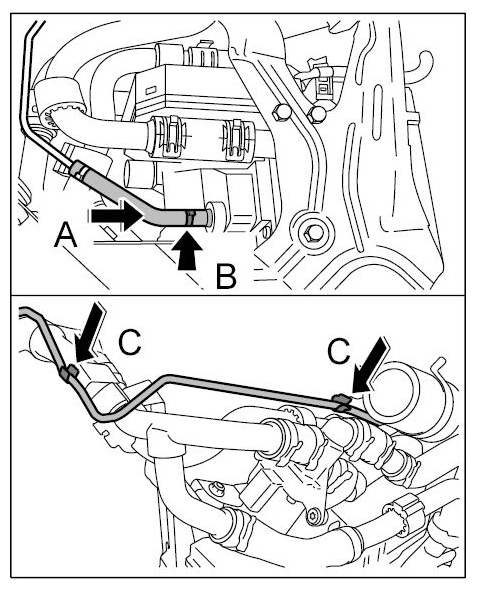

    Fig 1: Connecting Fuel Line To Adapter
    G09414313Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Press fuel line into the retaining clip -arrows C-  .
  3. Fill fuel line. → Filling The Fuel Line
