Installing Fuel Line - Fuel Pump To Wheel Housing Connection

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Install fuel line.
1. 1.1. Coat rubber sleeve -arrow A- with a suitable sliding compound.
2. 1.2. Slide fuel line from below along the cardan tunnel -arrows B- and guide it through and out at the wheel housing -arrows C- . Twist the fuel line slightly when installing it if necessary.
3. 1.3. Press rubber sleeve -arrow A- into the wheel housing -arrow C- until it engages securely in the body.

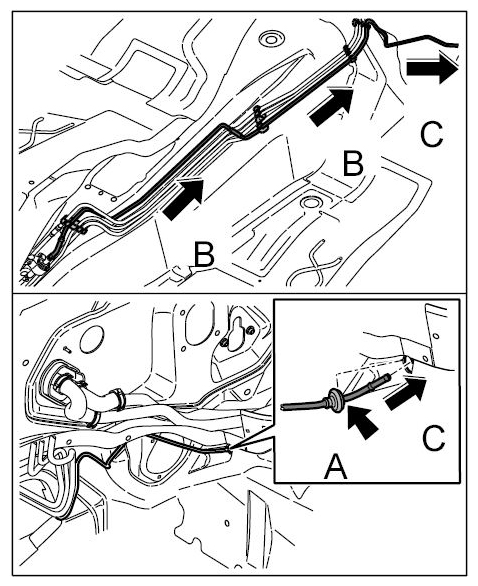

  Fig 1: Installing Fuel Line In Area Of Transmission And Wheel Housing
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect and secure fuel line.
1. 2.1. Push fuel line in the wheel housing with the fuel hose onto the connection -arrow- and secure with a new hose clamp -1- .
2. 2.2. Connect fuel line with the fuel hose onto the fuel pump -arrow- and secure with a new hose clamp -1- .

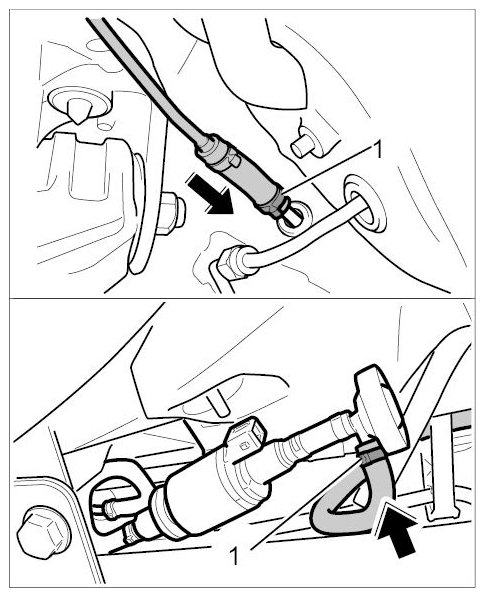

  Fig 2: Securing Fuel Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press fuel line into line bracket.
1. 3.1. Press fuel line into line bracket -arrows A- .
2. 3.2. Close line bracket -arrows B- until the locking lugs -arrows C- engage securely.

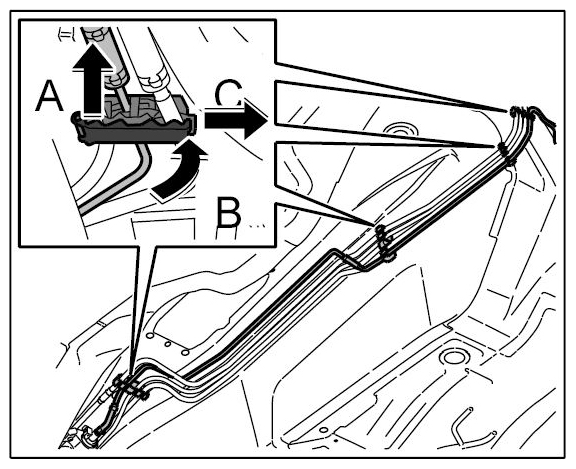

  Fig 3: Pressing Fuel Line Into Line Bracket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install trim panel.
1. 4.1. Insert trim panel and screw down with the fastening screw -arrow 1- . → Tightening torque: 2 Nm (1.5 ftlb.)
2. 4.2. Tighten fastening nuts -arrows 2- . → Tightening torque: 4.5 Nm (3.5 ftlb.)

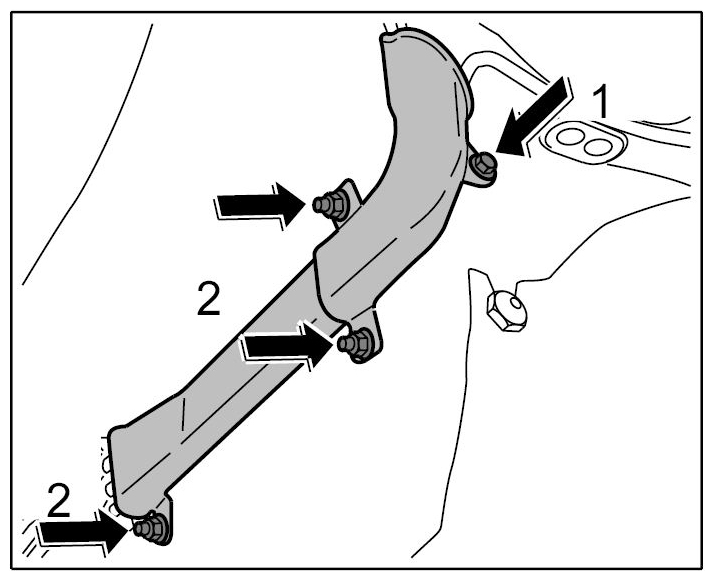

  Fig 4: Locating Trim Panel Fastening Nuts
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Slide fuel pump together with the rubber sleeve onto the holder -arrow- .

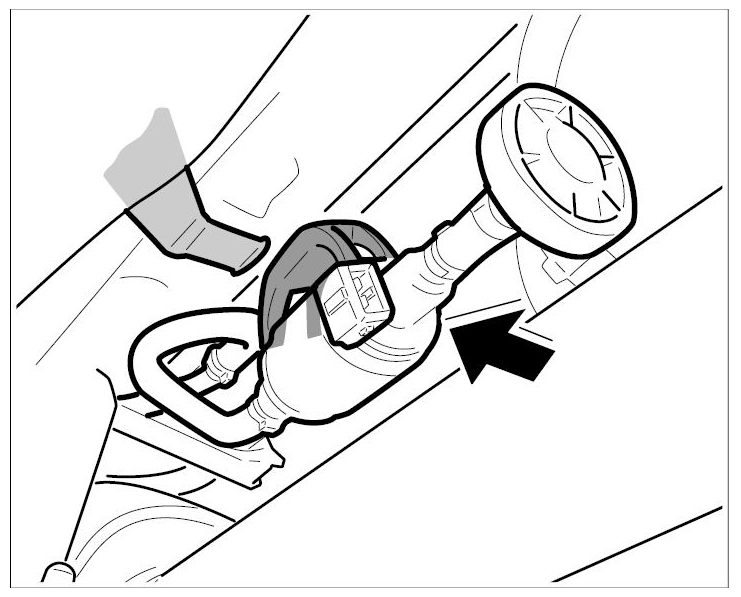

Fig 5: Sliding Fuel Pump And Rubber Sleeve Onto Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in connector on the fuel pump -arrow- until the connector engages securely.

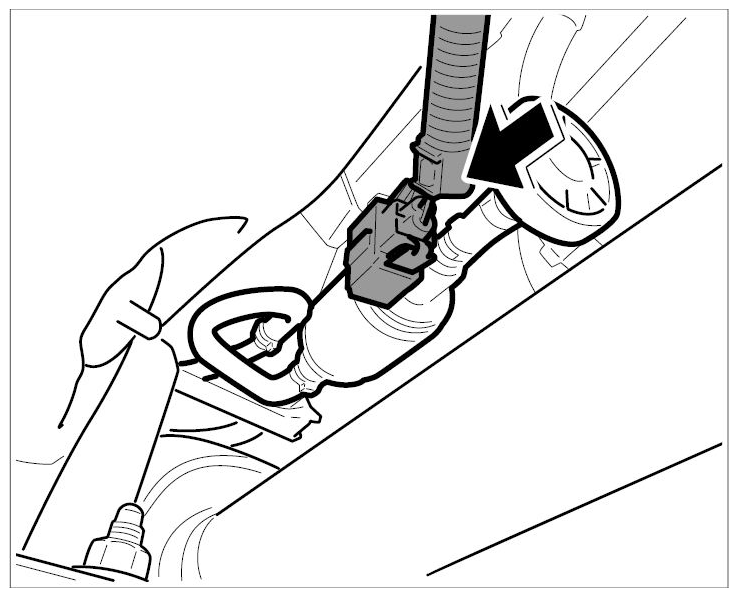

Fig 6: Plugging In Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fill the fuel line. → Filling The Fuel Line
