Removing Fuel Line - Fuel Pump To Tank

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

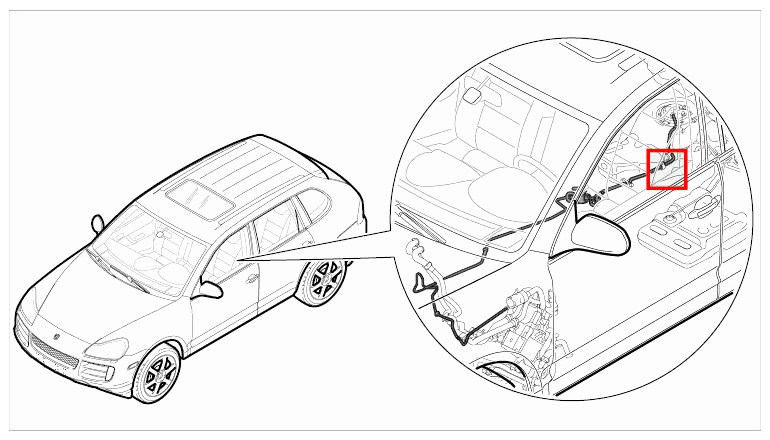

Fig 1: Identifying Fuel Lines Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

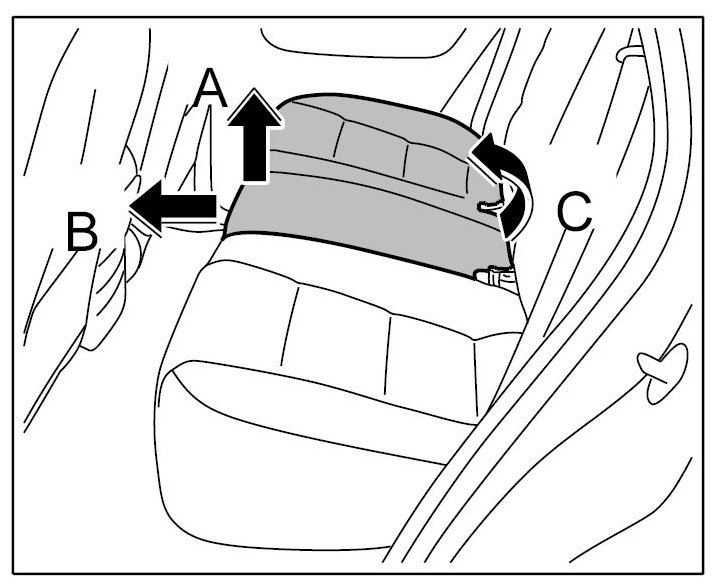

Lift front edge of right rear seat -arrow A- , pull out to the front -arrow B- , and fold forward -arrow C- .

Fig 2: Lifting Front Edge Of Right Rear Seat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

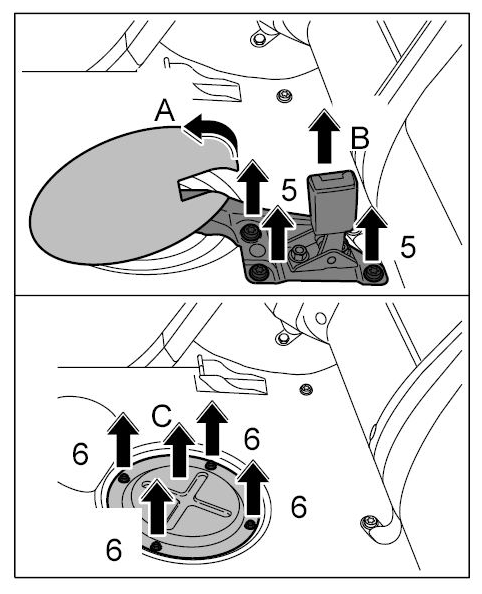

Remove tank cut-out cover.
1. 2.1. Cut out the carpeted floor along the perforation and fold forward -arrow A- .
2. 2.2. Unscrew fastening screws -arrows 5- and remove the bracket together with the seat-belt buckle -arrow B- .
3. 2.3. Unscrew fastening nuts -arrows 6- and remove the tank cut-out cover -arrow C- .

  Fig 3: Removing Tank Cut-Out Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Information

Before disconnecting the fuel line, it is essential to observe the safety instructions in → WM 1001AW The most important working regulations and warning notes

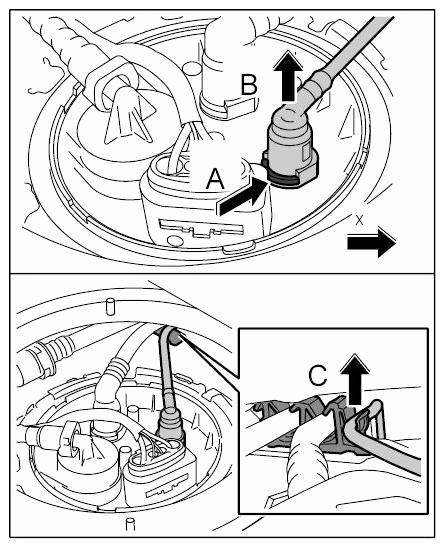

Undo fuel line on tank.
1. 3.1. Release plug-in coupling -arrow A- and pull the fuel line off the connection -arrow B- .
2. 3.2. Remove fuel line from the bracket -arrow C- .

  Fig 4: Pulling Off Plastic Lines
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Raise the vehicle. → WM 4000V0 Lifting the vehicle

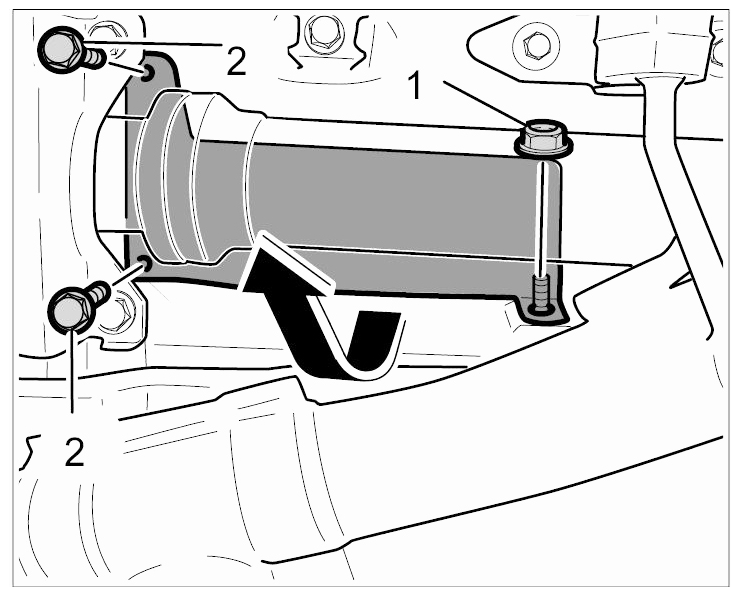

Remove cover plate.
1. 5.1. Unscrew fastening nut -1- .
2. 5.2. Unscrew fastening screws -2- and remove cover plate -arrow- .

  Fig 5: Removing Cover Plate
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

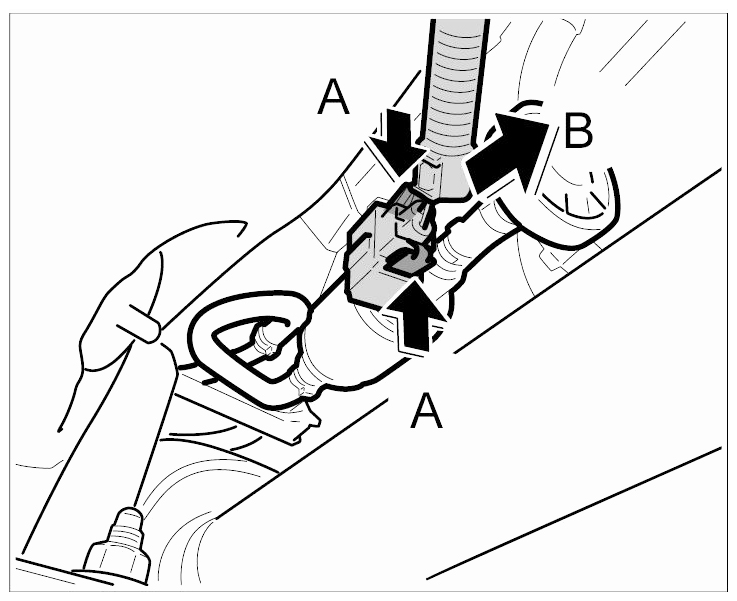

Release connector -arrows A- and pull it off the fuel pump -arrow B- .

Fig 6: Pulling Off Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

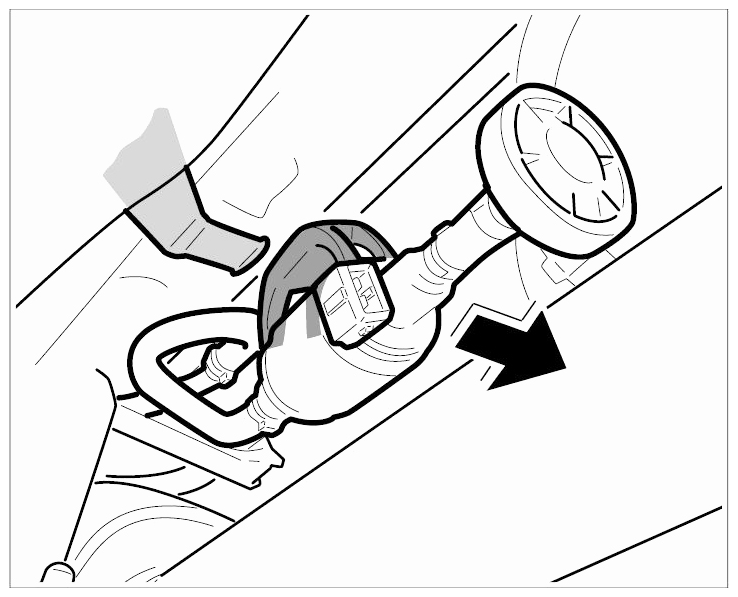

Pull fuel pump together with the rubber sleeve off the holder -arrow- .

Fig 7: Pulling Fuel Pump And Rubber Sleeve Off Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Before disconnecting the fuel line, it is essential to observe the safety instructions in → WM 1001AW The most important working regulations and warning notes

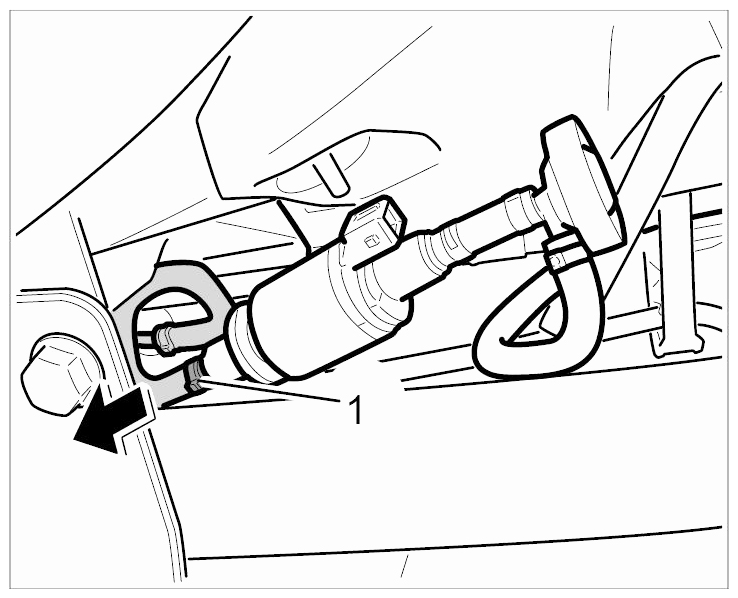

Release hose clamp -1- and pull the fuel line off the fuel pump -arrow- .

Fig 8: Loosening Fuel Line On Fuel Pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

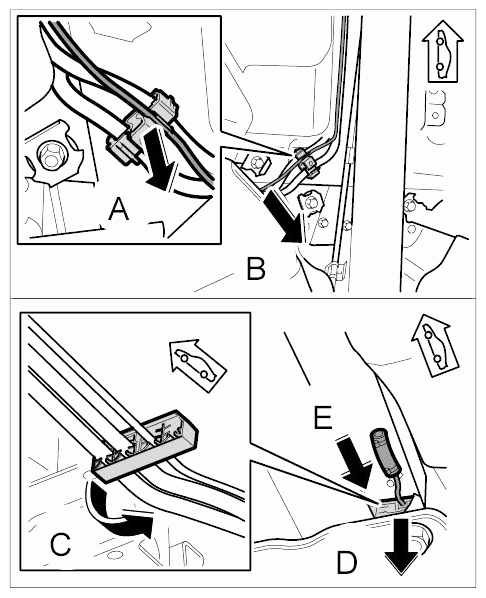

Remove fuel line.
1. 9.1. Unclip fuel line out of the rear line bracket -arrow A- and pull away downwards along the tank -arrow B- .
2. 9.2. Open the front line bracket -arrow C- and remove the line downwards -arrow D- .
3. 9.3. Pull out fuel line to the rear -arrow E- .

  Fig 9: Removing Fuel Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
