Removing Fuel Line - Wheel Housing Connection To Heater

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

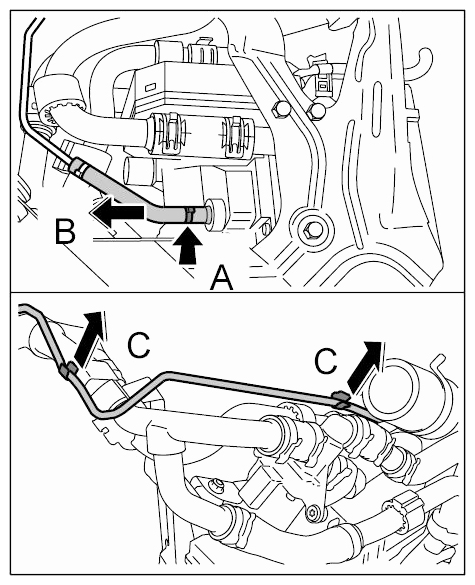

  1. Release the clamp -Arrow A-  and pull out the fuel line from the housing -Arrow B-  .
    Fig 1: Pulling Fuel Line From Housing
    G09414281Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull out fuel line from the clip -Arrow C-  .
