Removing Fuel Line - Fuel Pump To Wheel Housing Connection Point

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

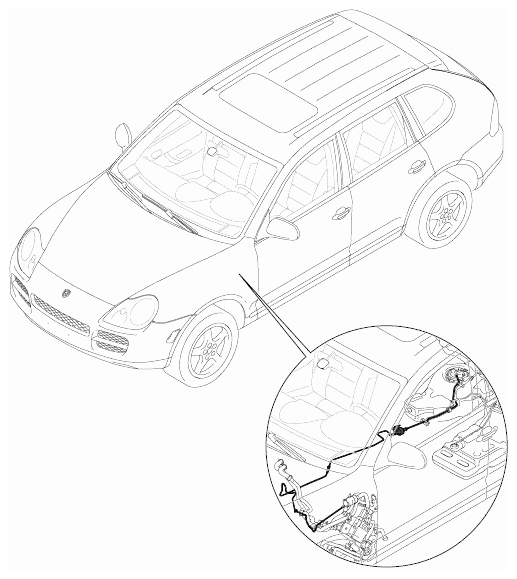

Fig 1: Overview Of Fuel Lines

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The direction of travel is identified by an arrow with the designation x

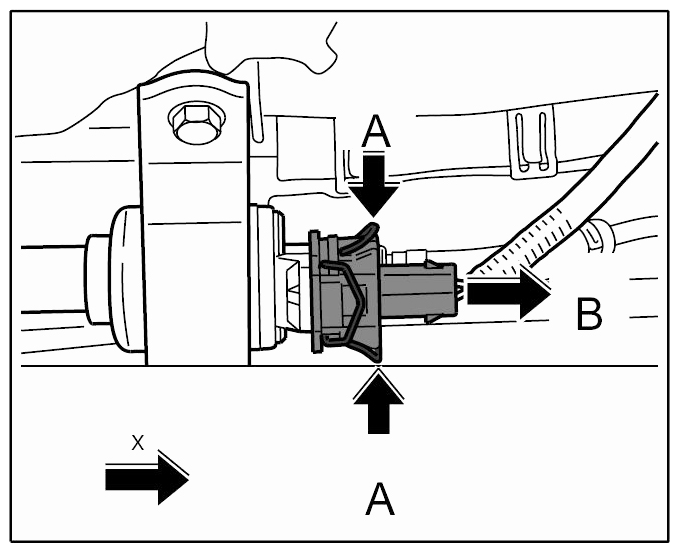

Release the plug -arrows A- and pull off -arrow B- .

Fig 2: Removing Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

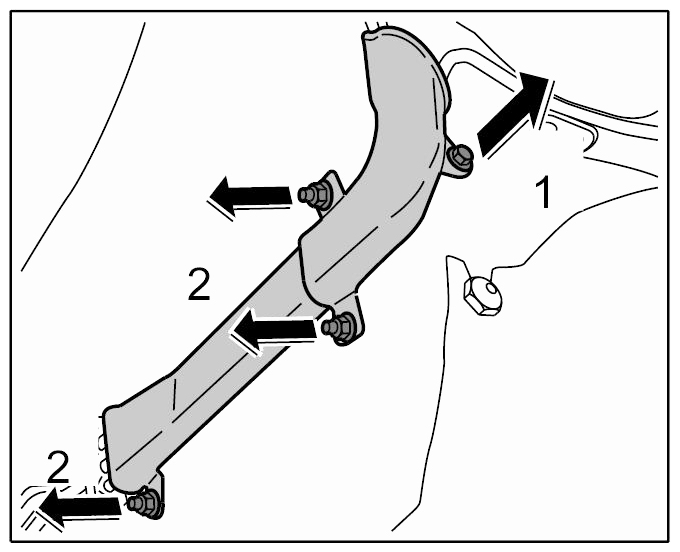

Unscrew fastening screw -arrows 1- .

Fig 3: Removing Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew the fastening nuts -arrows 2- and remove the cover.

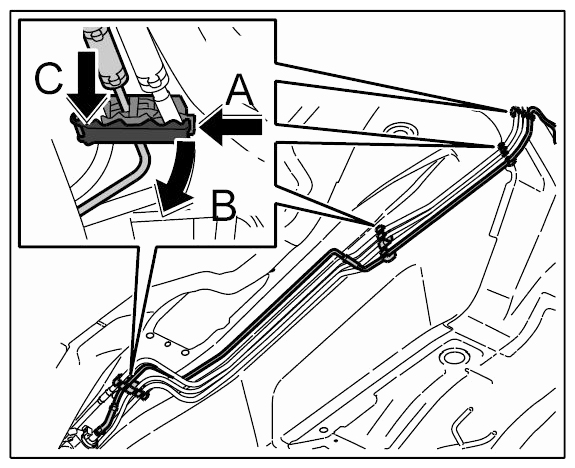

Release the line holder -arrow A- , open it -arrow B- and unclip the fuel line -arrow C- .

Fig 4: Removing Line Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Before disconnecting the fuel line, it is essential to observe the safety instructions in → WM 1001AW The most important working regulations and warning notes

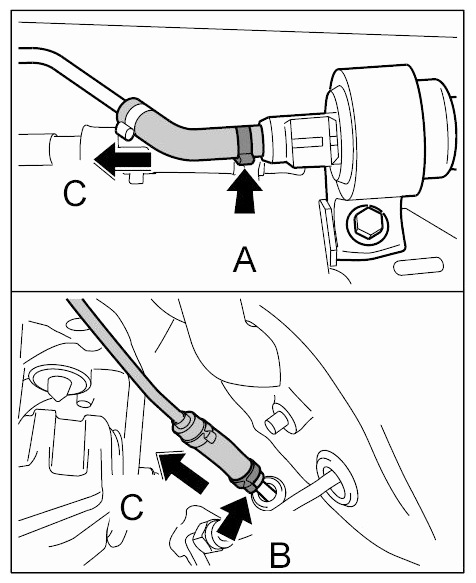

Release the clamp lugs -arrow A- on the fuel pump and on the connection point in the wheel housing -arrow B- .

Fig 5: Removing Fuel Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull out the line on both ends of the connections -arrows C- .

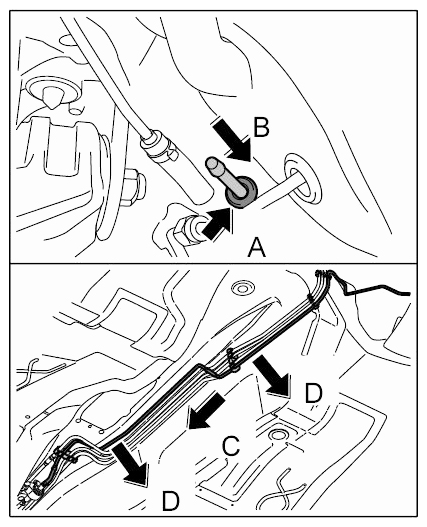

Press out the line with the rubber grommet -arrow A- inwards -arrow B- .

Fig 6: Pressing Out Line And Rubber Grommet
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the fuel line first to the rear -arrow C- , and then downward -arrows D- . If necessary, twist the fuel line slightly when removing it.
