Removing Fuel Line - Fuel Pump To Tank

→ Secure components to prevent them from falling down.

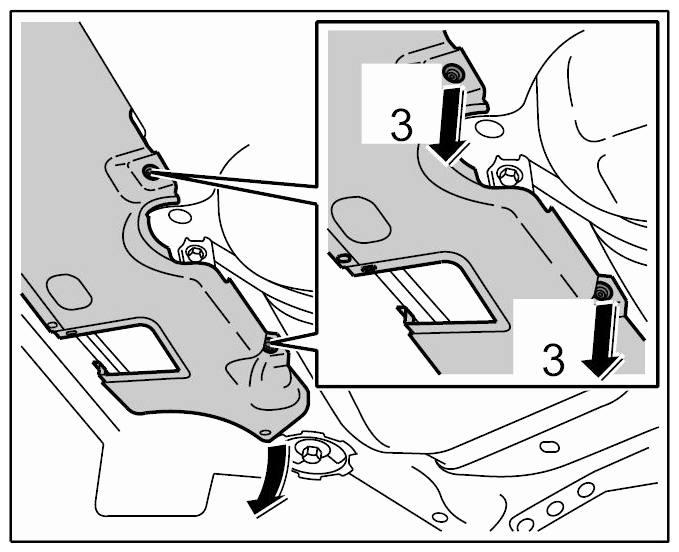

1. Undo fastening screws -3-  and pull cover down and away -arrow-  .
   Fig 1: Removing Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

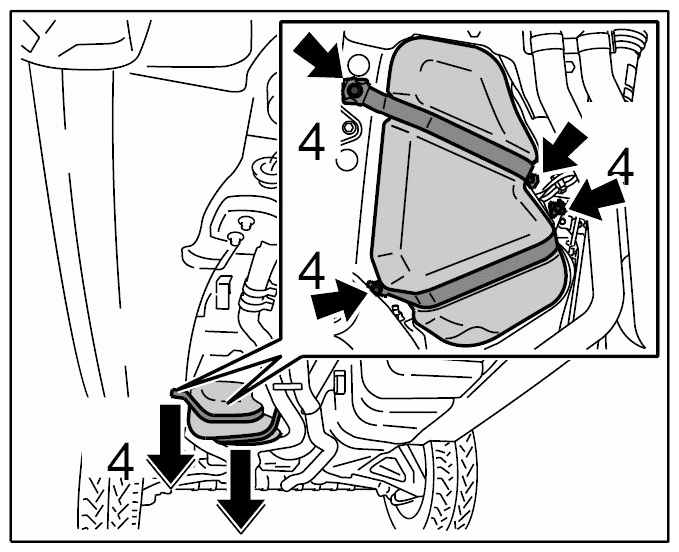

2. Loosen the fastening screws -arrow 4- -  do not unscrew them completely - and lower the tank on the right side arrow -arrow-  .
   Fig 2: Locating Tank Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

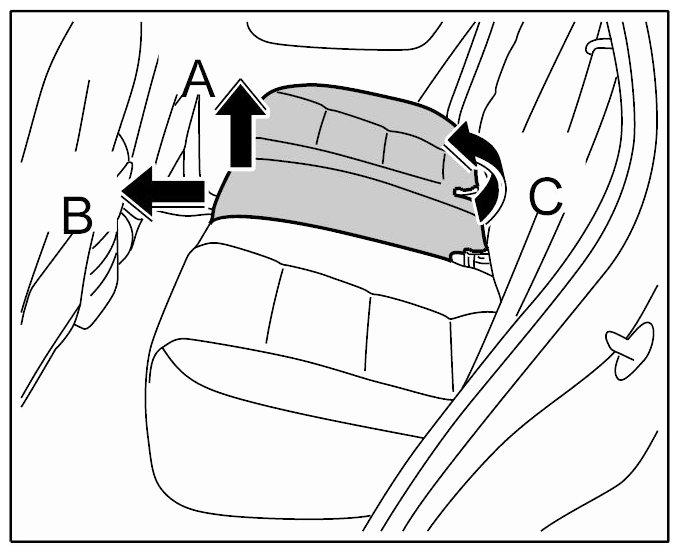

3. Lift front edge of right rear seat -arrow A-  , pull out to the front -arrow B-  and fold forward -arrow C-  .
   Fig 3: Lifting Right Rear Seat Front Edge

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

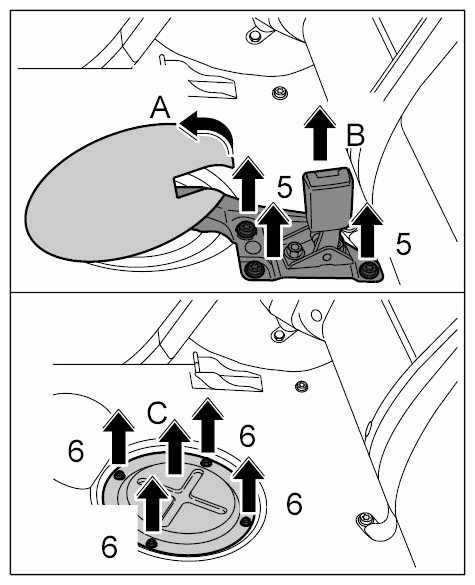

4. Cut out the floor carpeting along the perforation and fold forward -arrow A-  .
   Fig 4: Removing Seat-Belt Buckle And Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Undo the fastening screws -arrows 5-  and take out the bracket with the seat-belt buckle -arrow B-  .
6. Unscrew the fastening nuts -arrows 6-  and remove the cover -arrow C-  .
   WARNING: Highly inflammable or explosive materials

   • Danger of fire or explosion

   → Avoid contact with hot parts or sources of ignition.

   → Use suction to remove ignitable vapours.

   → Attach warning sign in a clearly visible position.

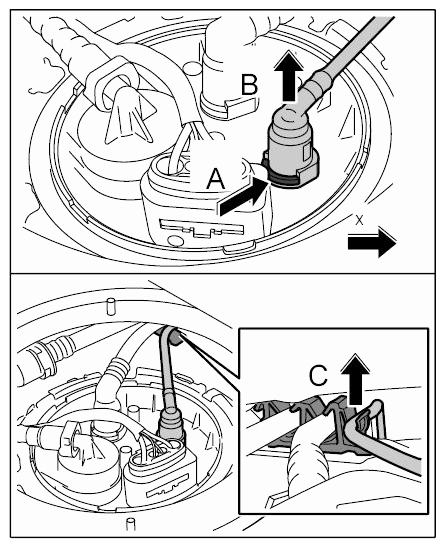

7. Press in the locking mechanism -arrow A-  and pull off the fuel line from the connection -arrow B-  .
   Fig 5: Pulling Off Plastic Cover From Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Take the line out of the bracket -arrow C-  .

   Information

   • The direction of travel is shown by an arrow with the designation "x"

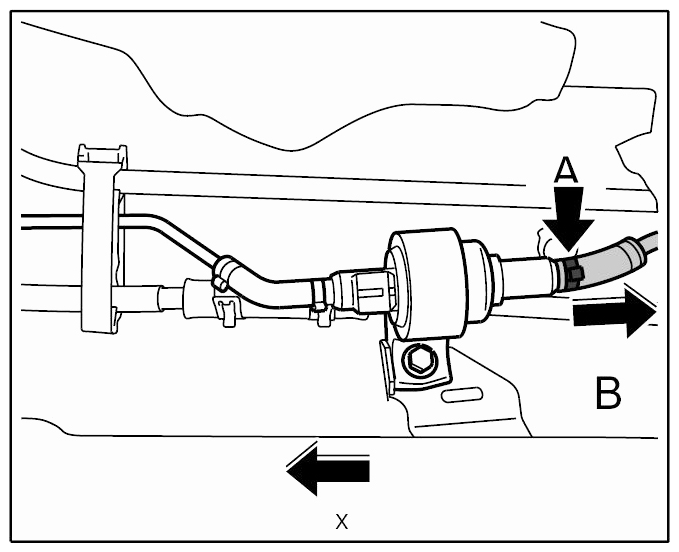

9. Release hose clamp -arrow A-  and pull off line from fuel pump -arrow B-  .
   Fig 6: Releasing Hose Clamp

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • The direction of travel is shown by an arrow with the designation "x"

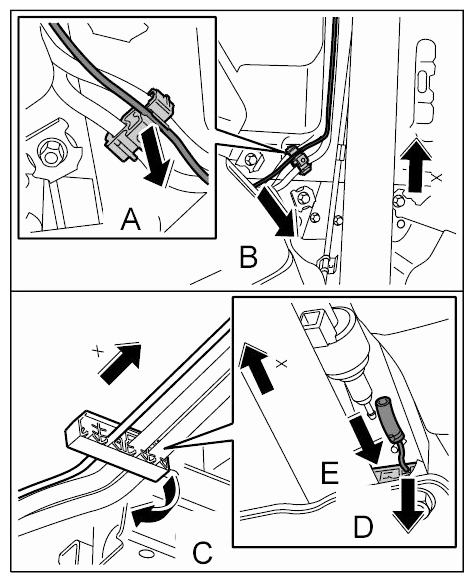

10. Unclip the line from the rear line holder -arrow A-  and pull down and away from along the tank -arrow B-  .
    Fig 7: Removing Line From Rear Line Holder

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
11. Open the front holder -arrow C-  and remove line downward -arrow D-  .
12. Remove line to the rear -arrow E-  .
