Installing Fuel Line - Wheel Housing Connection To Heater

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

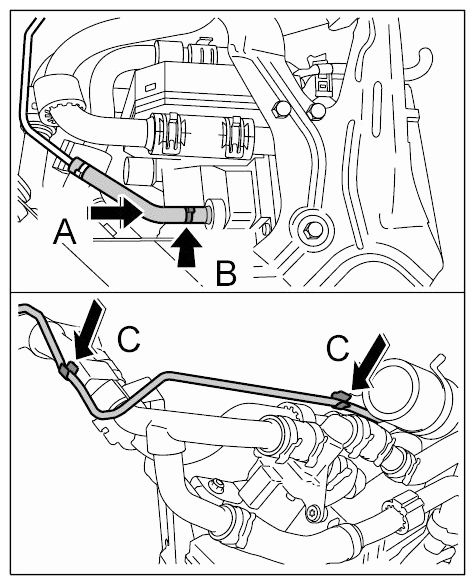

  1. Push fuel line onto the adapter -Arrow A-  and fasten with a new clamp -Arrow B-  .
    Fig 1: Pushing Fuel Line Onto Adapter
    G09414292Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Press fuel line into retaining clip -Arrows C-  .

    Information

    • The direction of travel is shown by an arrow with the designation "x"

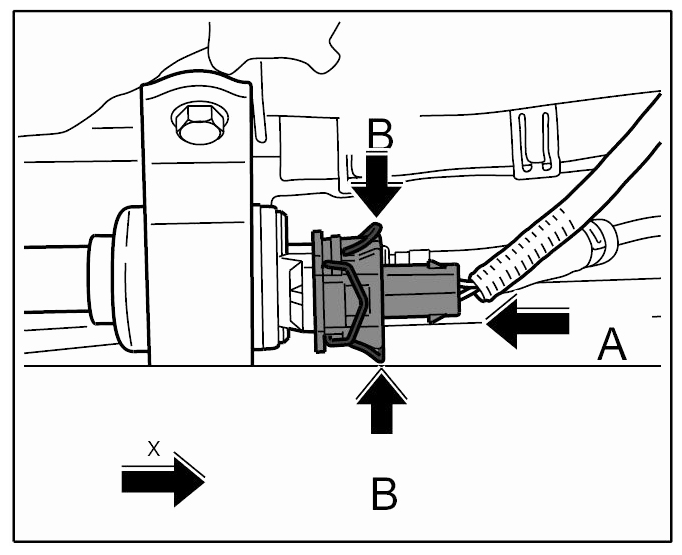

  3. Push on connector -Arrow A-  until the locking tabs -Arrows B-  are felt to engage.
    Fig 2: Pushing Connector
    G09414293Courtesy of PORSCHE CARS NORTH AMERICA, INC.
