Installing Fuel Line - Fuel Pump To Wheel Housing Connection Point

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Before installing the fuel line, apply a suitable rubber lubricant (tyre mounting paste) on the wheel housing side of the rubber sleeve.

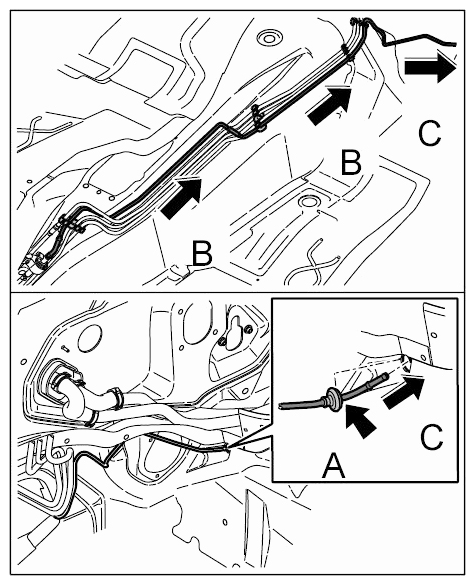

Slide the fuel line from below along the transmission -Arrows B- and guide it outward through the wheel housing. If necessary, twist the fuel line slightly when installing it.

Fig 1: Installing Fuel Line In Transmission And Wheel Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press rubber sleeve into wheel housing -Arrow C- until it is felt to engage in the body.

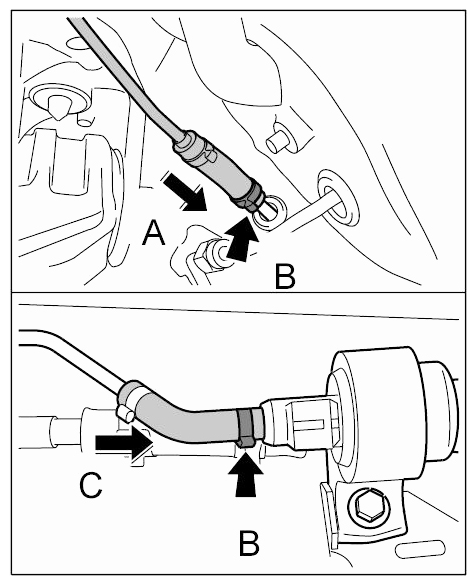

Insert fuel line in the wheel housing into the fuel hose -Arrow A- and fasten with a new hose clamp -Arrow B- .

Fig 2: Fastening Fuel Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push fuel line with fuel hose onto the fuel pump -Arrow C- and fasten with a new hose clamp -Arrow B- .

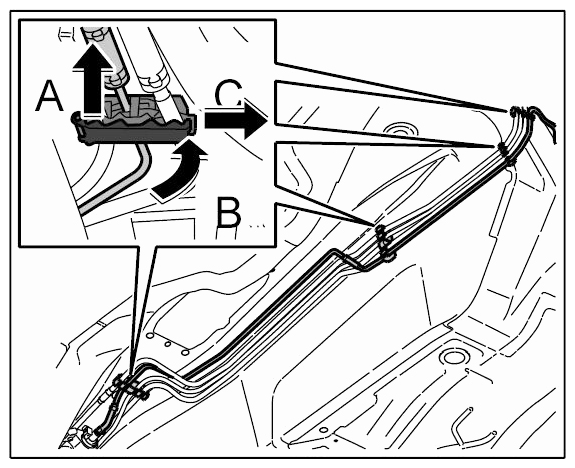

Press fuel line into holder -Arrow A- .

Fig 3: Pressing Fuel Line Into Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close holder -Arrow B- until locking tabs are felt to engage -C- .

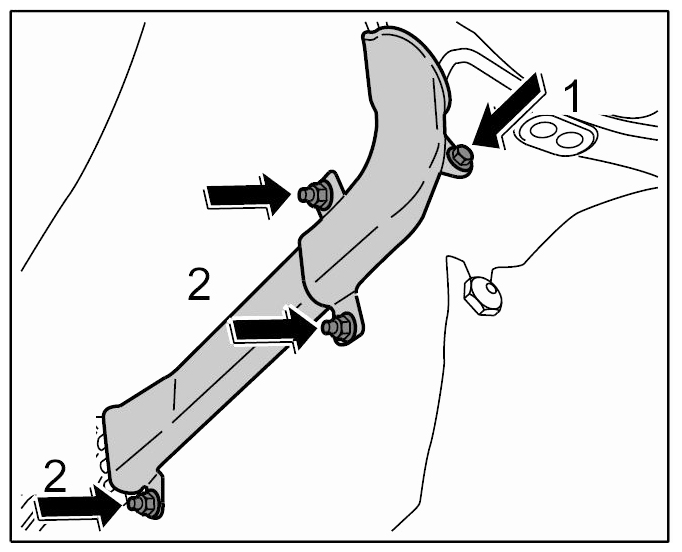

Install the cover and screw down using fastening screws -Arrow 1- and fastening nuts -Arrows 2- . → Tightening torque: 1.5 ftlb. → Tightening torque: 3.5 ftlb.

Fig 4: Tightening Cover Bolts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ WM 825419 REMOVING AND INSTALLING FUEL LINE - FUEL PUMP TO TANK
