Removing Fuel Pump

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

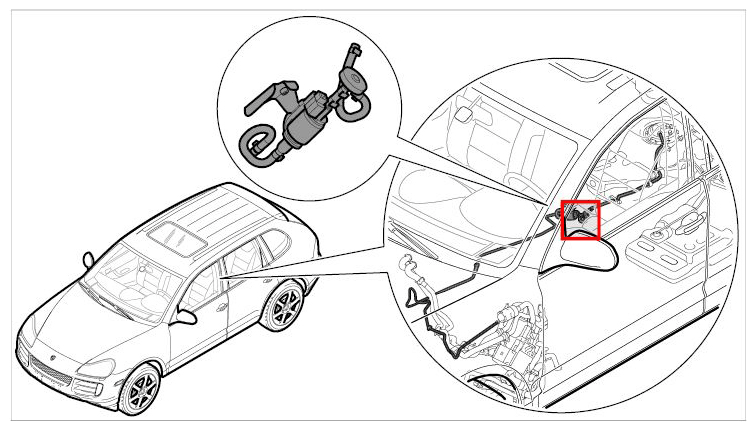

Fig 1: Identifying Installation Position Of Fuel Pump

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Before disconnecting the fuel line, it is essential to observe the safety instructions in → WM 1001AW The most important working regulations and warning notes

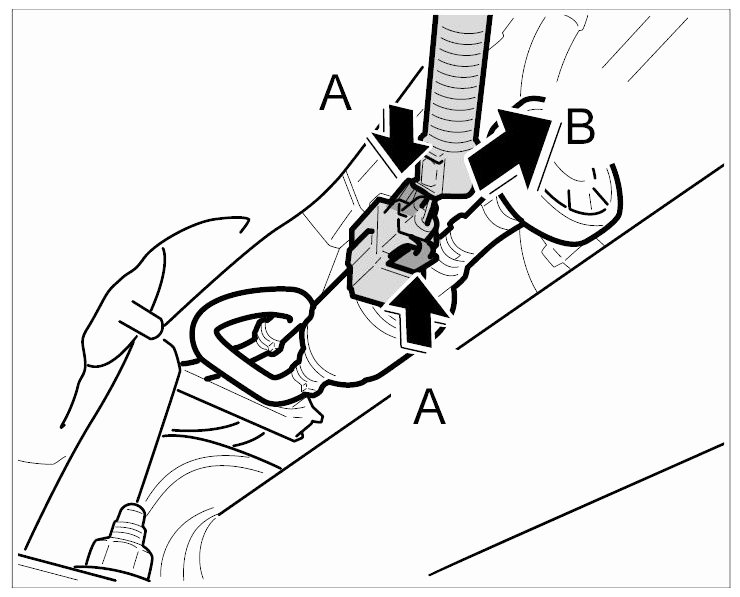

Release connector -arrows A- and pull it off the fuel pump -arrow B- .

Fig 2: Pulling Off Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

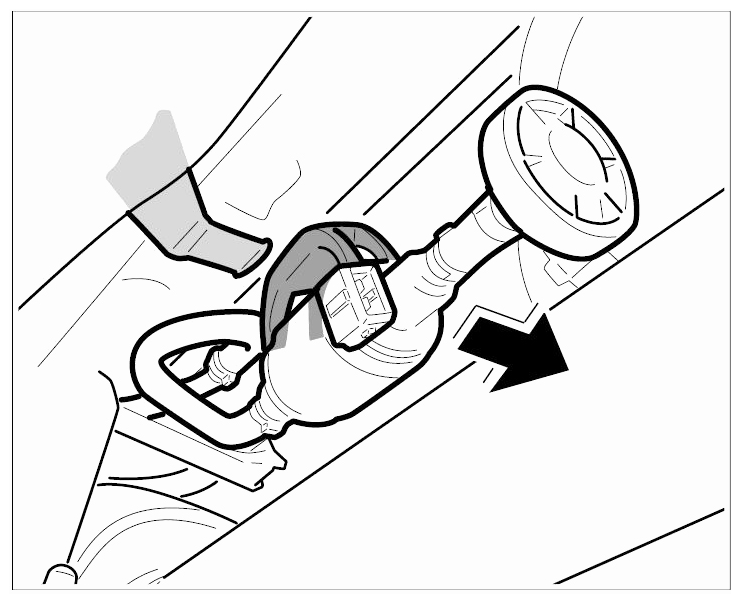

Pull fuel pump together with the rubber sleeve off the holder -arrow- .

Fig 3: Pulling Fuel Pump And Rubber Sleeve Off Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

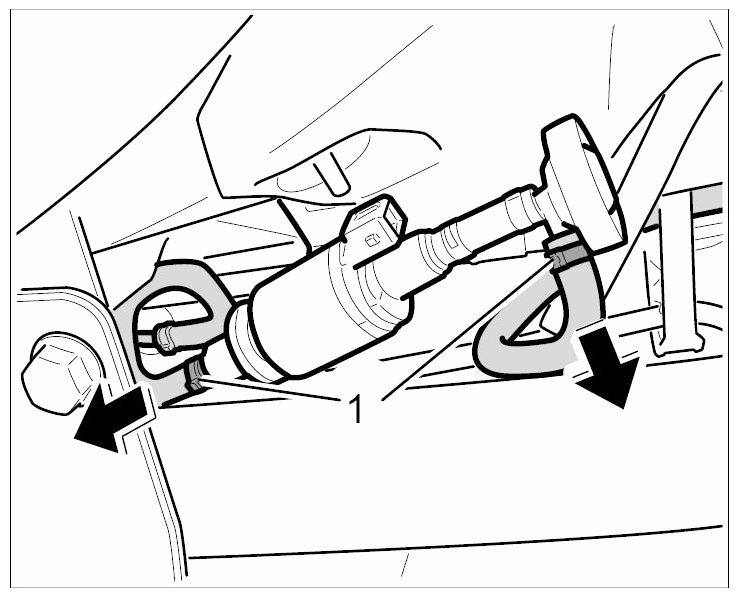

Release hose clamps -1- and pull the fuel lines off the fuel pump -arrows- .

Fig 4: Pulling Fuel Lines Off Fuel Pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
