Installing Fuel Pump

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Slide new hose clamps onto the fuel lines, slide fuel lines onto the fuel pump -arrows- and secure using the new hose clamps.

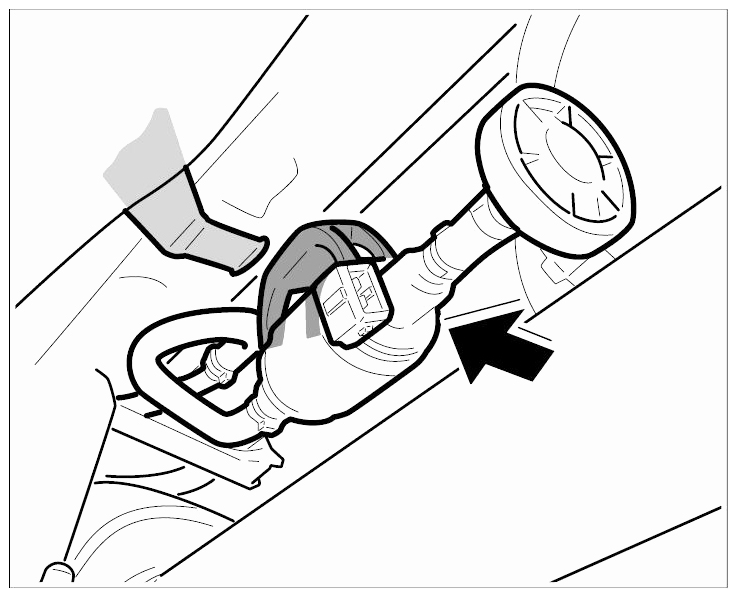

Fig 1: Sliding Fuel Lines Onto Fuel Pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Slide fuel pump together with the rubber sleeve onto the holder -arrow- .

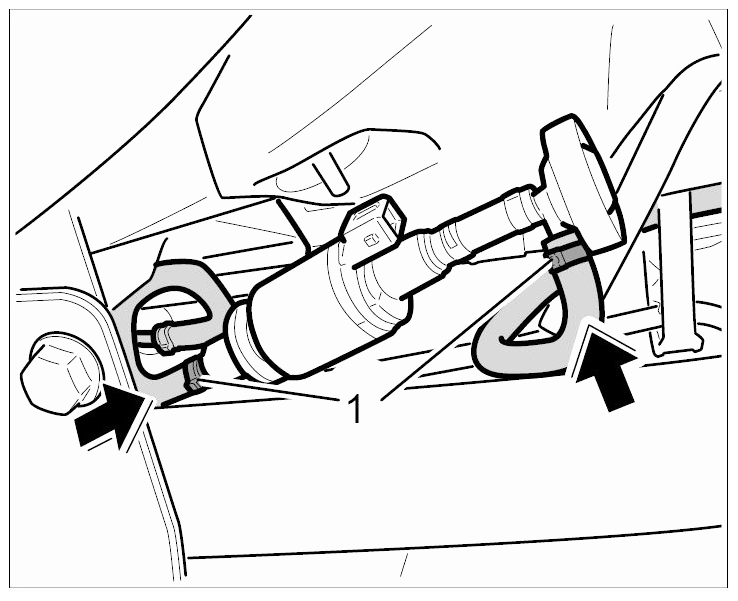

Fig 2: Sliding Fuel Pump And Rubber Sleeve Onto Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in connector on the fuel pump -arrow- until the connector engages securely.

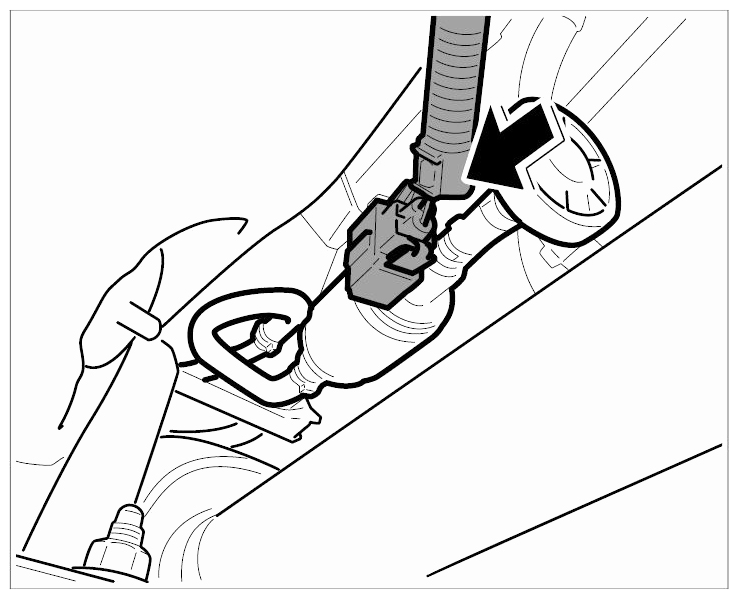

Fig 3: Installing Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
