Removing Housing With Heat Exchanger

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

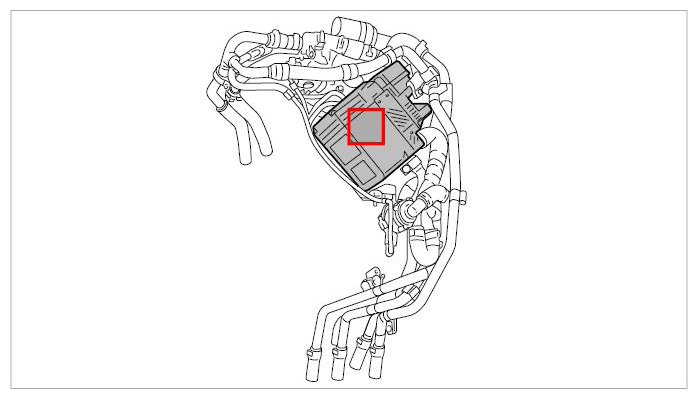

Fig 1: Overview Of Housing And Heat Exchanger
G09414250Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Mark the exact installation position of the line in the clip with strips of adhesive tape -arrows A-  .

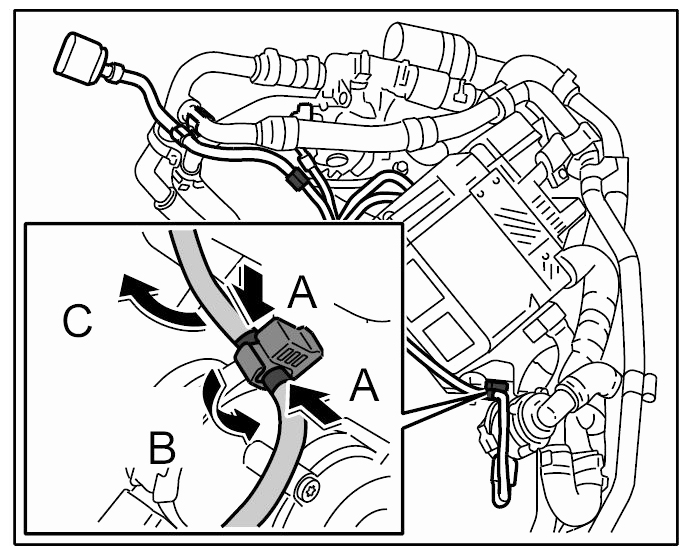

    Fig 2: Marking Installation Position Of Line In Clip
    G09414251Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Open the clip -arrow B-  , take the line out of the clip -arrow C-  and place aside to the rear.
  3. Loosen spring band clamp using assembly pliers for spring band clamps, Cayenne hose connections Nr.72-1 -a- (-arrows A-)  and slide it off the adapter -arrow B-  .

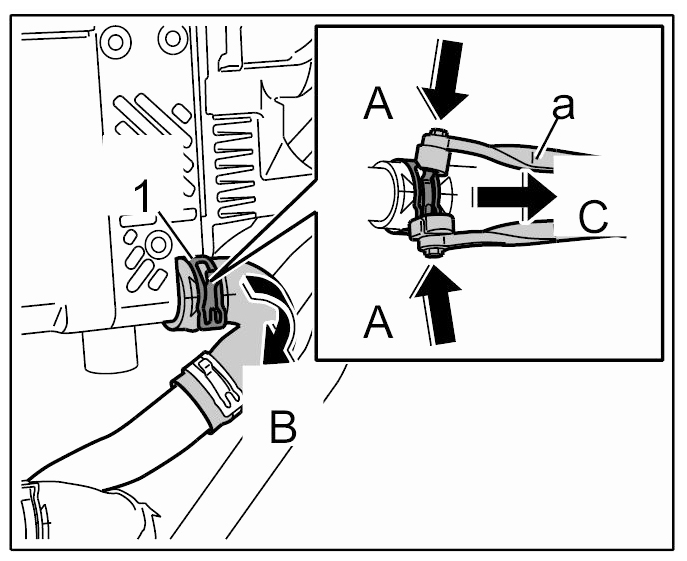

    Fig 3: Releasing Spring Band Clamp
    G09414252Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Pull down moulded hose from housing -arrow C-  .
  5. Release the hose clamp -b-  and pull out the fuel line from the housing -arrow A-  .

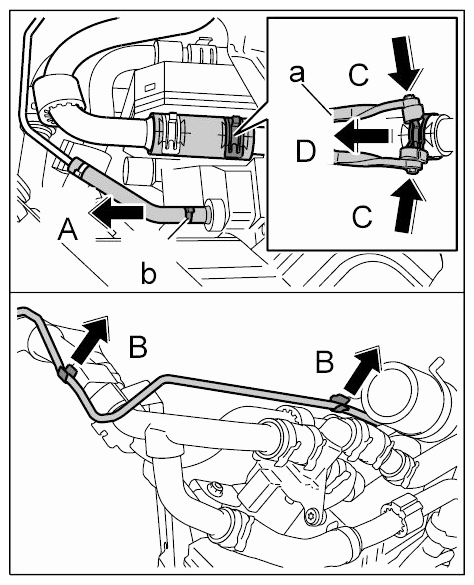

    Fig 4: Releasing Hose Clamp
    G09414253Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Unclip the fuel line -arrows B-  .
  7. Loosen spring band clamp using assembly pliers for spring band clamps, Cayenne hose connections Nr.72-1 -a- (-arrows C-)  and slide it off the adapter -arrow D-  .
  8. Unscrew fastening screws -arrows 3-  .

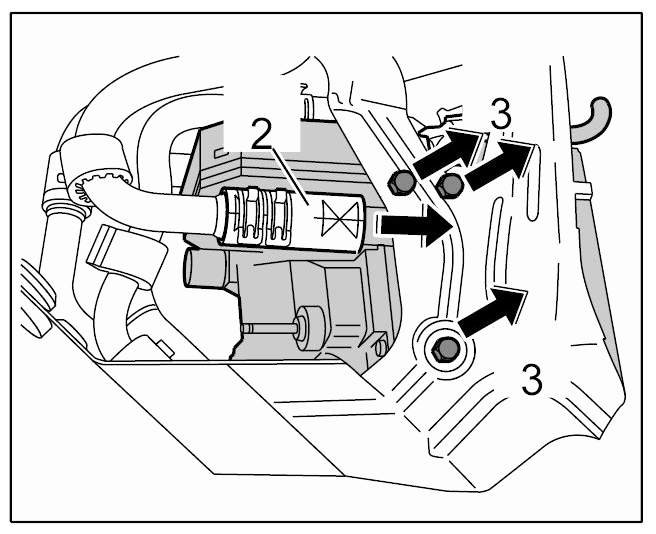

    Fig 5: Unscrewing Fastening Screws
    G09414254Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Pull out the housing out of the inner hose -2-  and take out to the front.
  10. Release inner connector -1- (-arrow A-)  and pull it off -arrow B-  .

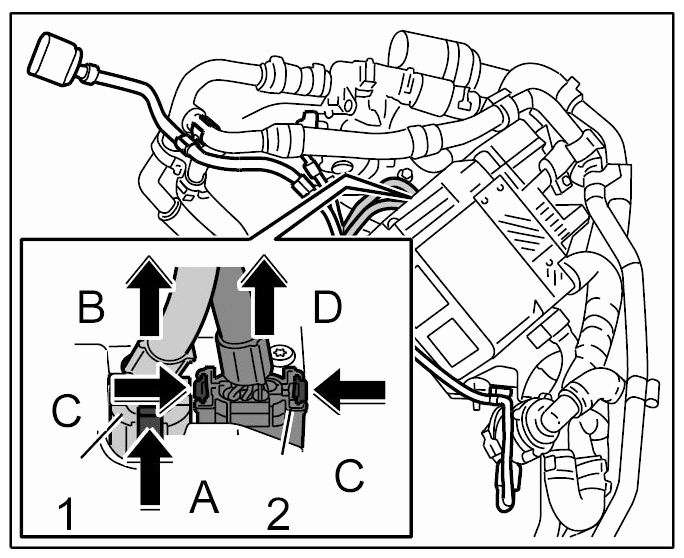

    Fig 6: Removing Inner Connector
    G09414255Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  11. Release outer connector -2- (-arrows C-)  and pull off -arrow D-  .
