Installing Holder For Heater

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

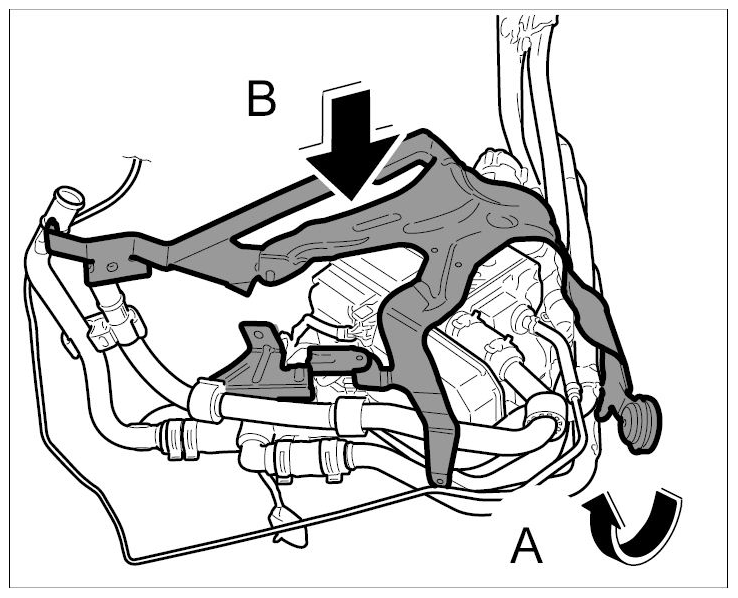

Insert holder for heater over the water tubes -arrow A- and place in installation position -arrow B- .

Fig 1: Inserting Heater Holder In Installation Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

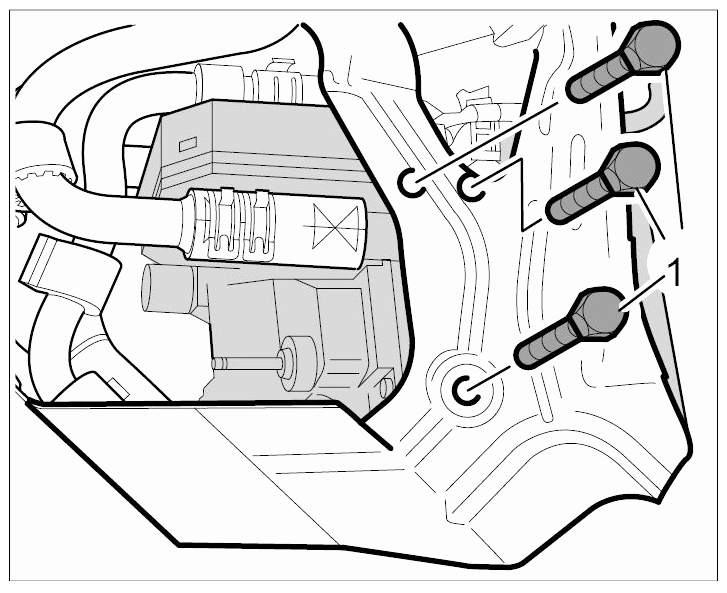

Position heater on holder and screw down with the fastening screws -1-. → Tightening torque: 8 Nm (6 ftlb.)

Fig 2: Identifying Heater Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

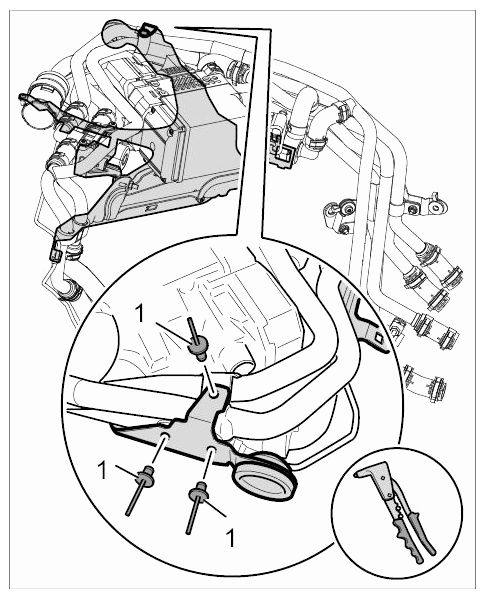

Position water tubes on holder and secure with new blind rivets -1- (4.8 x 10).

Fig 3: Positioning Water Tube On Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

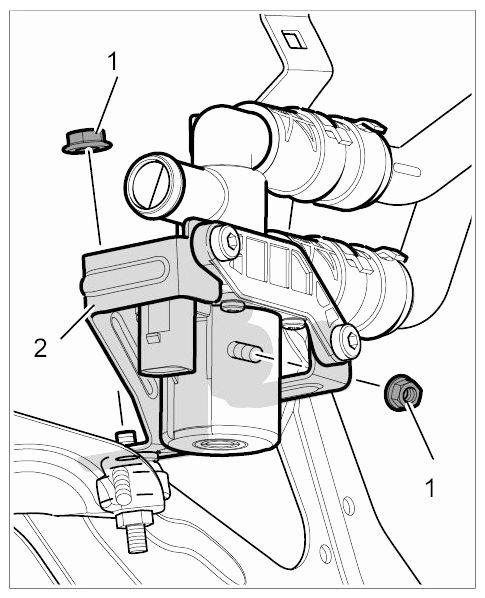

Position directional-control valve holder -2- and screw down using the two fastening nuts -1-. → Tightening torque: 6 Nm (4.5 ftlb.)

Fig 4: Securing Directional-Control Valve Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure circulating pump.

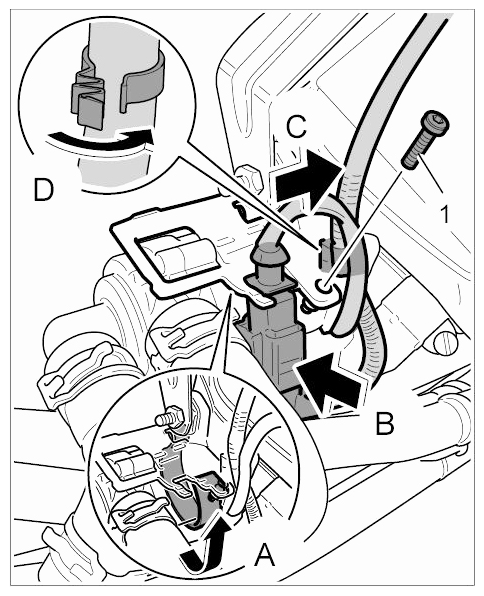

1. 5.1. Close clamp -arrow A- and screw down using the fastening screw -1-. → Tightening torque: 6 Nm (4.5 ftlb.)
2. 5.2. Slide plug connection onto holder -arrow B- .
  Information

  Ensure correct line routing!
3. 5.3. Insert line into line bracket -arrow C- and close line bracket -arrow D- .

  Fig 5: Securing Circulating Pump
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

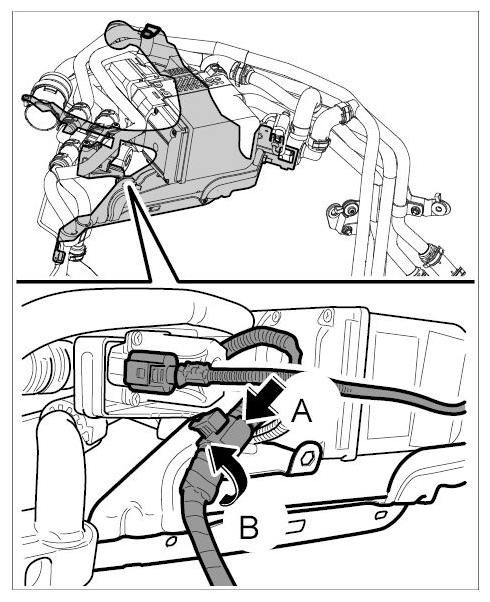

Insert wire harness into line bracket -arrow A- and close line bracket -arrow B- .

Fig 6: Securing Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

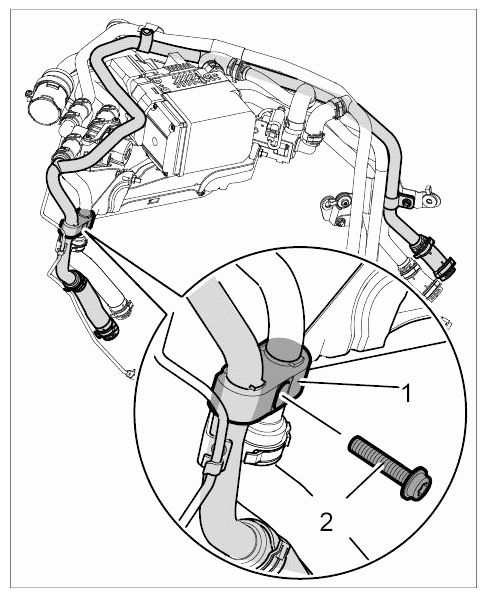

Push water tube holder -1- onto the two water tubes and screw down using the fastening screw -2- . → Tightening torque: 3 Nm (2 ftlb.)

Fig 7: Identifying Water Tube Holder Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

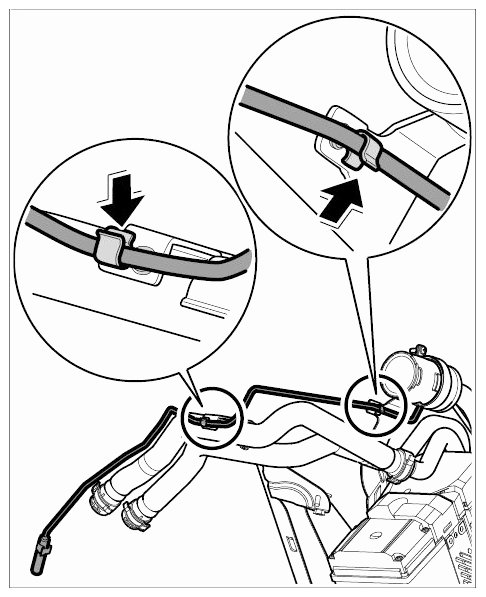

Position fuel line and clip in at the two holders -arrows- .
