Removing Intake Muffler With Intake Manifold

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew fastening screw -1-  .

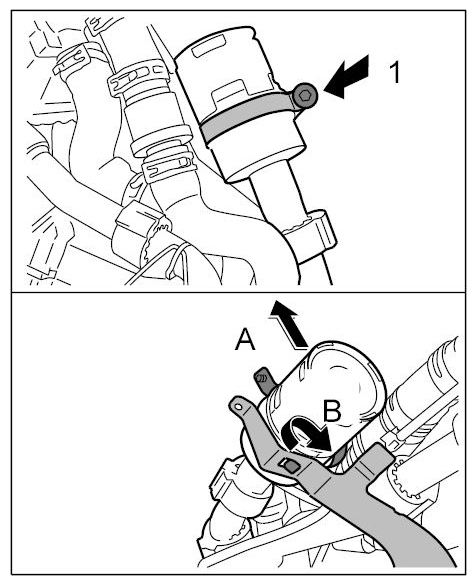

    Fig 1: Removing Intake Muffler And Intake Manifold
    G09414227Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Press the intake muffler upwards slightly -Arrow A-  and detach the fastening clamp -Arrow B-  .
  3. Undo the fastening screw -Arrow 2-  and take out the intake muffler with the clamp -Arrow-  .

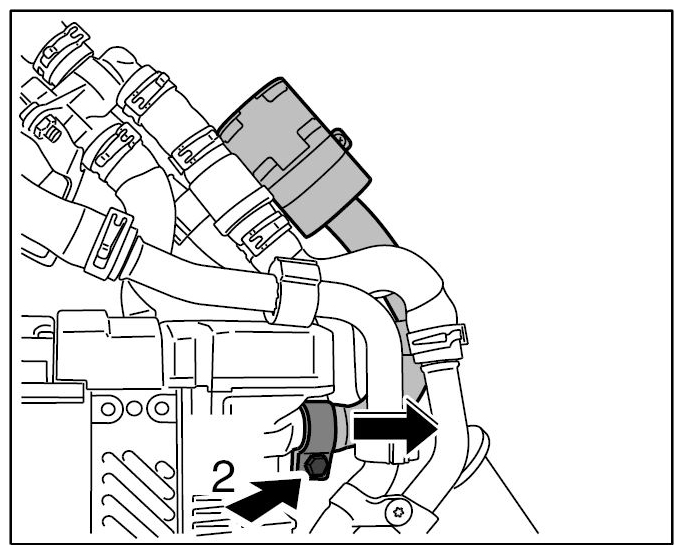

    Fig 2: Unscrewing Intake Manifold Fastening Screw
    G09414228Courtesy of PORSCHE CARS NORTH AMERICA, INC.
