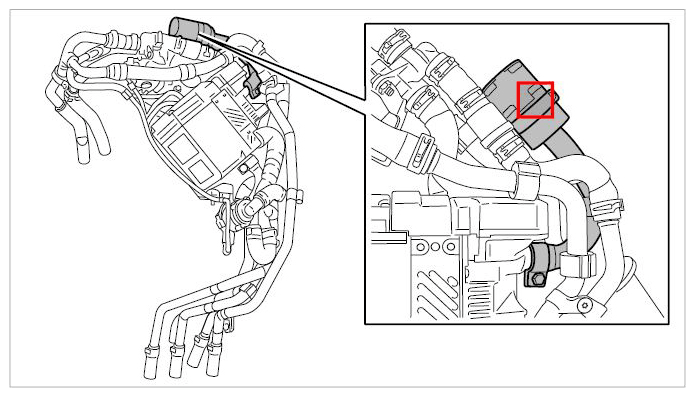

Fig 1: Identifying Intake Muffler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

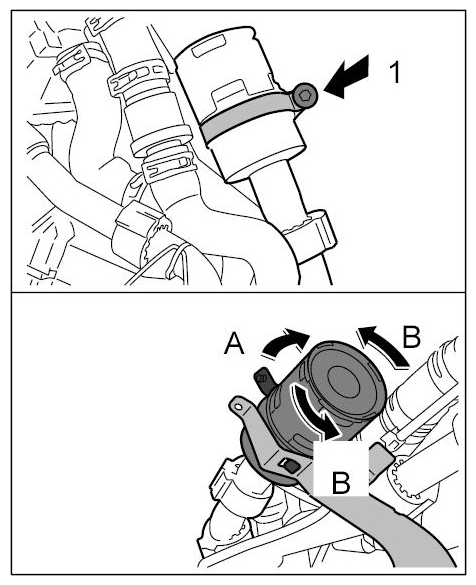

Unscrew fastening screw -Arrow 1-
.
Fig 2: Removing Intake Muffler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Open the fastening clamp -Arrow A-
and unscrew the intake muffler -Arrows B-
.
