Insert the intake muffler in the intake manifold and tighten -Arrows-
.

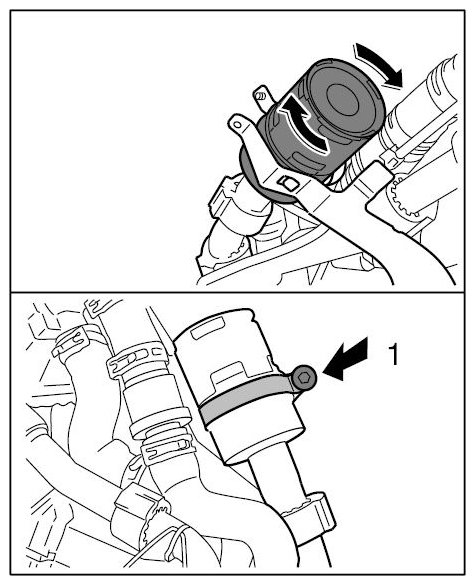

Fig 1: Inserting Intake Muffler Into Intake Manifold
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close the fastening clamp and tighten the fastening screw -Arrow 1-
to the holder. → Tightening torque: 1.5 ftlb.
