Installing Intake Muffler With Intake Manifold

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push the intake muffler onto the flange on the heater -Arrow A-  .

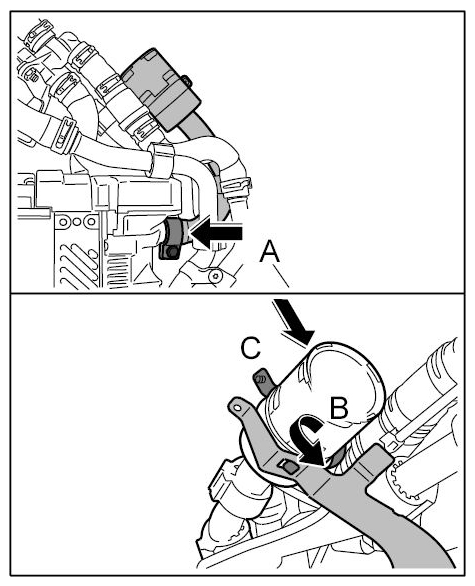

    Fig 1: Pushing Intake Muffler Onto Heater Flange
    G09414230Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Engage the fastening clamp on the holder -Arrow B-  and position the intake muffler in the installation position -Arrow C-  .
  3. Secure the intake muffler on the holder with the fastening screw -Arrow 1-  . → Tightening torque: 1.5 ftlb.

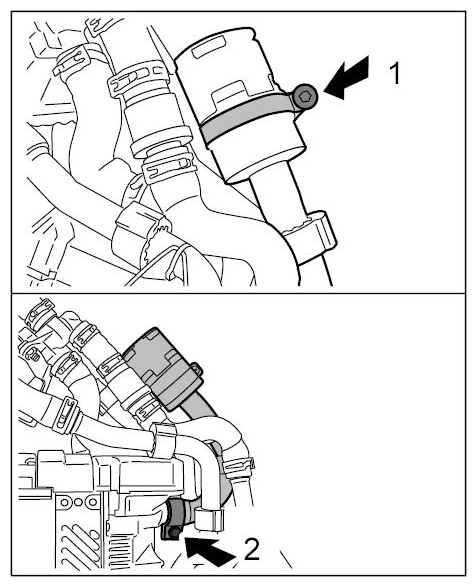

    Fig 2: Locating Intake Muffler Screws
    G09414231Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Secure the intake muffler with the fastening screw -Arrow 2-  on heater.
