Switching The Auxiliary Heater On And Off

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Highly inflammable or explosive materials

Danger of fire or explosion

→ Do not operate the auxiliary heater in closed rooms.

→ Turn off the auxiliary heater before re-fuelling the vehicle.

Information

The auxiliary heater is ready for operation even with the ignition switched off.
The auxiliary heater will operate for 30 minutes. This cannot be changed.

Information

The combustion chamber of the auxiliary heater is cleaned after it is switched off. Given this, wait at least 2 minutes before switching the auxiliary heater on again using the ON/OFF button.

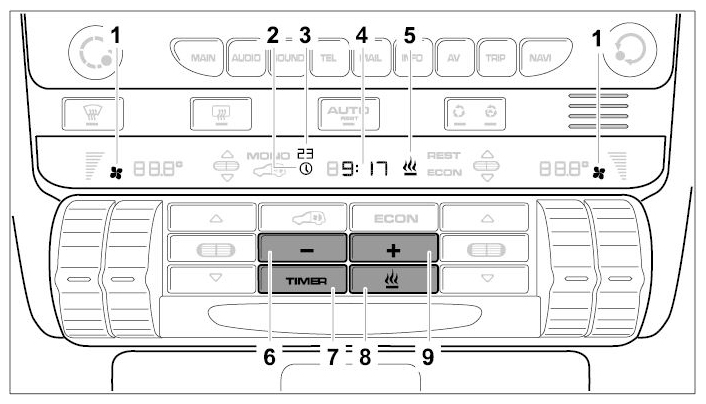

Fig 1: Overview Of Auxiliary Heater Timer

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1 - Auxiliary ventilation symbol

2 - ON time symbol

3 - Memory location symbol

4 - ON time

5 - Auxiliary heater symbol

6 - - button

7 - Timer button

8 - On/Off button

9 - + button

Switch auxiliary heater on. To do this, press the ON/OFF button -8- .
Switch auxiliary heater off. To do this, press the ON/OFF button -8- again.
