Adjusting The On Times

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The auxiliary heater has 3 independent memory locations. Thus 3 different ON times can be programmed for auxiliary heating or auxiliary ventilation.
But only one memory location can be activated.
The time at which heating or ventilation begins can be pre-set precisely to any time from one minute up to 24 hours.
The pre-selected ON time only remains effective for 24 hours.

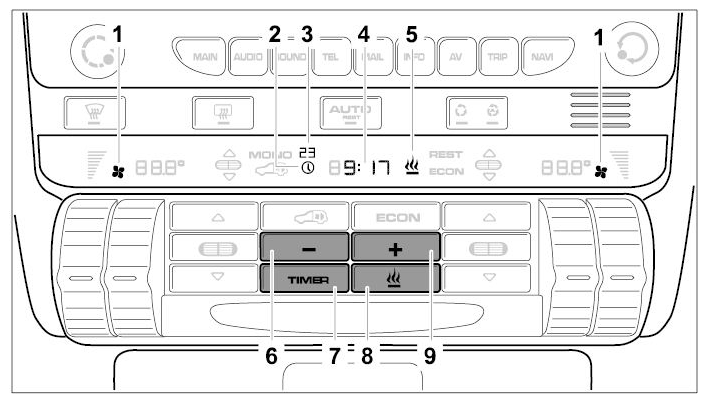

Fig 1: Overview Of Auxiliary Heater Timer
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1 - Auxiliary ventilation symbol

2 - ON time symbol

3 - Memory location symbol

4 - ON time

5 - Auxiliary heater symbol

6 - - button

7 - Timer button

8 - On/Off button

9 - + button

Switch off the ignition.
Adjust operation of the auxiliary heating/ventilation. →
Select a memory location. To do this, press the memory location TIMER button -7- within 10 seconds after adjusting auxiliary heating/ventilation.
Adjust the ON times. To do this, adjust the ON time using the + and - buttons. Pressing the buttons will adjust the ON time by minutes. Holding down the button adjusts the time faster.
Save the ON time. To do this, press the ON/OFF button. The programmed ON time is displayed for approx. 2 minutes in the display.
Program additional ON times. To do this, repeat steps 1 - 5.
