Teaching Remote Control

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The remote control for the auxiliary heater can only be taught using the Porsche System Tester.
A maximum of 3 remote controls can be taught per vehicle.
Switching from Heating to Fan can only be set on the control module. The pre-set mode is started by actuating the remote control.

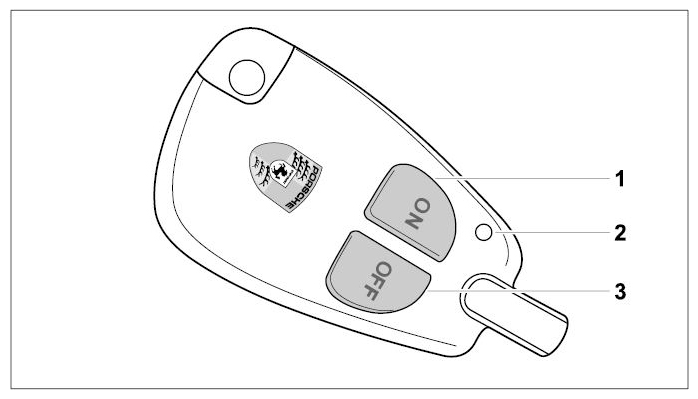

Fig 1: Overview Of Auxiliary Heater Remote Control

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1 - ON button

2 - LED

3 - OFF button

PIWIS Tester 9718 must be connected to the vehicle, then start the System Tester. Switch on ignition. Press [>>] to continue.
Select the vehicle type.
Select the auxiliary heating control unit and press [>>].
Select Teach remote control menu, press [>>] and follow the instructions on the System Tester.
After the SEND message appears, press the [OFF] button -3- on the remote control within 5 seconds until the "saved" message appears. The remote control is now taught.
To teach other remote controls, repeat the process.
Carry out a function test on the remote control and then read out the fault memory.
PIWIS Tester 9718 must now be disconnected from the vehicle.
