Removing Receiver For Auxiliary Heater

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

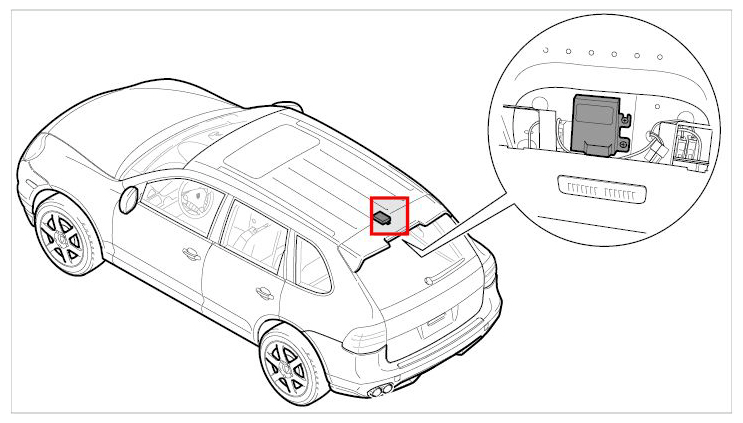

Fig 1: Identifying Installation Position Of Auxiliary Heater Receiver

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

Unscrew the two fastening screws -1- (-arrows-) .

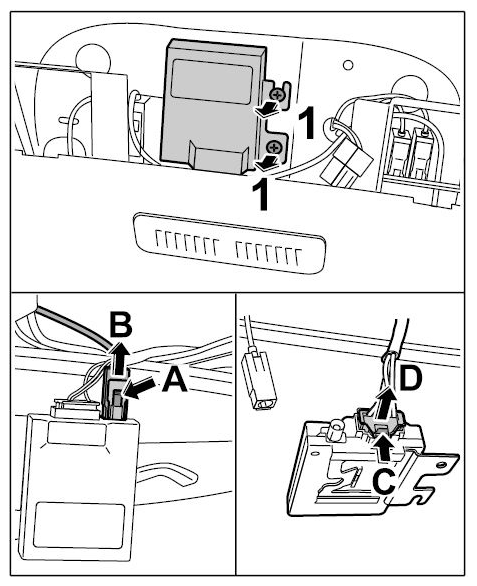

Fig 2: Removing Auxiliary Heater Receiver
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release antenna connector on the receiver for the auxiliary heater -arrow A- and pull it off -arrow B- .
Release connector on the receiver for the auxiliary heater -arrow C- and pull it off -arrow D- .
