Installing Receiver For Auxiliary Heater

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Plug in antenna connector on the receiver for the auxiliary heater -arrow A-  until the connector -arrow B-  engages securely.

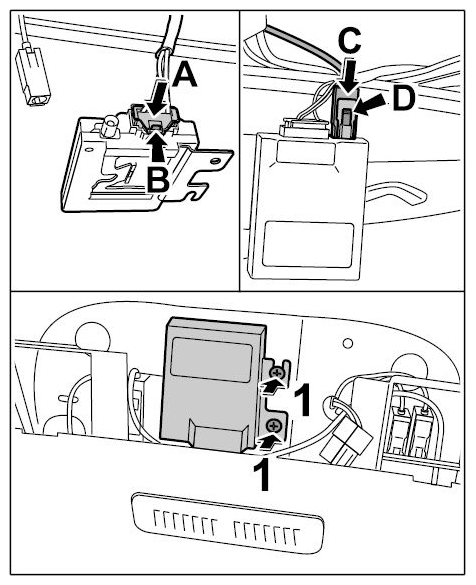

    Fig 1: Installing Auxiliary Heater Receiver
    G09414195Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Plug in connector on the receiver for the auxiliary heater -arrow C-  until the locking lug -arrow D-  engages securely.
  3. Secure receiver for auxiliary heater with the fastening screws -1-  .
