Removing Light-Emitting Diode For Alarm System

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

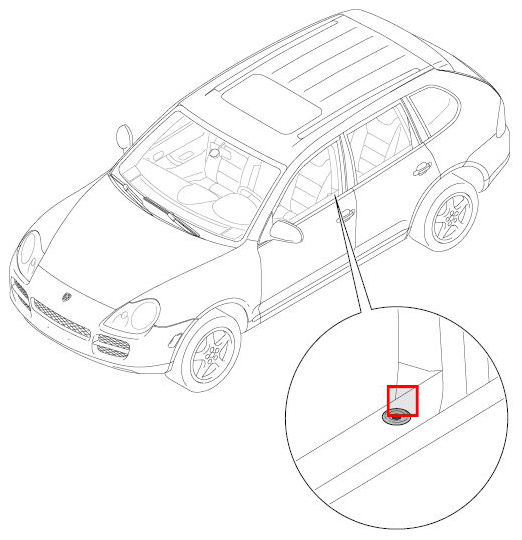

Fig 1: Overview Of Light-Emitting Diode For Alarm System
G09415658Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release light-emitting diode -Arrows A-  and pull it down and off -Arrow B-  .

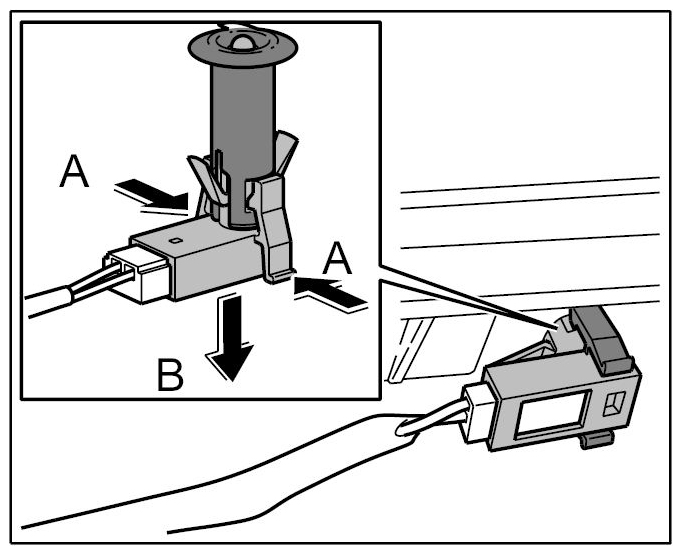

    Fig 2: Removing Light-Emitting Diode
    G09415659Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release -Arrow A-  and pull off -Arrow B-  plug.

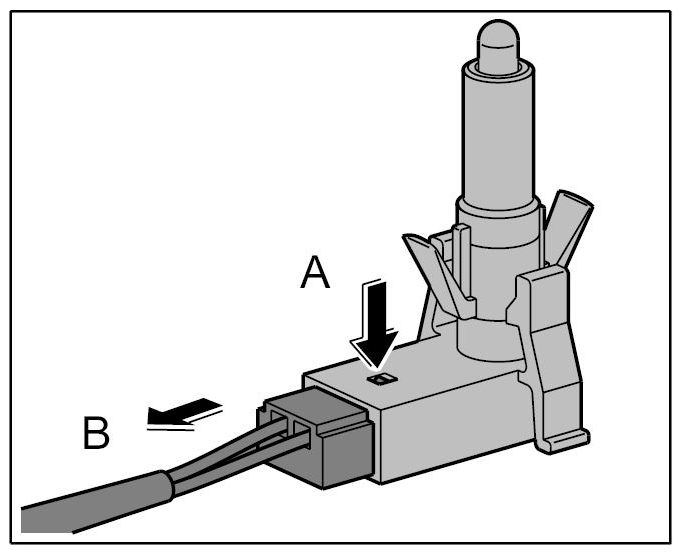

    Fig 3: Unplugging Light-Emitting Diode
    G09415660Courtesy of PORSCHE CARS NORTH AMERICA, INC.
