Installing Light-Emitting Diode For Alarm System

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Plug in the light-emitting diode connector -Arrow A-  until the locking tab -Arrow B-  is felt to engage.

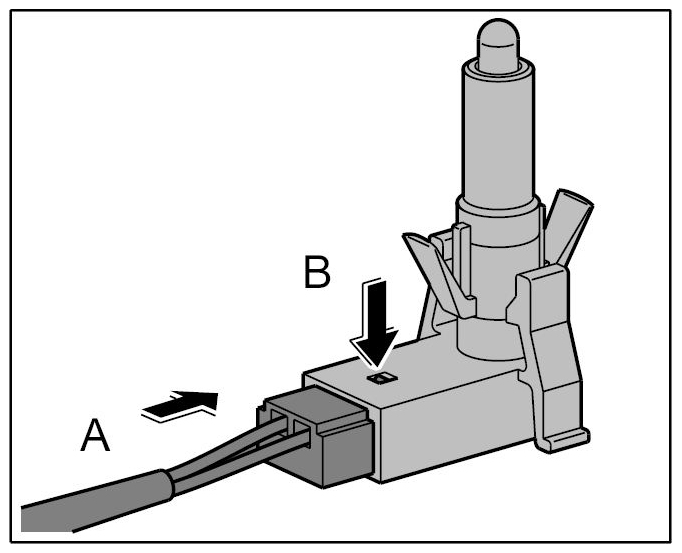

    Fig 1: Inserting Light-Emitting Diode
    G09415661Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Press light-emitting diode into the housing -Arrow A-  until the locking tabs are felt to engage -Arrows B-  .

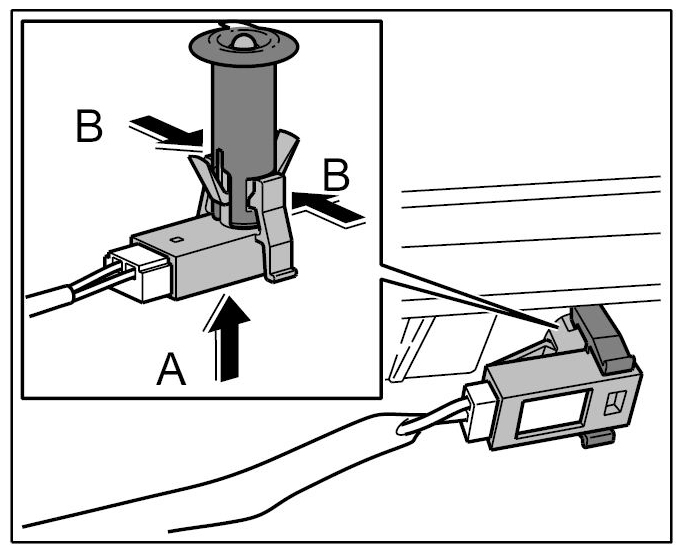

    Fig 2: Installing Light-Emitting Diode
    G09415662Courtesy of PORSCHE CARS NORTH AMERICA, INC.
