Removing Rear Antenna, Centre Console (A)
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
- For vehicles with rear seat heating, remove the shelf together with the regulators for rear seat heating . → WM 742619 REMOVING AND INSTALLING REGULATOR FOR REAR SEAT HEATING
- For vehicles with air-conditioning, remove the control unit for the air-conditioning system . → 884819 REMOVING AND INSTALLING CONTROL UNIT FOR AUXILIARY AIR CONDITIONING SYSTEM

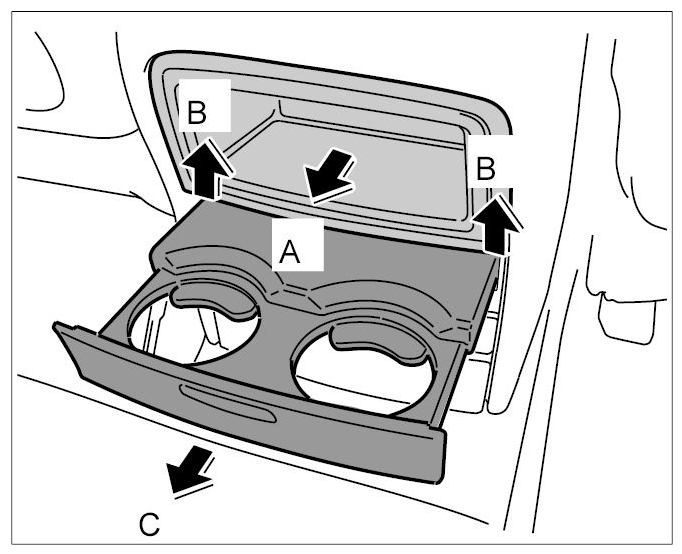

- Pull out shelf or cover -arrow A- .
- Pull out cup holder, lift at rear edge -arrows B- and remove completely over the stop -arrow C- .

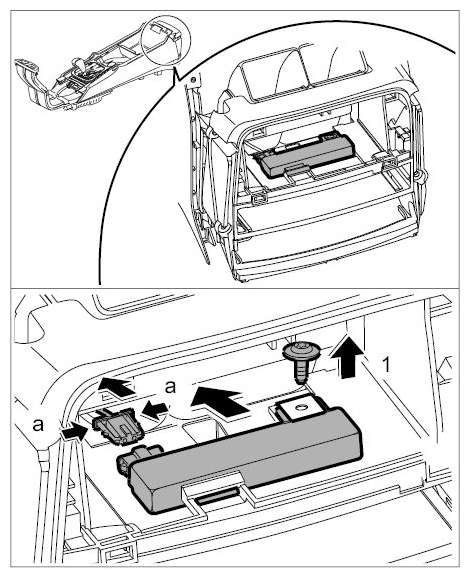

- Unscrew fastening screw -arrow 1- .
- Disengage antenna on centre console, slide forwards and remove.
- Release connector -arrows a- and remove from antenna.
